DWYER 195020-2F DIFFERENTIAL PRESSURE SWITCH
Quick Overview
Manufactured By: DWYER
Manufacturer Part Number: 195020-2F
IMS Product Code: 2136203
Packaging: Sold Individually
Description:

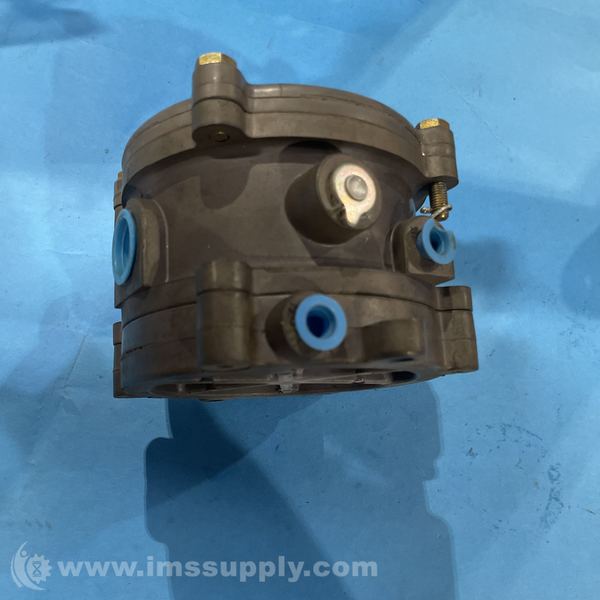

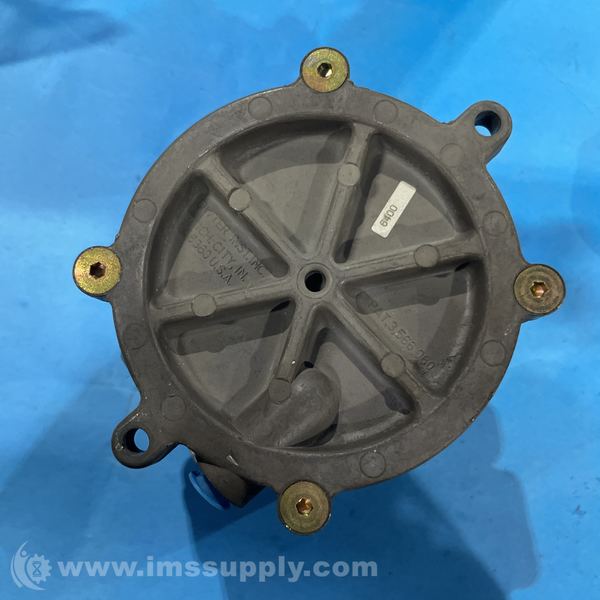

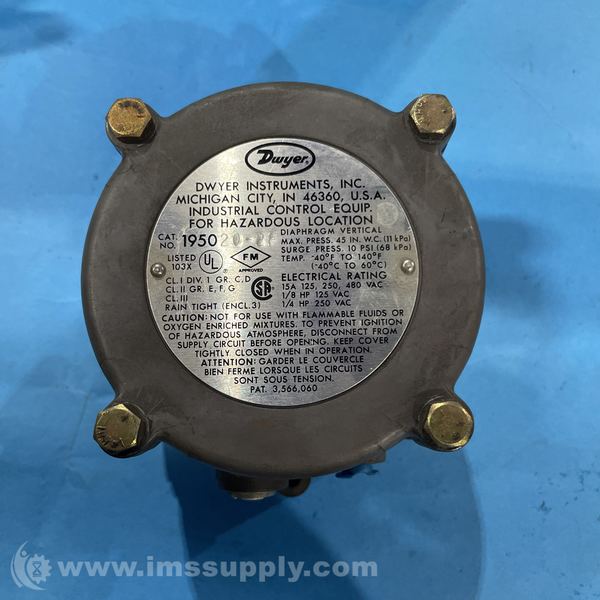

Dwyer 195020-2F Differential Pressure Switch
Explosion-proof differential pressure switch for air and non-combustible gases. SPDT switch output. 4-20" WC operating range.
Specifications
- Series: 1950 Explosion-proof Differential Pressure Switch
- Type: Differential Pressure
- Service: Air and non-combustible; compatible gases
- Temperature Limits: -40 to 140 degrees F (-40 to 60 degrees C)
- Pressure Limits Continuous: 45" WC
- Pressure Limits Surge: 10 PSI
- Enclosure Rating: NEMA 3 (IP54); NEMA 7 and 9
- Switch Type: Single-pole double-throw (SPDT)
- Electrical Rating: 15 A @ 125, 250, 480 VAC
- Process Connections: 1/8" female NPT
- Mounting Orientation: Diaphragm in vertical position
- Agency Approvals: CE; CSA; FM; UL
- Operating Range: 4" to 20" WC
- Deadband at Minimum Setpoint: 0.4
- Deadband at Maximum Setpoint: 0.6
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
