DWYER TTE-106-W TEMPERATURE TRANSMITTER
Quick Overview
Manufactured By: DWYER
Manufacturer Part Number: TTE-106-W
IMS Product Code: 2127779
Packaging: Sold Individually
Description:

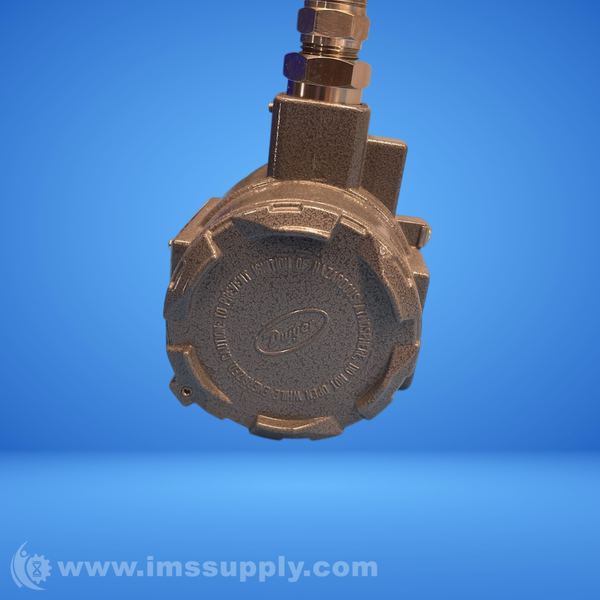

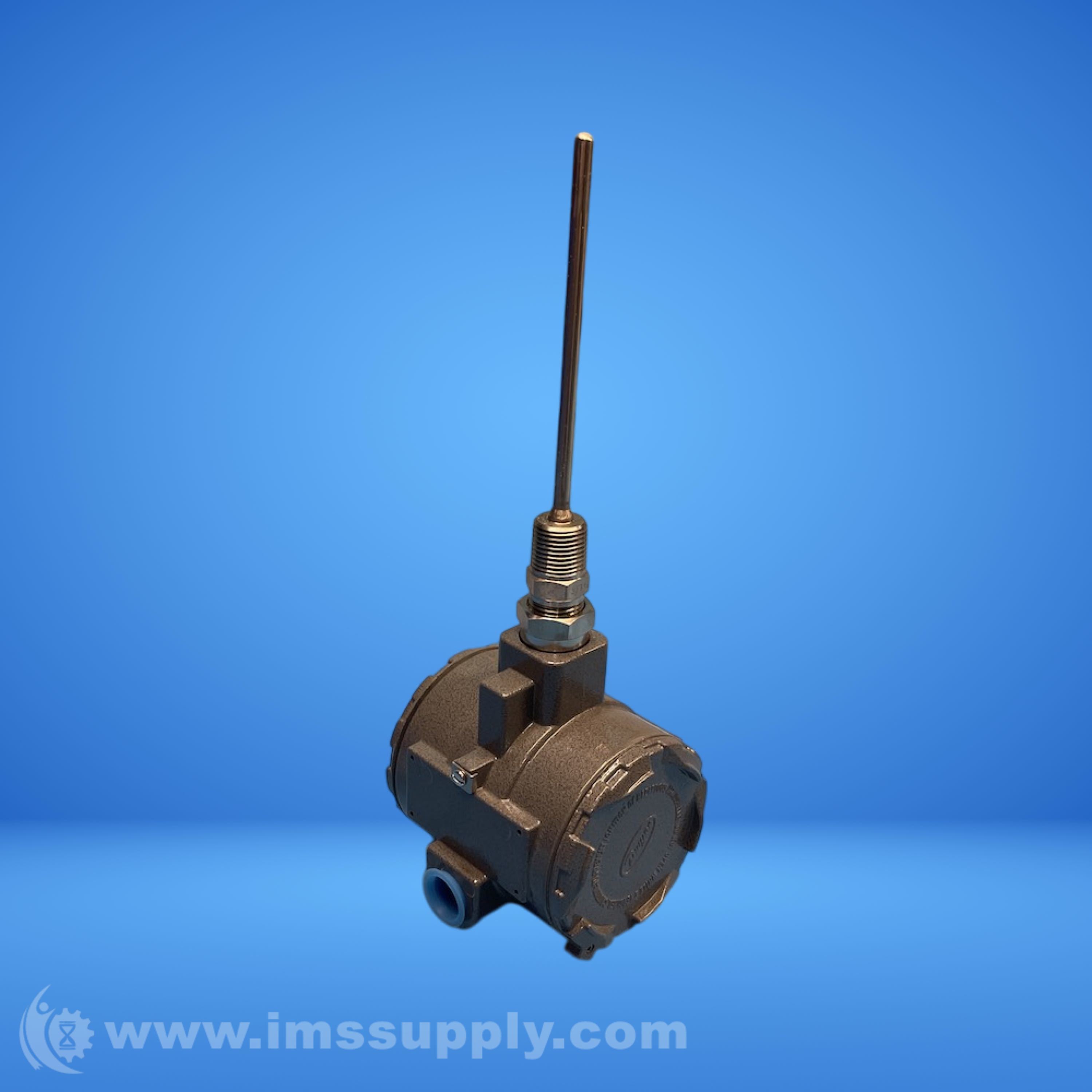

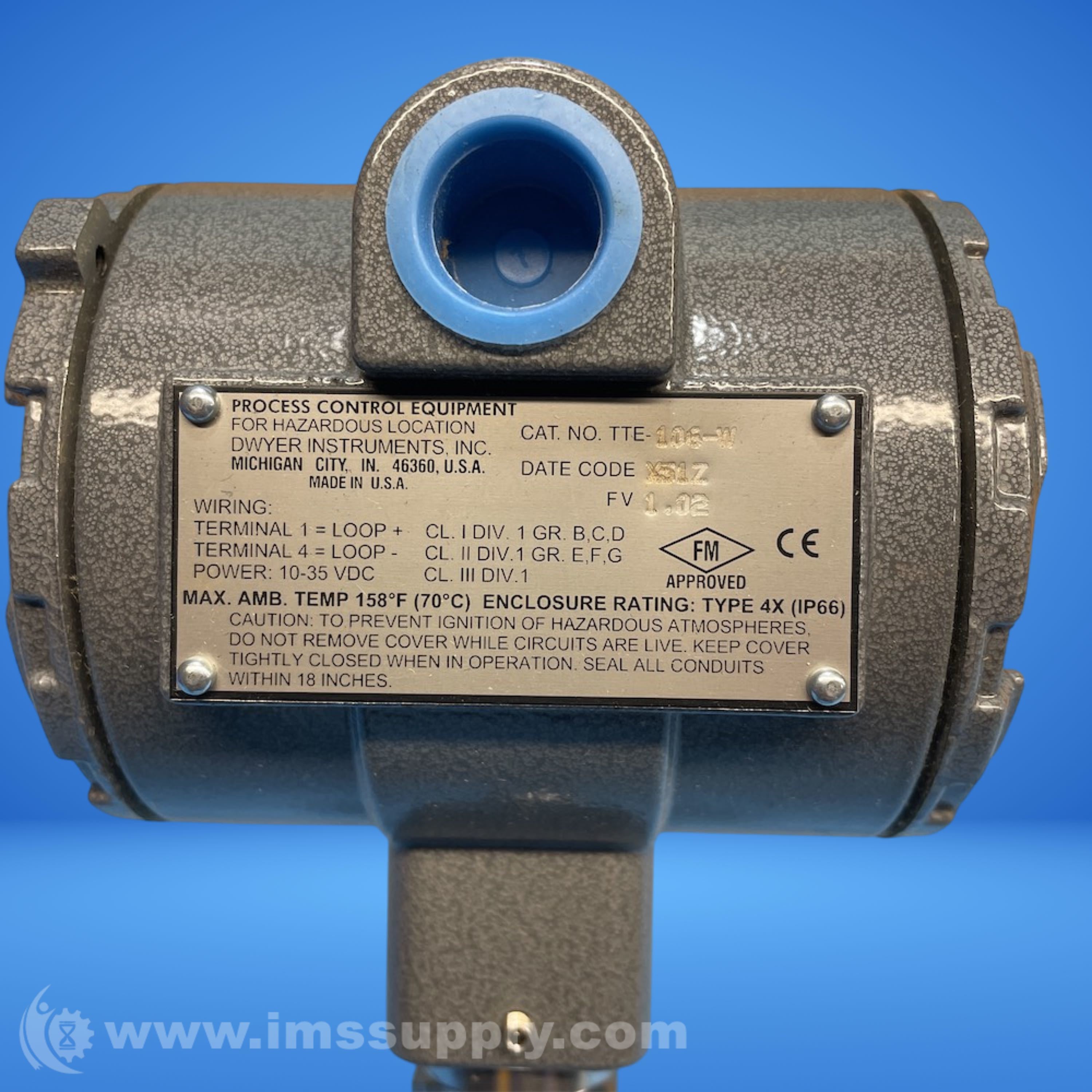

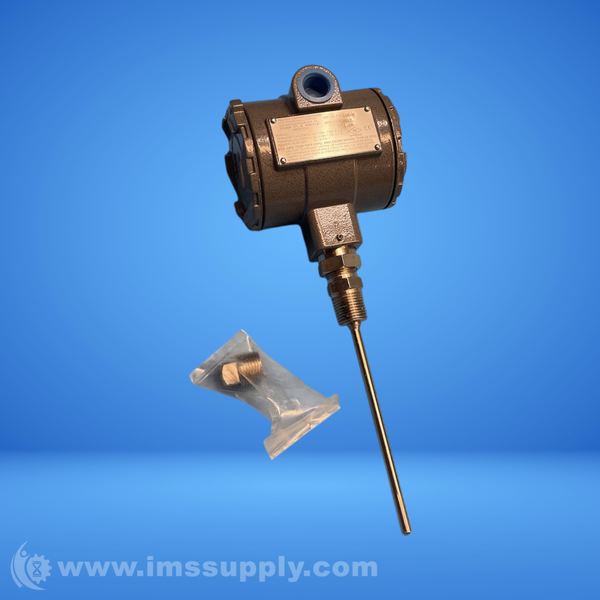

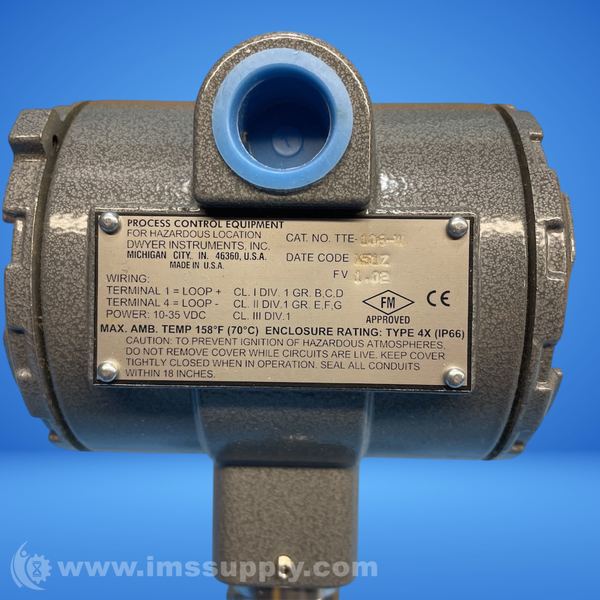

Dwyer TTE-106-W Temperature Transmitter
Explosion-Proof RTD Temperature Transmitter for Thermowells with 4-20 mA Output and 6-inch Probe Length
Specifications
- Measurement: 6 in
- Range: -30 to 240 °F
- Type: RTD
- Is FM: true
- Enclosure Rating: NEMA 4X
- Process Variable: Temperature
- Supply Voltage: 10-35 VDC
- Accuracy: ±0.1 of span
- Rangeability: -30° to 250°F (-34° to 121°C) with minimum span of 40°F (4.4°C); factory set at 40° to 90°F (4.4° to 32°C)
- Output Signal: 4-20 mA @ 700 O
- Mounting: Mounting hardware pipe/wall (A-287)
- Operating Temperature: Ambient: 0° to 158°F (-18° to 70°C)
- Probe Material: 315 Stainless steel
- Pressure: 2000 psi (13,789 kPa)
- Dimensions: 4.24" H x 3.9" W x 10.4" D (10.8 x 9.9 x 26.9 cm)
- Process Connection: 1/2" MNPT
- Weight: not to exceed 3.1 lb (1.4 Kg)
- Approvals: CE, FM
- Output: 4-20 mA
- Probe Length: 6 "
- Function: Temperature
- Display: No Display

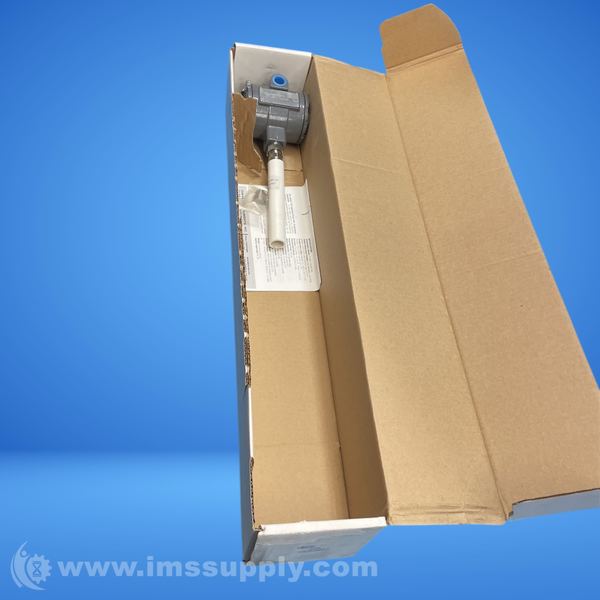

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
