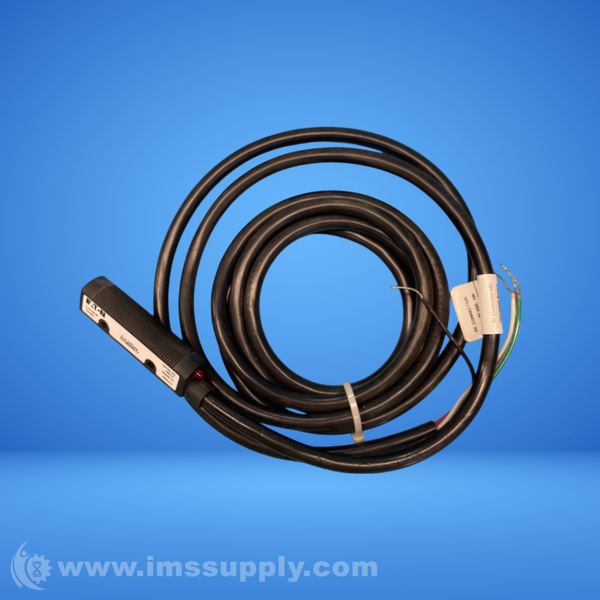

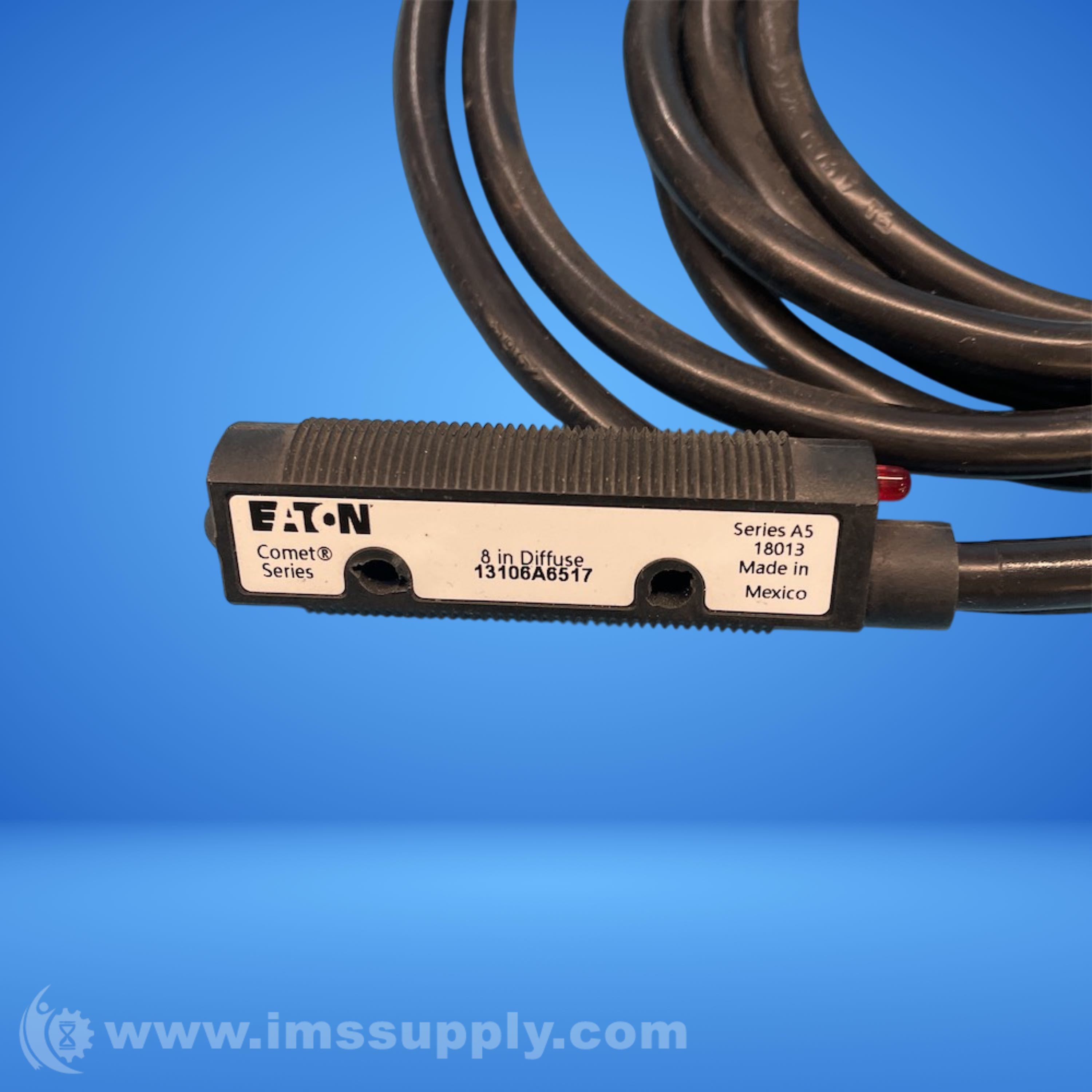

EATON 13106A6517 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: 13106A6517
IMS Product Code: 2125728
Packaging: Sold Individually
Description:
Eaton 13106A6517 Photoelectric Sensor
Diffuse reflective photoelectric sensor with 8 inch sensing range, 10-30V DC voltage, NPN/PNP output configuration, and 6 ft cable connection.
Specifications
- Brand: Eaton
- Type: Photoelectric Diffuse Reflective Sensor
- Sensing Range: 8 in. (200mm)
- Voltage: 10-30V DC
- Output Mode: Light/Dark Operate
- Output Configuration: NPN/PNP

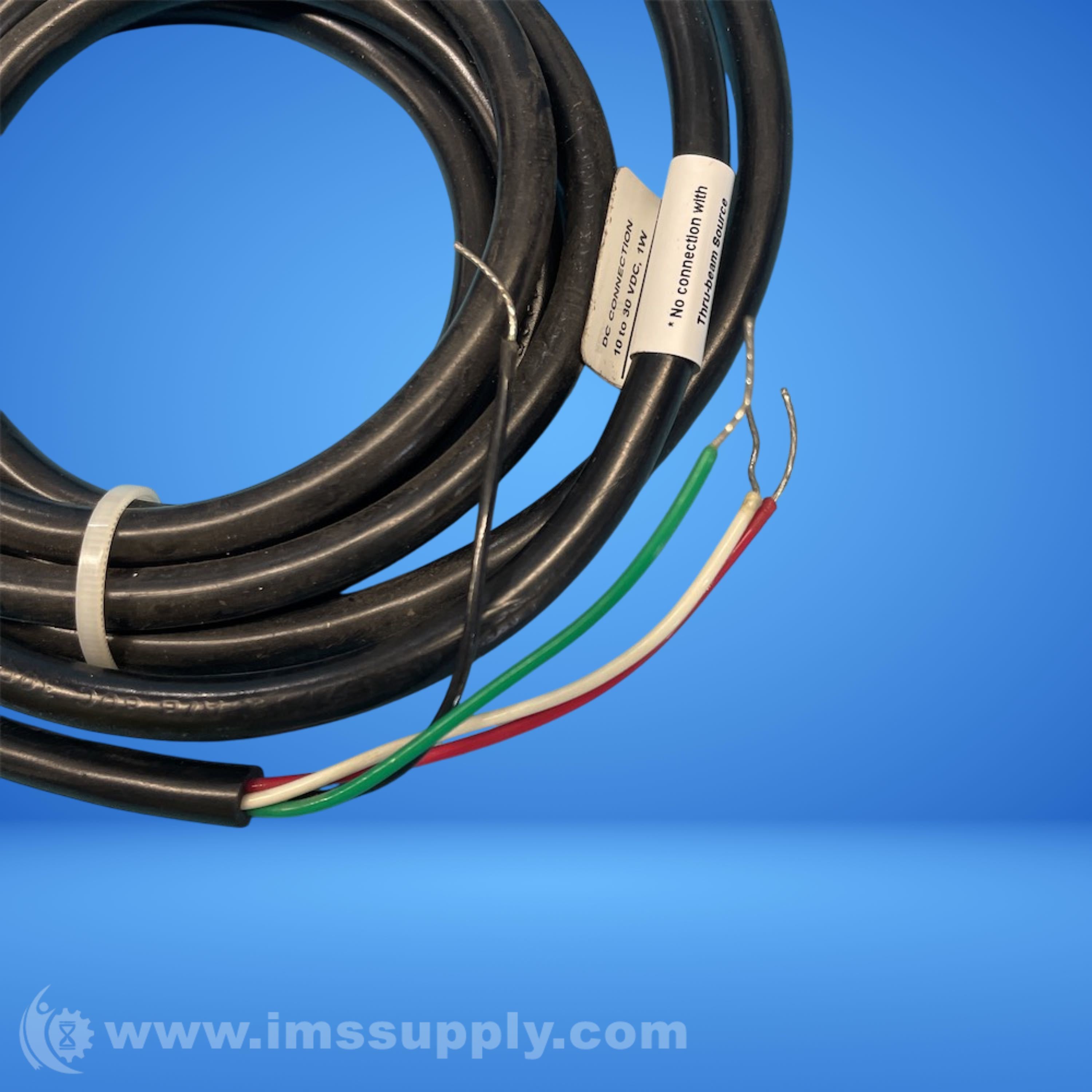

- Connection Type: 6 ft. Cable
- Connection Size: M18x1 Thread fits into 0.75 in. (19.1) Dia. Hole
- Beam Type: Infrared
- Response Time: 1ms
- Enclosure Rating NEMA: NEMA 1, 2, 3, 4, 4X, 6, 6P
- Enclosure Rating IEC: IEC IP69K
- Temperature Rating: -40° to +158°F (-40° to +70°C)
- Beam Configuration: 2 in. (50mm) dia. at 5 in. (127mm)
- Housing Material: Polyurethane
- Diameter: 0.47 in. (11.9mm)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
