EATON 216771 INDICATOR LIGHT FRONT ELEMENT
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: 216771
IMS Product Code: 1901023
Packaging: Sold Individually
Description:

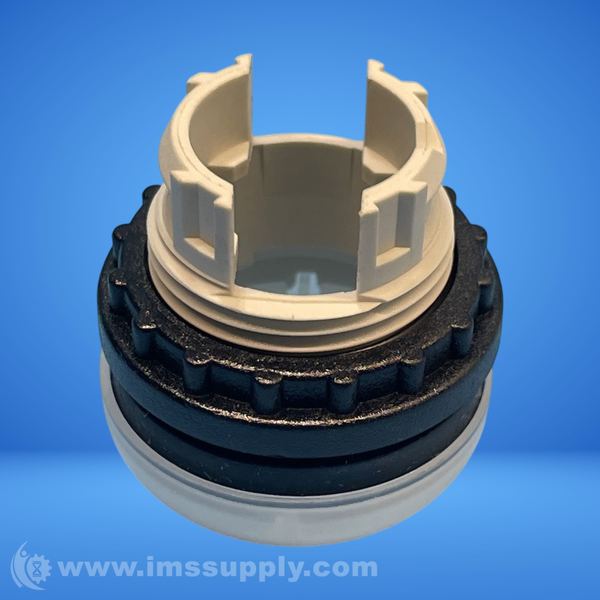

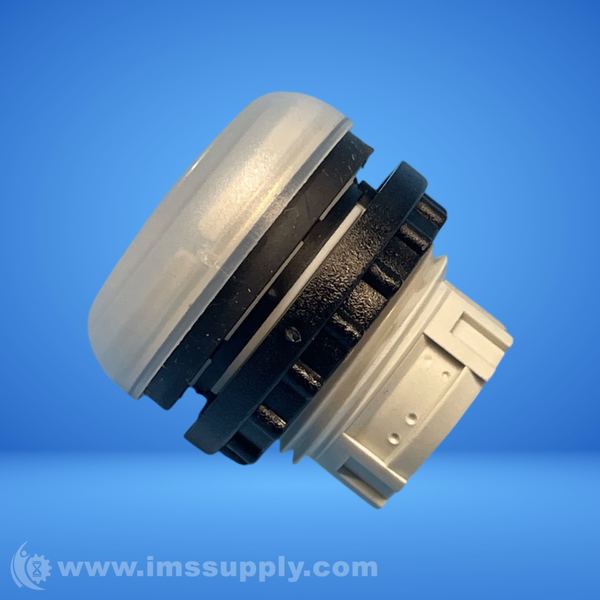

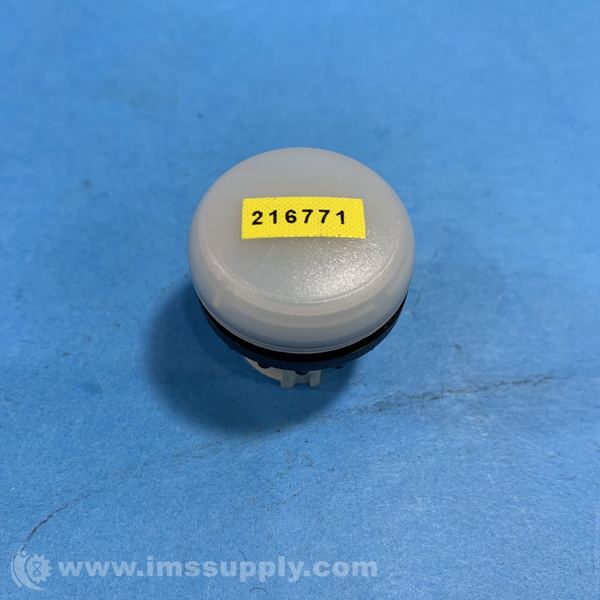

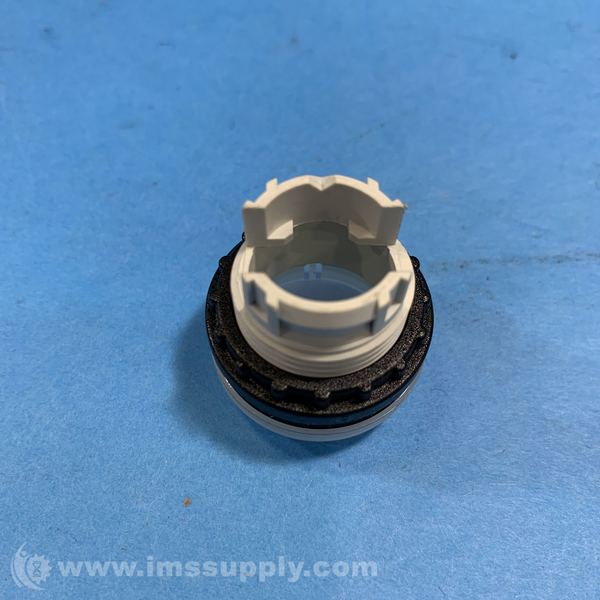

Eaton 216771 Indicator Light Front Element
Eaton front element for indicator light, round, white lens, flat, IP67/IP69K protection, chrome bezel
Specifications
- Colour lens: White
- Construction type lens: Round
- Hole diameter: 22.5 mm
- Type of lens: Flat
- Degree of protection (IP), front side: IP67/IP69K
- Degree of protection (NEMA): 4X, 13
- Height: 0.032 m
- Width: 0.032 m
- Depth: 0.032 m
- Size: front diameter: 29.7 mm
- rated insulation voltage (ui): 250 v
- rated impulse withstand voltage (uimp): 4000 v ac
- Pollution degree: 3
- Overvoltage category: iii
- bezel color: chrome
- lens color: white
- Design: flush
- opening diameter: 22.5 mm
- Shock resistance: 30 g, mechanical, according to iec/en 60068-2-27, sinusoidal shock 11 ms
- lens type: flat round
- opening height: 22.5 mm
- terminal capacity: 0.5 - 1.5 mm˛, stranded 0.5 - 1.5 mm˛, solid
- climatic proofing: damp heat, cyclic, to iec 60068-2-30 damp heat, constant, to iec 60068-2-78
- ambient operating temperature - min: -25 degrees C
- ambient operating temperature - max: 70 degrees C
