EATON XT0B1P6BC1 THERMAL OVERLOAD RELAY
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: XT0B1P6BC1
IMS Product Code: 2136632
Packaging: Sold Individually
Description:

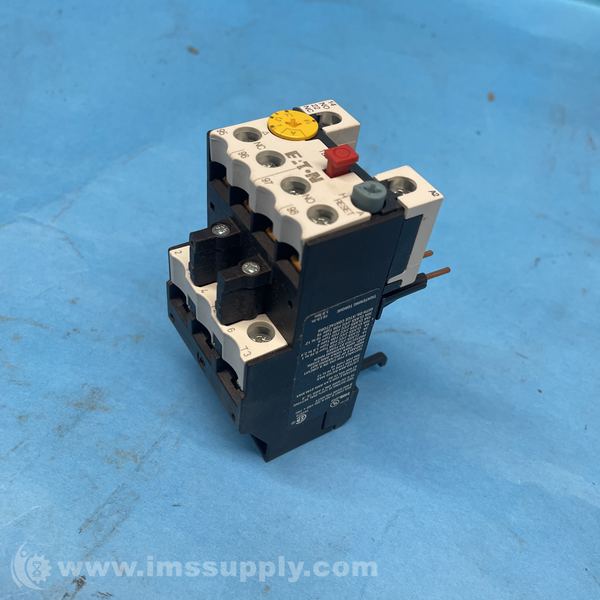

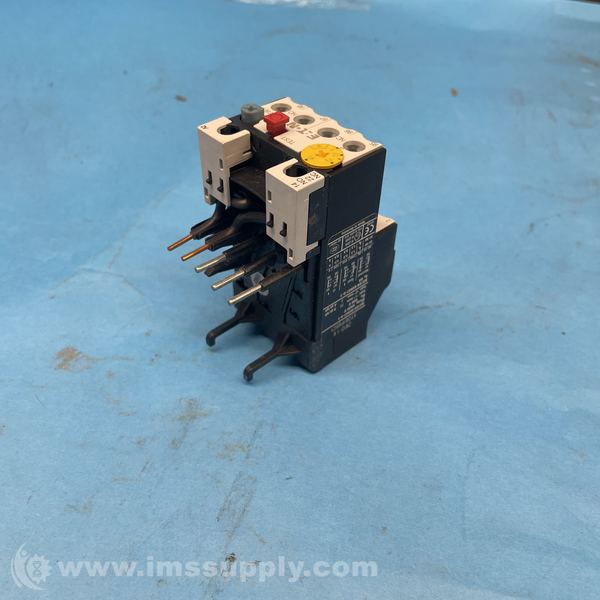

Eaton XT0B1P6BC1 Thermal Overload Relay
Eaton thermal overload relay adjustable from 1 to 1.6 AMPS with 1 N.O. and 1 N.C. auxiliaries, manual and automatic reset, and phase loss protection.
Specifications
- AMP Range: 1 to 1.6 AMPS
- Connects to: XTCE007B / XTCE009B / XTCE012B / XTCE015B
- Auxiliaries: 1 N.O. / 1 N.C.
- Reset: Manual or Automatic
- Trip Class: 10 (10 seconds or less)
- Product Type: Overload Relay
- Terminal Type: Screw
- Contact Rating: 690 Volt AC 6 Amp
- Auxiliary Contact: 1NO-1NC
- Reset Type: Automatic/Manual
- IEC Size: B
- Trip Class: CLASS 10A
- Ambient Temperature: COMPENSATED
- Weight per unit: 0.3 (lbs/each)
- Country of Manufacture: Germany
- Ue: 690V
- Ith: 6A
- Uimp: 6000V
- Current Range: 1-1.6A
- Contacts: 1 N.O. / 1 N.C.
- Overload Range: 1.0-1.6A
- Frame Size: 45 mm
- Contact Configuration: 1NO-1NC
- Mounting: Direct to contactor
- Used With Contactor: 7-15A
- Trip Type: 10A

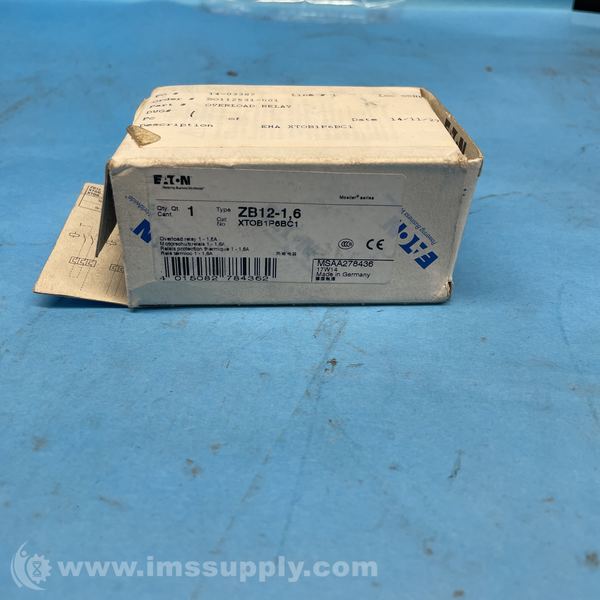

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 49 minutes.
