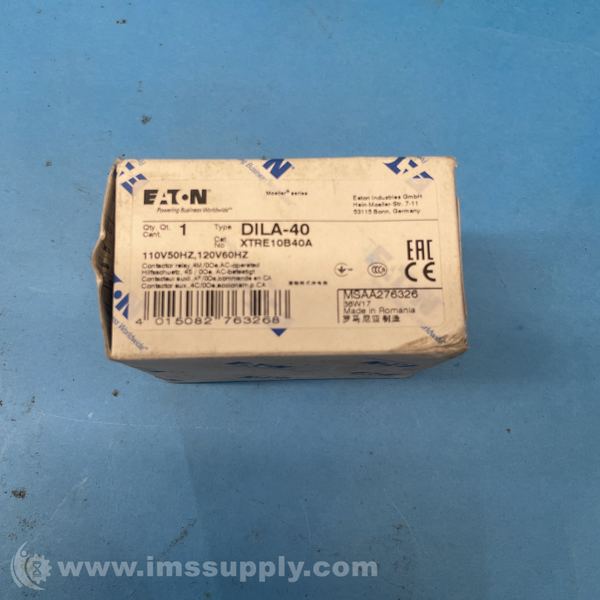

EATON XTRE10B40A 4 POLE CONTROL RELAY
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: XTRE10B40A
IMS Product Code: 2135401
Packaging: Sold Individually
Description:
Eaton XTRE10B40A 4 Pole Control Relay
4 pole IEC rated control relay with 4 normally open contacts and an AC operating coil rated at 110V 50Hz/120V 60Hz. Screw terminals, DIN rail or screw mounting, IP20 enclosure, 10A conventional thermal current rating. Conforms to IEC 60947-5-1.
Specifications
- type: Contactor Relay
- number of poles: 4
- contact configuration: 4NO
- coil voltage: 110V 50Hz, 120V 60Hz
- conventional thermal current rating: 10A
- frame size: 45mm standard
- temperature rating: -25 to 60 degrees C
- enclosure type: IP20
- terminal type: Screw
- mounting type: DIN Rail/Threaded
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 49 minutes.
