ELECTRO CAM EC-3008-10-ALO ELECTRONIC ROTARY CAM SWITCH
Quick Overview
Manufactured By: ELECTRO CAM
Manufacturer Part Number: EC-3008-10-ALO
IMS Product Code: 1896358
Packaging: Sold Individually
Description:

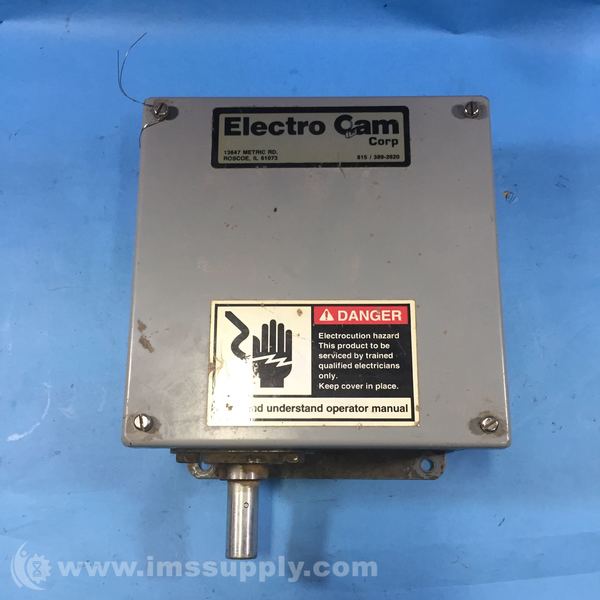

Electro Cam EC-3008-10-ALO Electronic Rotary Cam Switch
Electronic rotary cam switch with 8 outputs, left-hand shaft extension, and 120VAC input. Output modules sold separately.
Specifications
- Input: 120 VAC
- Enclosure: NEMA 12
- Outputs: 8

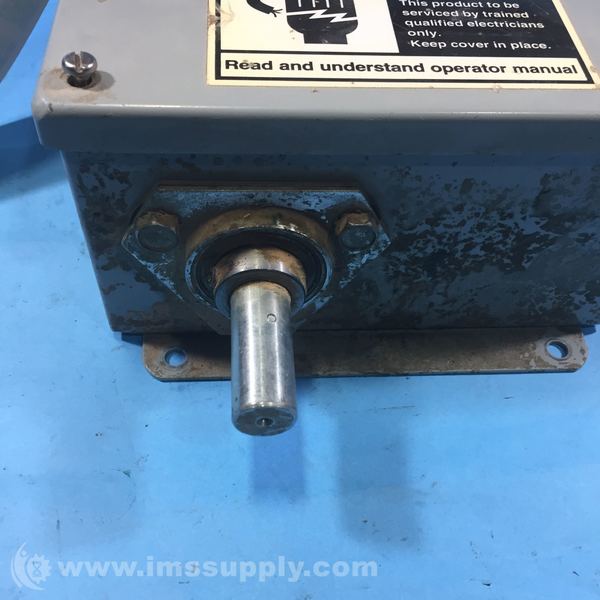

- Shaft Extension: Left Hand
- Max Speed: 3000 RPM
- Max Phase Shift: 1°/1000 RPM
- Ambient Temp: 0 to 60 degrees C (32 to 140 degrees F)
- Max Side Load: 100 lbs. at speeds up to 1800 RPM / 200 lbs. at speeds up to 500 RPM
- Bearing Life: 10 years (87,660 hours) continuous running with 75 lbs. side load at 1000 RPM
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
