EMERSON 6DN3R37ME-TSN-800 SEMI-HERMETIC COMPRESSOR
Quick Overview
Manufactured By: EMERSON
Manufacturer Part Number: 6DN3R37ME-TSN-800
IMS Product Code: 2125930
Packaging: Sold Individually
Description:

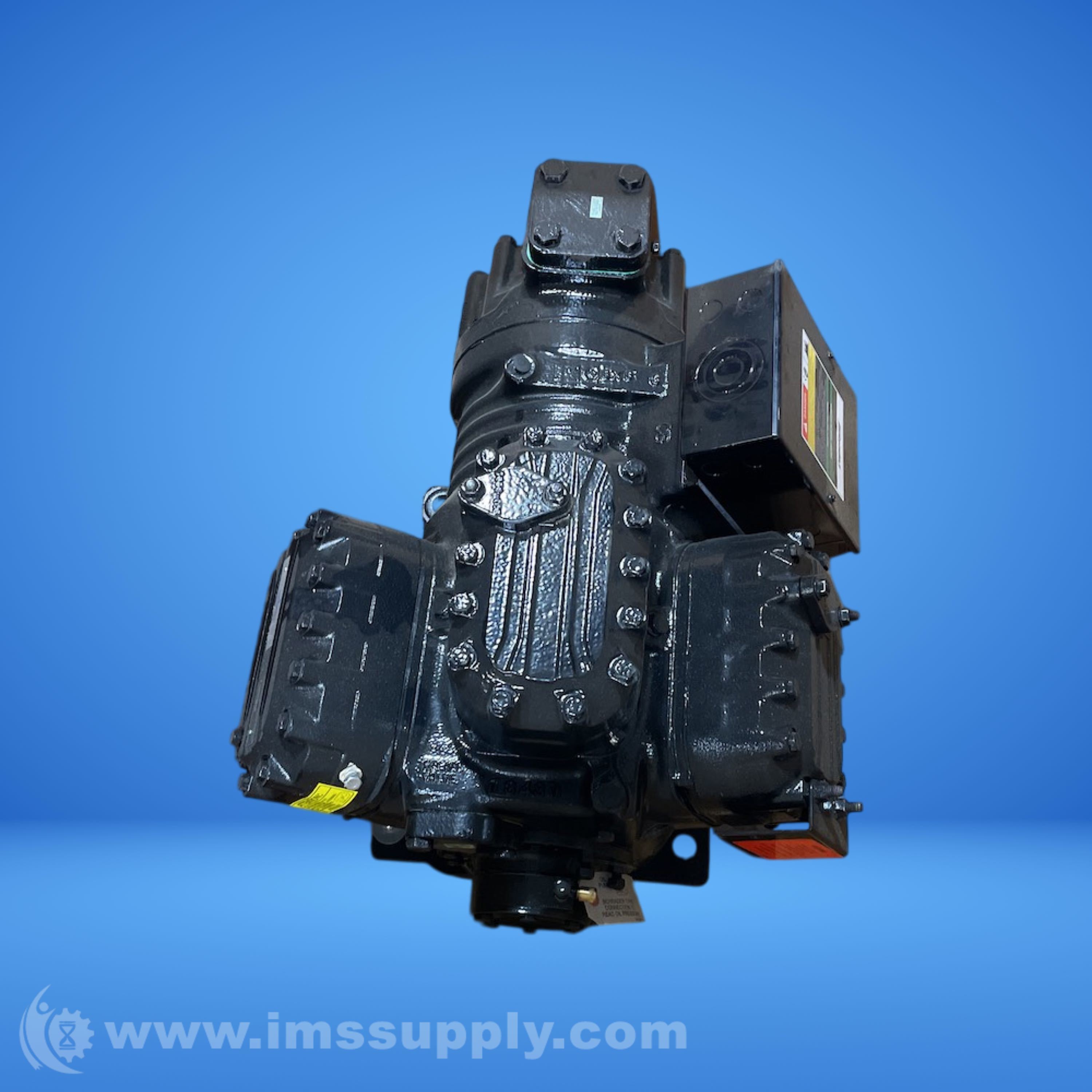

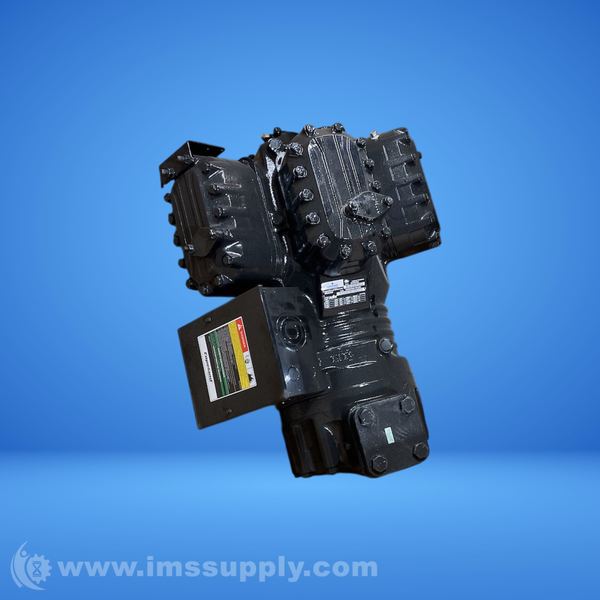

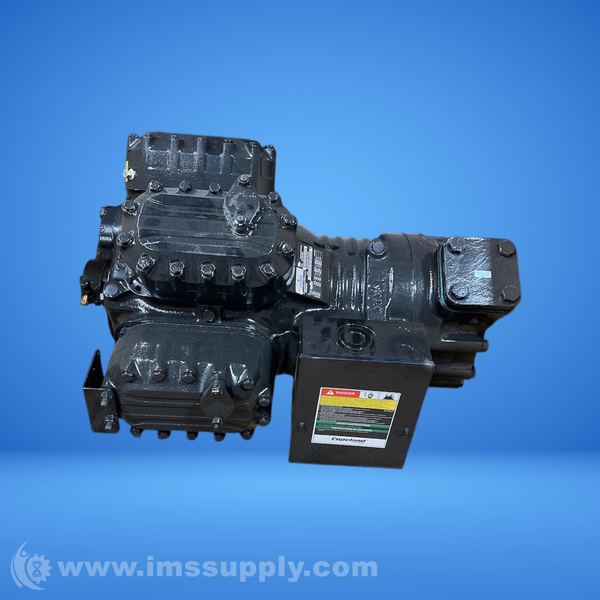

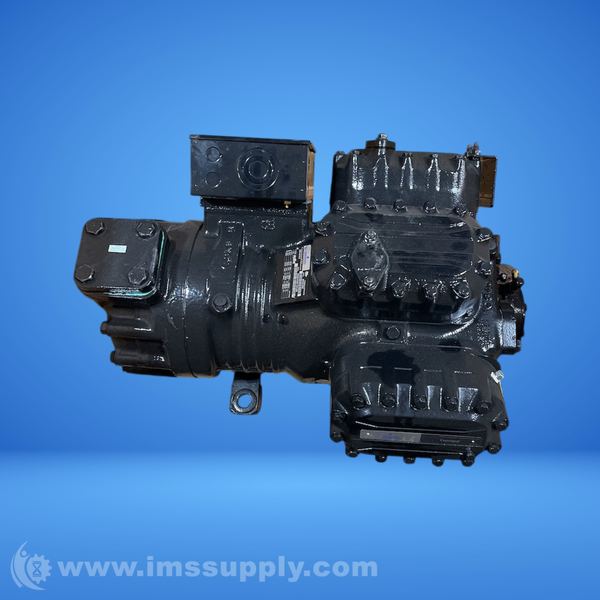

Emerson 6DN3R37ME-TSN-800 Semi-Hermetic Compressor
Semi-hermetic reciprocating compressor for refrigeration systems, 230/460 VAC, 60 Hz, 3-phase, R-404A refrigerant.
Specifications
- weight: 570
- amps: 48.2-58.9
- base: 15" x 12" x 21.53"
- btu output: 352,000
- compressor housing: Semi-Hermetic
- compressor type: Reciprocating
- cubic measurement: 14.3241
- cycle/hertz: 60 Hz
- dimensional weight: 179
- discharge connection type: Sweat or Braze
- evaporating temperature: 35F (1.67C), 45F
- height: 26
- length: 28
- locked rotor amps (lra): 297, 340, 594
- mass flow (lbs/hr): 8300 lbs./hr.; 9300 lbs/hr
- maximum voltage: 230 VAC
- mounting dimensions: 15" x 12" x 21.53"
- oil type: Mineral (MO) or Polyolester (POE)
- overload type: Internal
- phase: Three
- protection: Yes
- rated load amps (rla): 125
- refrigerant: R-404A
- return gas temperature: 55F (12.78C), 65F
- suction line fitting type: Sweat or Braze
- suction line size (od): 2 1/8"
- voltage: 230/460 VAC
- width: 34
- minimum circuit ampacity (mca): 168.6
- country of origin: USA
- discharge connection size (od): 1 5/8"
- substantial commodity: Steel
- amperage rating: 58.9 A
- btu rating: 370000 Btu/hr
- cfm rating: 82.62 cfm
- compressor oil: POE
- dimensions: 30.19 in L x 22.44 in W x 20.34 in H
- discharge line size: 5-1/8 in
- eer rating: 13.5
- flow rate: 5400 to 6150 lb/hr
- power rating: 38900 W, 35 hp
- refrigerant type: R-22, R-404, HCFC
- series: 6D
- speed rating: 3500 rpm
- suction line size: 2-1/8 in Sweat
- temperature rating: 35 to 45 deg F Evaporator, 105 to 130 deg F Condensing, 55 to 65 deg F Return Gas, 90 to 115 deg F Liquid
- voltage rating: 230/460 VAC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 39 minutes.
