ERICKSON 180DA0266 COLLET
Quick Overview
Manufactured By: ERICKSON
Manufacturer Part Number: 180DA0266
IMS Product Code: 1931821
Packaging: Sold Individually
Description:

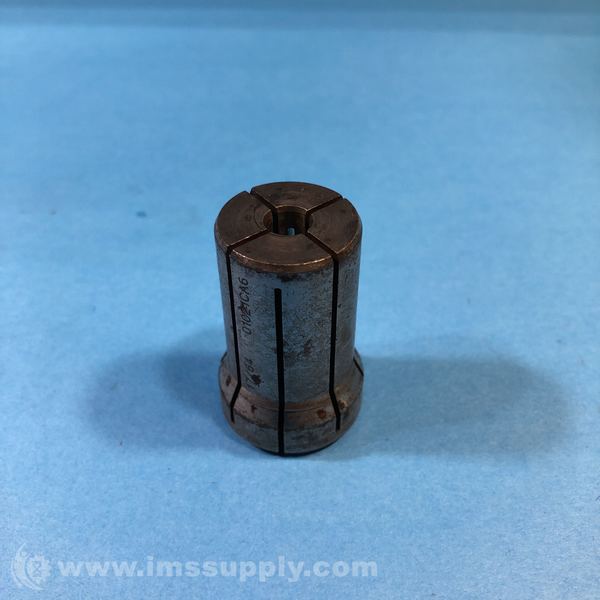

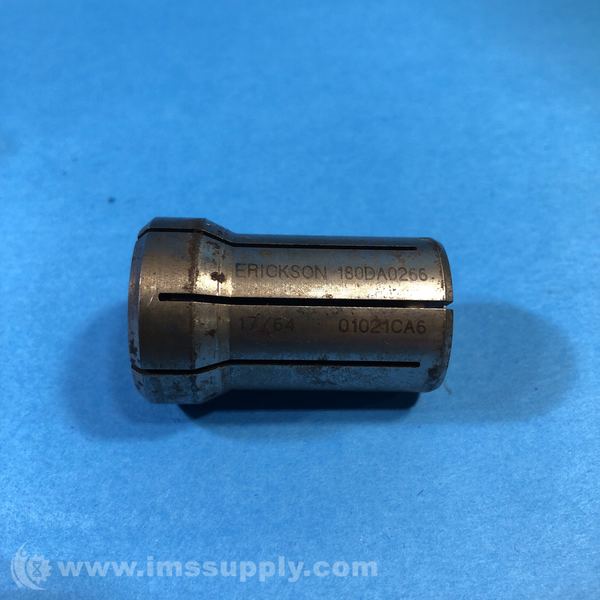

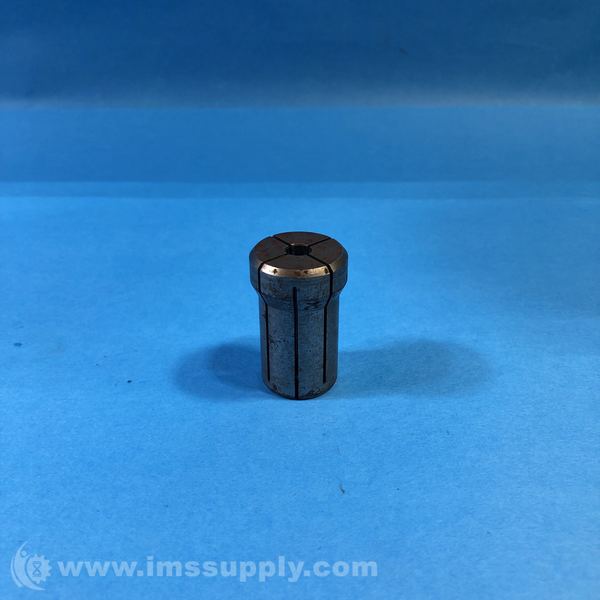

ERICKSON 180DA0266 Collet
Double-Angle Collet for Bonded Collet DAC, Straight Shank Type, Non-Coolant Through, Round Face Shape, 1-5/8 in Overall Length
Specifications
- Collet Series: DA180
- Overall Length: 1-5/8 in
- Min. Size: 15/64 in
- Clamping Hole Length: 1-5/8 in
- Max. Body Dia.: 17/64 in
- Head Dia.: 1.0350 in
- Max. Bore Dia.: 1.0350 in
- Range: 0.2656"-0.2344"
- Coolant Fed: Non-Coolant Through
- Measurement System: Inch
- For Shank Type: Straight
- Face Shape: Round
- Collet Type: Standard
- TIR Max.: 0.0010 in
- Number of Slots: 2
- Bore Shape: Round
- Shank Type: QC30
- Drawbolt Thread: M12
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
