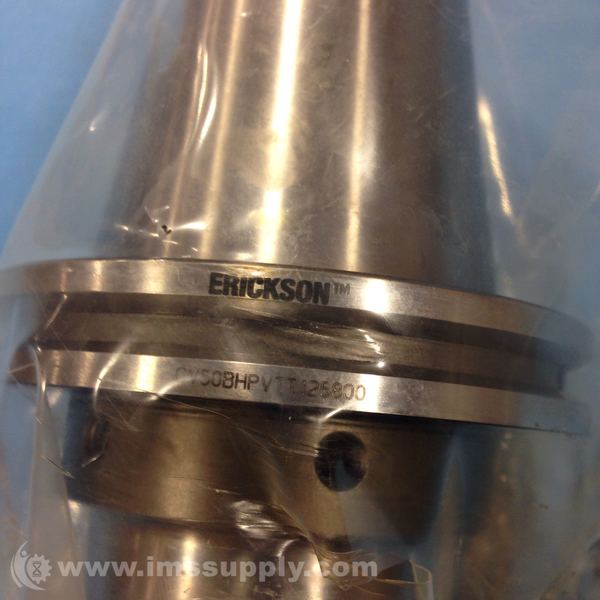

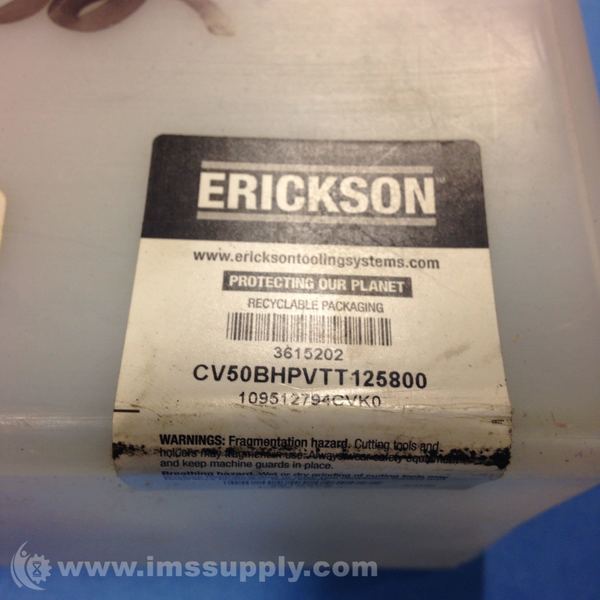

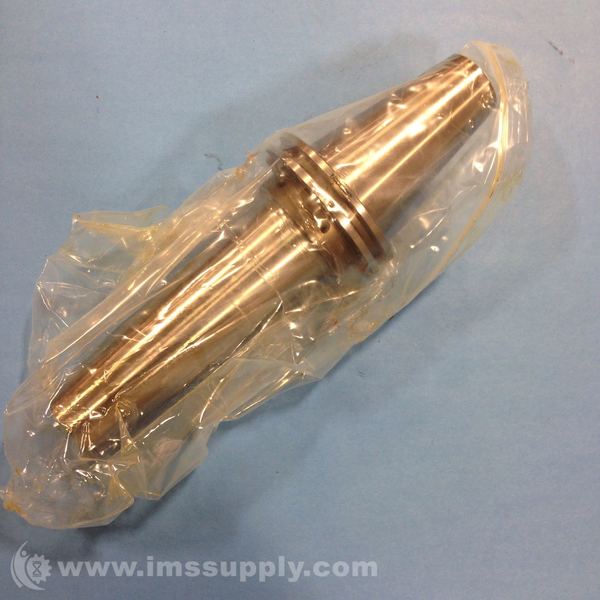

ERICKSON CV50BHPVTT125800 GENERAL PURPOSE SHRINK FIT TOOLHOLDER

Starting At: $75.00

Quick Overview

Manufactured By: ERICKSON
Manufacturer Part Number: CV50BHPVTT125800
IMS Product Code: 1734714

Description:

Erickson CV50BHPVTT125800 General Purpose Shrink Fit Toolholder

Specifications:

  • Adapter/Shank/Bore Dia-Workpiece Side (in): 1.2500
  • Adapter/Shank/Bore Dia-Workpiece Side (mm): 31.750
  • Adjustment Range (in): 0.3937
  • Adjustment Range (mm): 10.000
  • Body Dia 2-Workpiece Side (in): 2.0830
  • Body Dia 2-Workpiece Side (mm): 52.900
  • Body Dia-Workpiece Side (in): 1.7320
  • Body Dia-Workpiece Side (mm): 44.000
  • Clamping Length (in): 2.0100
  • Clamping Length (mm): 51.000
  • Gage Length (in): 8.0000
  • Gage Length (mm): 203.200
  • ISO Code: CV50BHPVTT125800
  • Max Dia Taper Angle 2 (in): 2.3530
  • Max Dia Taper Angle 2 (mm): 59.760
  • Overall Length (in): 12.0000
  • Overall Length (mm): 304.800
  • Style: Form B/AD
  • System Size Machine Side: CV50

New - Missing Box:
A new product without its original packing.

Availability: 2 In Stock

Ships today if ordered in the next 5 hours and 33 minutes.

New - Open Box:
A new product with open packaging.

Availability: 6 In Stock

Ships today if ordered in the next 5 hours and 33 minutes.

Used:
A previously used, fully functional product that may have some signs of cosmetic wear.

Availability: 5 In Stock

Ships today if ordered in the next 5 hours and 33 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of ERICKSON. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
