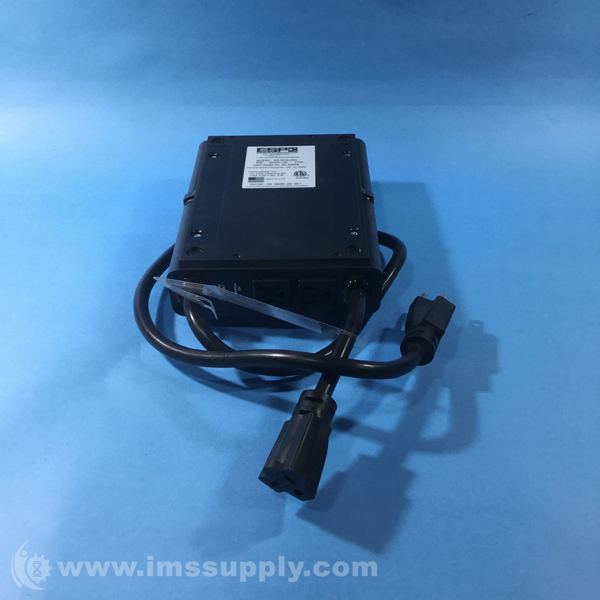

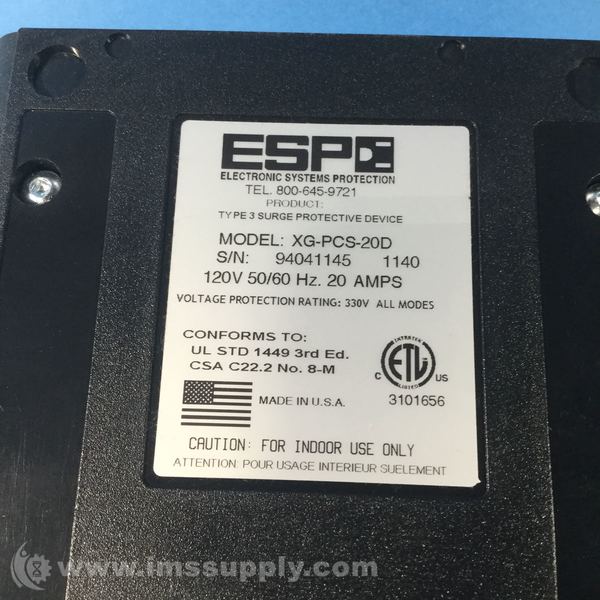

ESP XG-PCS-20D POWER CONDITIONING SYSTEM
Quick Overview
Manufactured By: ESP
Manufacturer Part Number: XG-PCS-20D
IMS Product Code: 1819553
Packaging: Sold Individually
Description:
ESP XG-PCS-20D Power Conditioning System
The Next Gen PCS combines advanced power protection and filtration with analytical software to proactively mitigate and manage power quality events that negatively affect a business.
Specifications
- Load Rating: 20 Amps at 120 Volts
- Voltage Protection Rating (VPR): 330V All Modes
- Dimensions: 6.125” W x 8.375” D x 2” H
- Weight: 2.4 lbs.
- Temperature Range: 5C to 35C
- Humidity Range: 5% to 95% R.H. Non-condensing
- Attenuation: Normal Mode: >30dB 80kHz – 50MHz Common Mode: >30dB 70kHz – 50MHz
- Power Requirement (no load): 4 Watts
- Under-Voltage Shutdown: Adjustable from 80 Volts to 95 Volts, or Disabled Restores at 105 Volts
- Over-Voltage Shutdown: Adjustable from 135 Volts to 160 Volts Restores at 130 Volts
- Internal Memory Capacity: 60 Events with timestamp; 999 counts of each event type
- Voltmeter Accuracy: Peak reading type Typical product accuracy is ±2% between 40V and 180V
- Timestamp accuracy: ±2.5%
- Response Time: 100msec Over-Voltage / 150msec Under-Voltage
- Under-Voltage Record Event Definition: AC voltage: 100V
- Over-Voltage Record Event Definition: AC voltage has risen above: 135V
- Power Outage Event Definition: AC voltage has dropped below 20V.
- Surge Event Definition: Next Gen PCS Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 500V
- Modem/Fax Protection: Single telephone line surge suppression.
- Ethernet Protection: Cat5e network surge protection, ETL Certified to TIA/EIA-568-B.2.
- PC Requirements: For use with Next Gen PCS Diagnostic Software. Minimum 133MHz Pentium processor (or equivalent), minimum 64MB of RAM, minimum 10MB free hard drive space, VGA or higher resolution monitor, keyboard, mouse, CD or DVD drive, minimum screen resolution of 1024×768, Microsoft Windows 2000/XP/Vista/7.
- Agency Listings: ETL Certified to UL 1449 (3rd Edition), ETL Certified to TIA/EIA-568-B.2 Cat 5e, Industry Canada Certified
- Country of Origin: United States
- Max. Input Current: 20 A
- Voltage Compatibility: 120 V

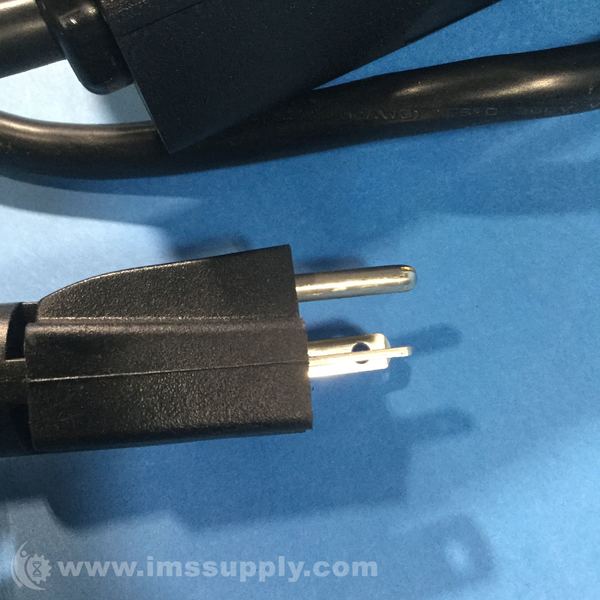

- Cable Length: 3ft.
- Outlets: 2
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
