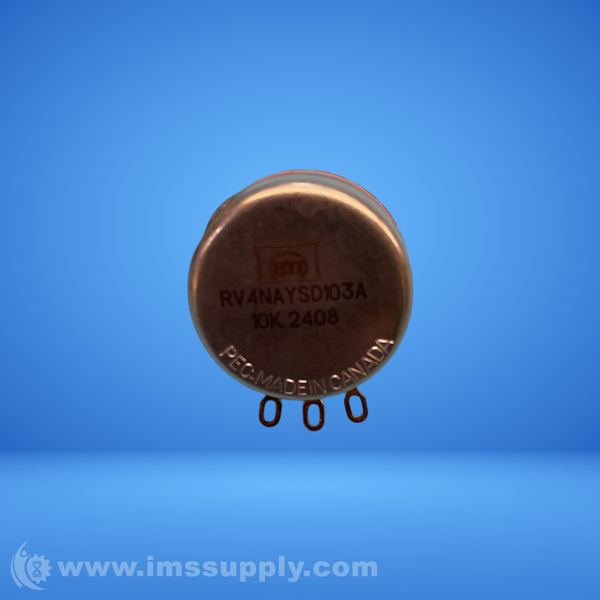

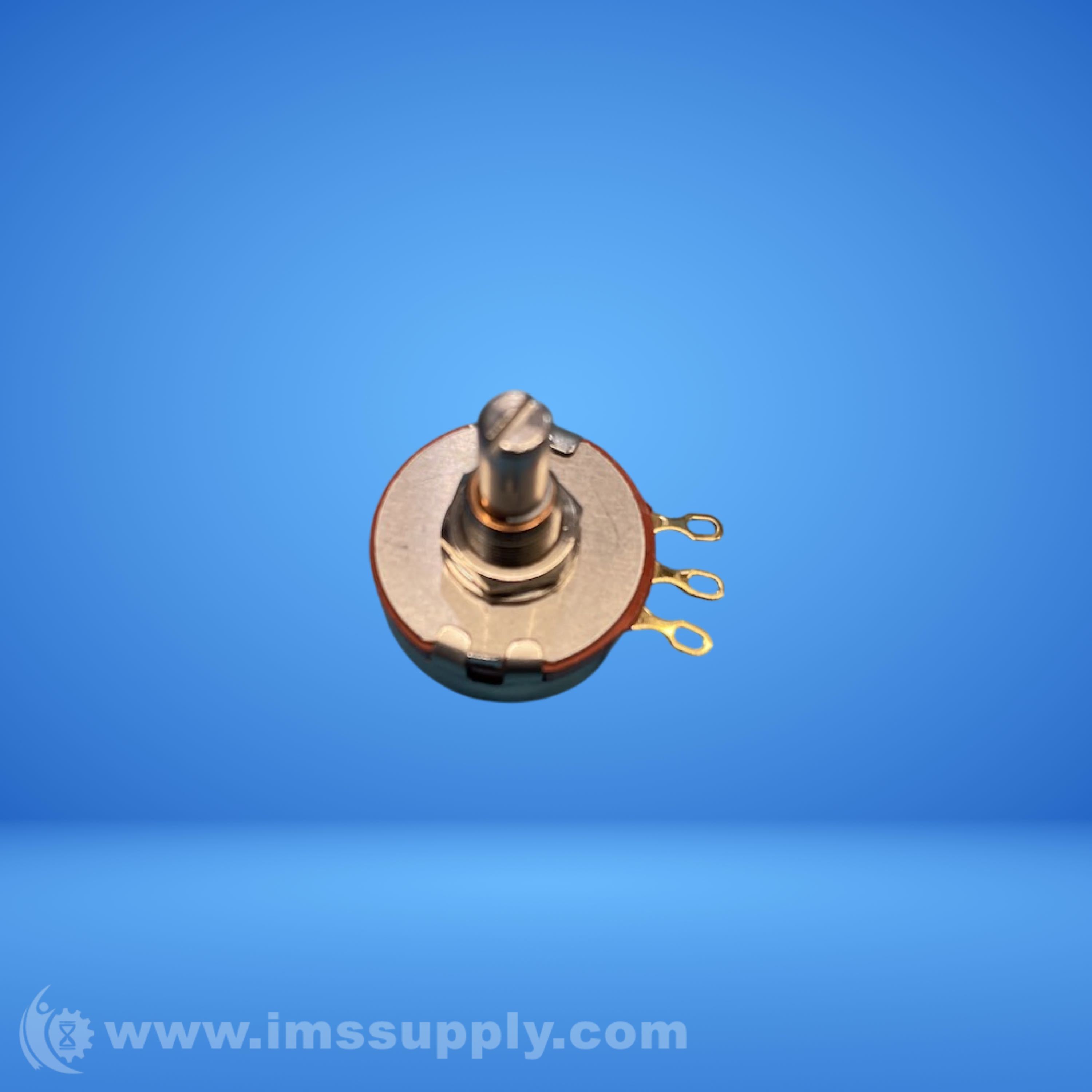

ETI SYSTEMS RV4NAYSD103A 10KOHM POTENTIOMETER
Quick Overview
Manufactured By: ETI SYSTEMS
Manufacturer Part Number: RV4NAYSD103A
IMS Product Code: 2140616
Packaging: Sold Individually
Description:
Eti Systems RV4NAYSD103A 10kOhm Potentiometer
1-turn, carbon, rotary potentiometer with 10kOhm resistance, 2W power rating, and 10% tolerance.
Specifications
- Resistance: 10kOhm
- Tolerance: 10%
- Power Rating: 2W
- Type: Potentiometer
- Mounting Style: Panel Mount
- Termination Style: Solder Lug
- Taper: Linear
- Voltage Rating: 500 V
- Element Type: Carbon
- Number of Turns: 1 Turn
- Shaft Type: Smooth / Slotted
- Shaft Diameter: 6.35 mm
- Shaft Length: 22.22 mm
- Diameter: 28.5 mm
- Series: RV4
- Minimum Operating Temperature: -65 C
- Maximum Operating Temperature: +125 C
- Life: 25000 Cycle
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
