EUCHNER C-M23F19-19XD1FPU06,0-MA-077018 CONNECTING CABLE
Quick Overview
Manufactured By: EUCHNER
Manufacturer Part Number: C-M23F19-19XD1FPU06,0-MA-077018
IMS Product Code: 2162127
Packaging: Sold Individually
Description:
Euchner C-M23F19-19XD1FPU06,0-MA-077018 Connecting Cable

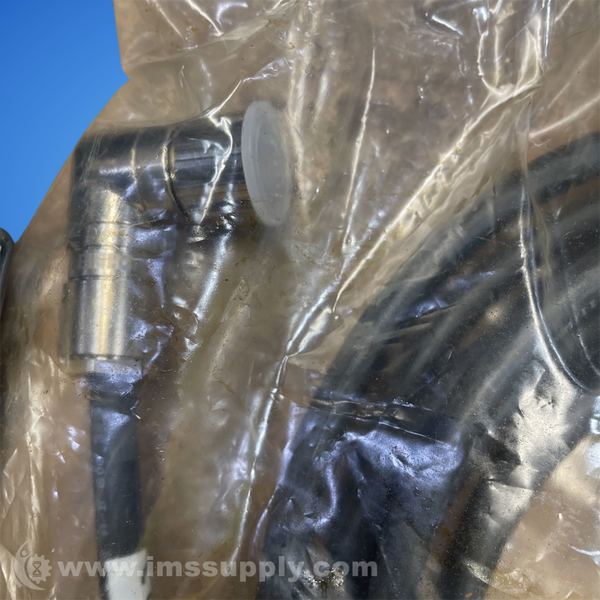

Connecting cable with M23 plug connector, 6 m length, angled left. Features PUR sheath, PVC conductor insulation, and EL-Cu flexible wire conductors.
Specifications
- Cable Length: 6 m
- Cable Diameter: approx. 11.6 mm
- Number of Conductors: 19
- Conductor Cross-Section: 16 x 0.5 mm˛ / 3 x 1 mm˛
- Rated Voltage: 150 V
- Test Voltage: 1.5 kV
- Degree of Protection: IP65/IP67
- Sheath Color: black
- Cable Outlet: Angle left
- Dynamic Bending Radius: 10x cable diameter
- Drag Chain Suitability: Yes
- Fire Behavior: flame retardant
- Sheath Material: PUR
- Conductor Insulation: PVC
- Conductor Material: EL-Cu flexible wire
- Connection Type: M23 plug connector
- Number of Pins: 19 (18+PE)
- Plug Lock: Screw connection
- Insertion Cycles: 50
