EUCHNER GP1-2131A-M SAFETY SWITCH
Quick Overview
Manufactured By: EUCHNER
Manufacturer Part Number: GP1-2131A-M
IMS Product Code: 2145767
Packaging: Sold Individually
Description:

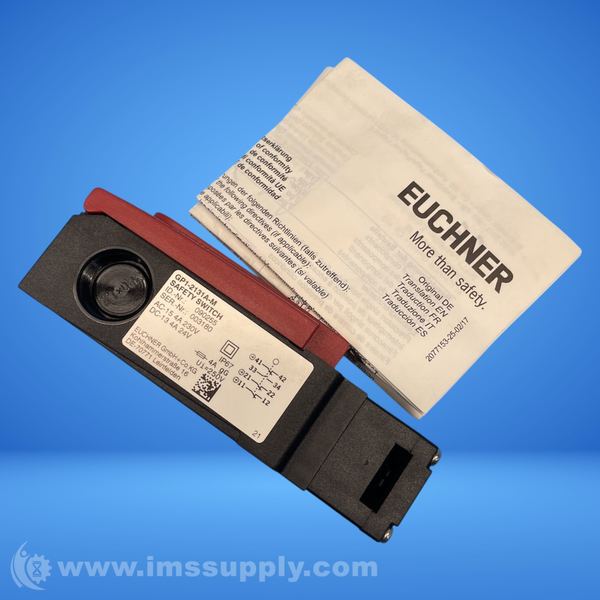

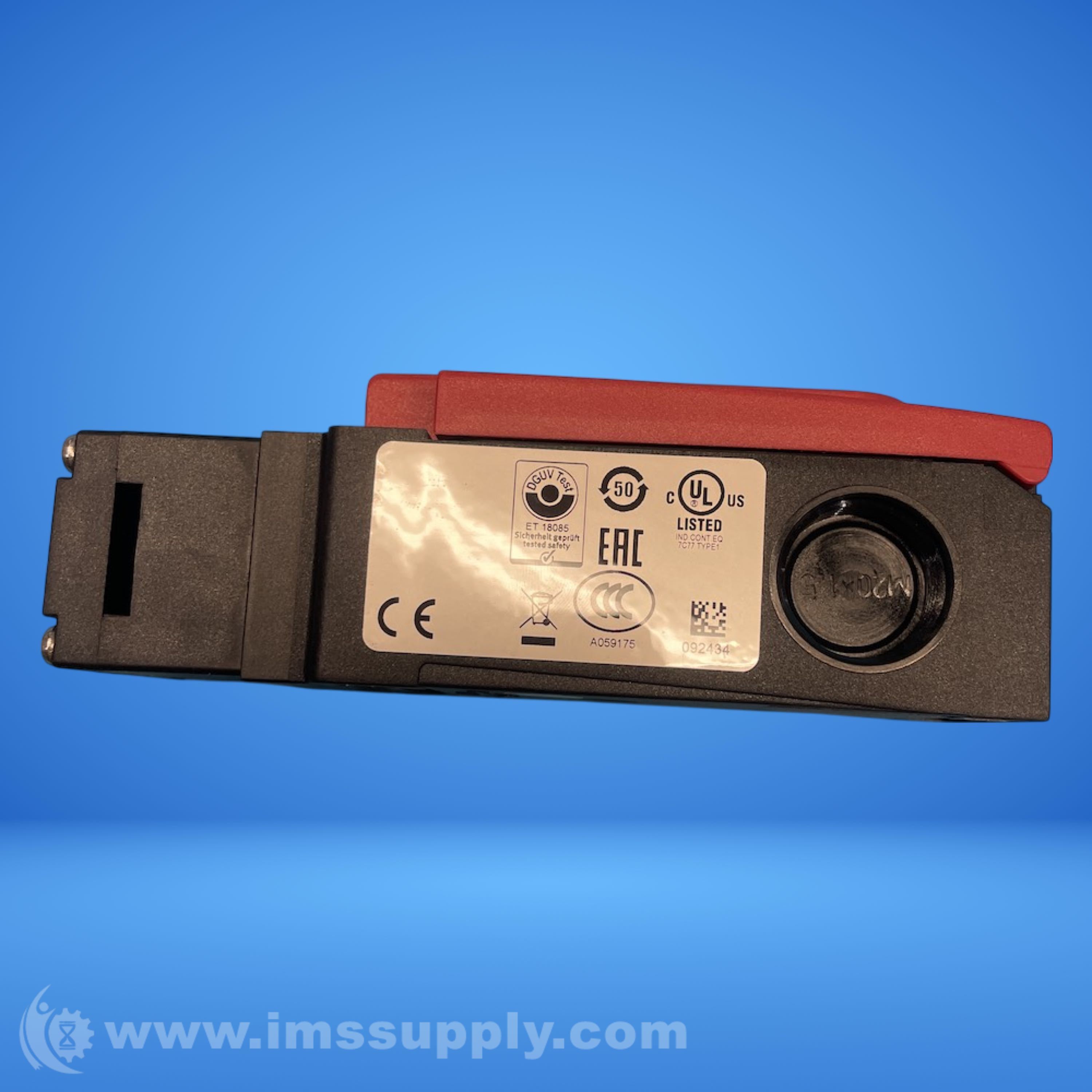

Euchner GP1-2131A-M Safety Switch
Safety switch with cable entry M20 x 1.5, 3 positively driven contacts and 1 NO contact.
Specifications
- Approach direction: Horizontal and vertical, Can be adjusted in 90° steps
- Switching element: 2131, Slow-action switching contact, 3 positively driven contacts + 1 NO contact
- Connection type: 3 x M20 x 1.5
- Number of door position positively driven contacts: 3
- Number of door position NO contacts: 1
- Rated insulation voltage Ui: 250 V
- Rated impulse voltage Uimp: 2.5 kV
- Utilization category DC-13: 4 A 24 V
- Utilization category AC-15: 4 A 230 V
- Switching voltage min. at 10 mA: 12 V
- Switching current min. at 24 V: 1 mA
- Thermal rated current Ith: 4 A
- Actuation frequency max.: 6700 1/h
- Actuating force: 10 N
- Extraction force: 20 N
- Retention force: 2 N
- Degree of protection: IP67
- Ambient temperature: -20 ... 80 °C
- Storage temperature: -25 ... 80 °C
- Mechanical life: 2 x 106
- Switching principle: Slow-action switching contact
- Material Contact: Silver alloy, gold flashed
- Material Housing: Reinforced thermoplastic
- B10D: 3x106
- Mission time: 20 y
- Horizontal insertion depth: 28 mm
- Vertical insertion depth: 29.5 mm
- Horizontal overtravel (with ACTUATOR-P-GT): 2 mm
- Vertical overtravel (with ACTUATOR-P-GT): 1.5 mm
- Horizontal overtravel (with ACTUATOR-P-GNT): 7 mm
- Vertical overtravel (with ACTUATOR-P-GNT): 7 mm

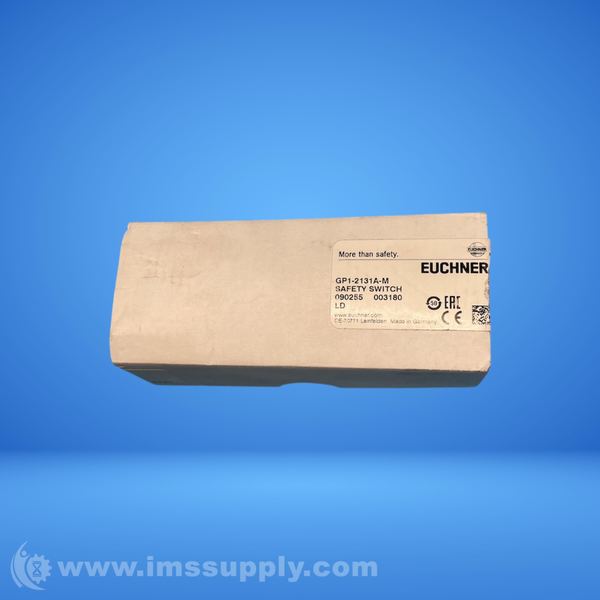

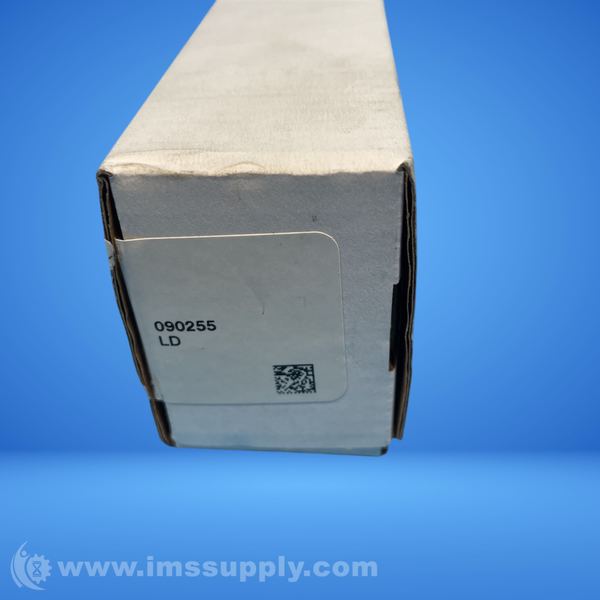

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 59 minutes.
