EUCHNER STP3A-2131A024M SAFETY SWITCH
Quick Overview
Manufactured By: EUCHNER
Manufacturer Part Number: STP3A-2131A024M
IMS Product Code: 2122314
Packaging: Sold Individually
Description:

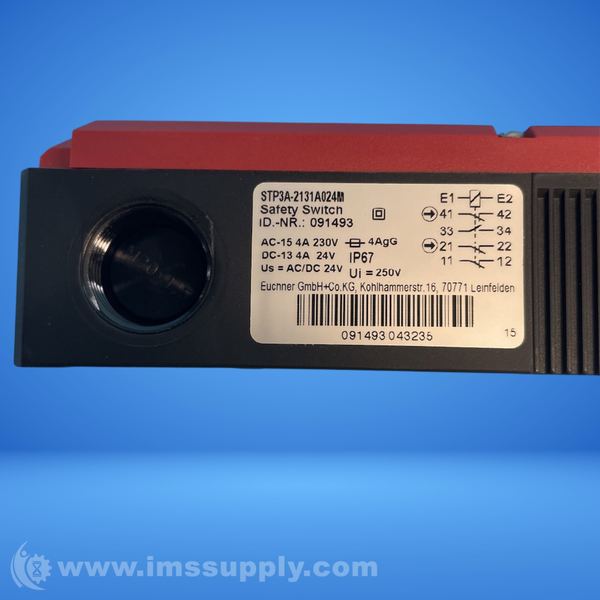

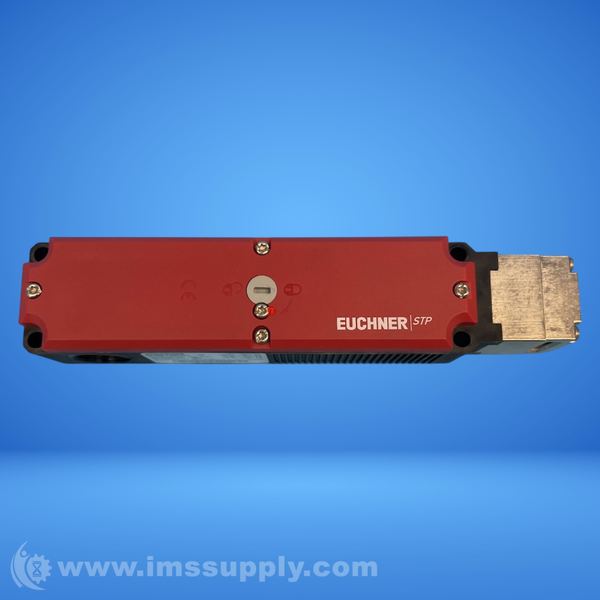

Euchner STP3A-2131A024M Safety Switch
Safety switch with guard locking and door monitoring contact. Features slow-action switching contacts and solenoid operating voltage of 24 V.
Specifications
- Approach direction: Horizontal and vertical
- Guard locking principle: Closed-circuit current principle
- Switching element: 2131
- Contacts for guard locking: 2 positively driven contacts + 1 NO contact
- Contacts for door monitoring: 1 NC contact
- Auxiliary release: Yes
- Connection type: 3 x M20 x 1.5
- Solenoid operating voltage: 24 V -15% ... +10%
- Power consumption: 8 W
- Rated insulation voltage Ui: 250 V
- Rated impulse voltage Uimp: 2.5 kV
- Utilization category DC-13: 4 A 24 V
- Utilization category AC-15: 4 A 230 V
- Switching voltage min.: 12 V
- Switching current min.: 1 mA
- Thermal rated current Ith: 4 A
- Actuation frequency max.: 1200 1/h
- Actuating force: 35 N
- Extraction force: 30 N
- Installation orientation: any
- Insertion depth: 24.5 mm
- Storage temperature: -25 ... 70 degrees C
- Mechanical life: 1 x 10^6
- Retention force: 20 N
- Switching principle: Slow-action switching contact
- Degree of protection: IP67
- Ambient temperature: -20 ... 55 degrees C
- Material Housing: Reinforced thermoplastic
- Material Contact: Silver alloy, gold flashed
- Locking force Fmax: 2500 N
- Locking force FZh: 2000 N
- B10D: 5x10^6
- Mission time: 20 y
- Weight: 0.50 kgs

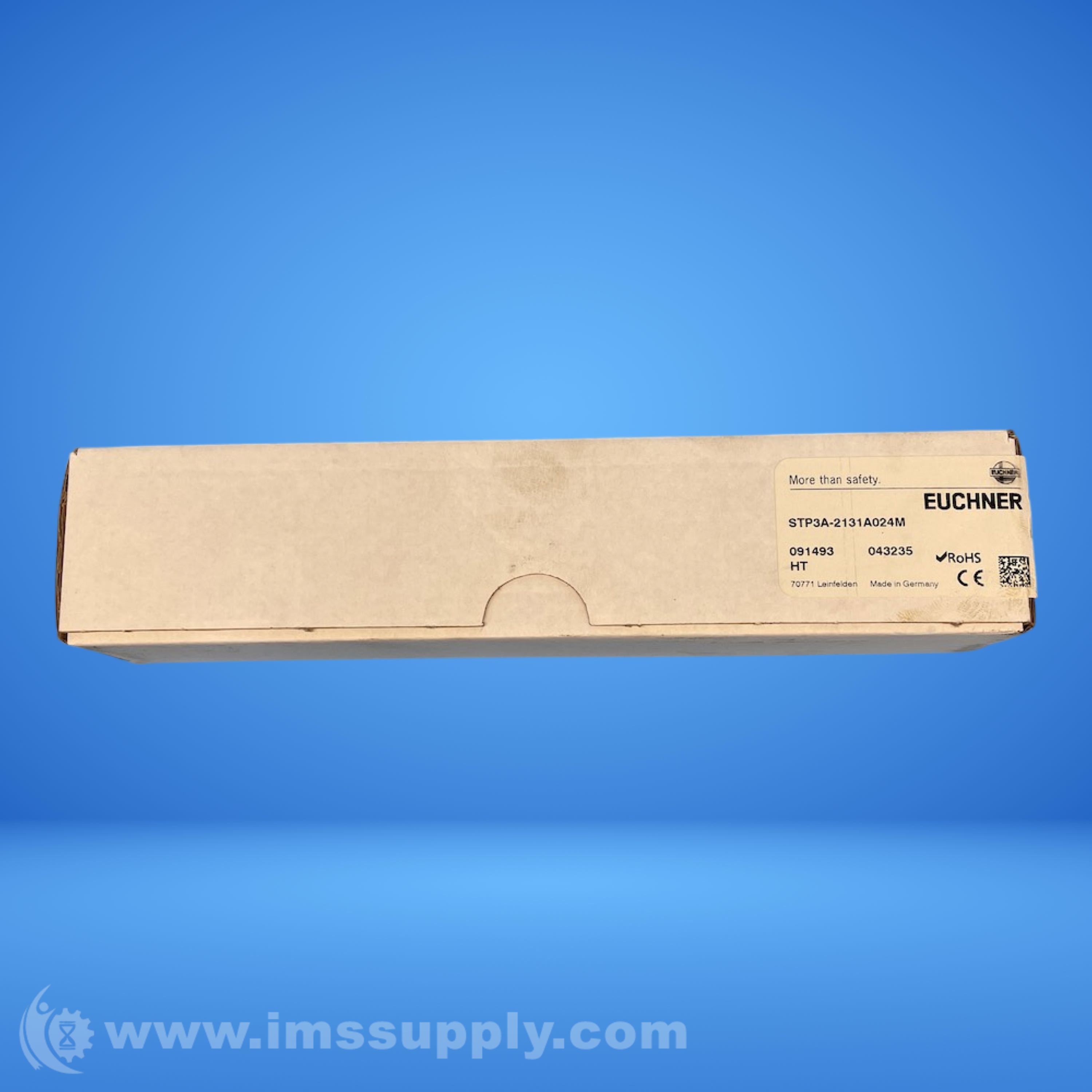

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
