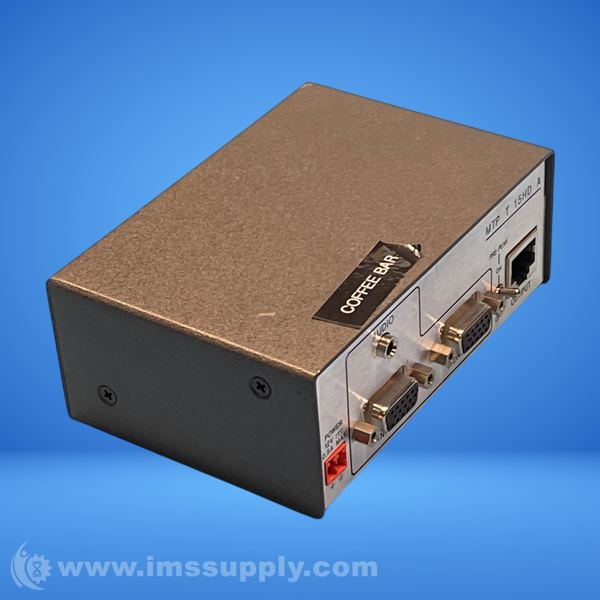

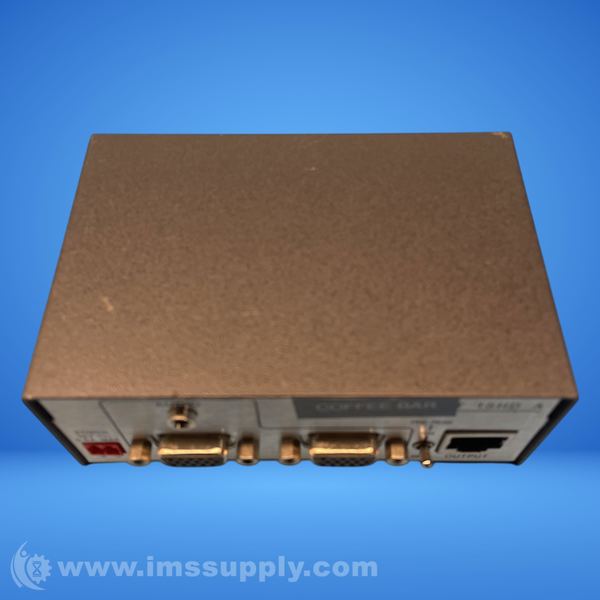

EXTRON MTP-T15-HDA VGA AND AUDIO TRANSMITTER
Quick Overview
Manufactured By: EXTRON
Manufacturer Part Number: MTP-T15-HDA
IMS Product Code: 718872
Packaging: Sold Individually
Description:
Extron MTP-T15-HDA VGA and Audio Transmitter
Transmits high resolution video and summed mono audio signals over a single CAT 5-type cable. Supports RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, and composite video. Rack-mountable, 1U, quarter rack width metal enclosure.
Specifications
- Transmits: high resolution video and summed mono audio signals over a single CAT 5-type cable
- Supports: RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, and composite video
- Compatible with: HDTV component video, bi-level or tri-level sync

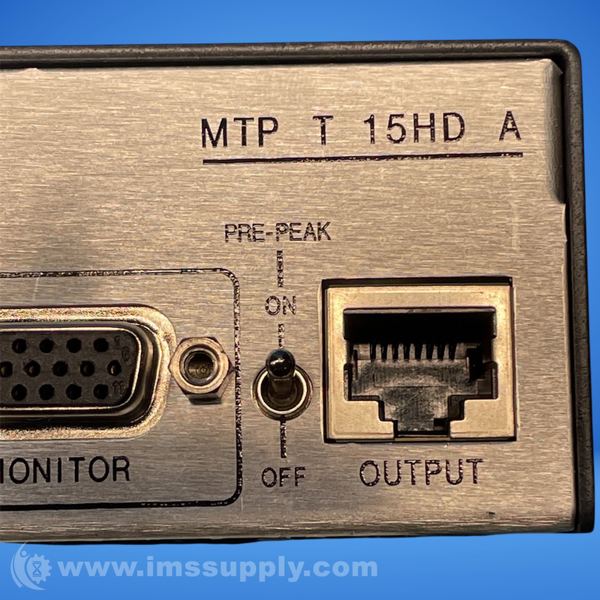

- Pre-peaking circuit: for optimizing video signal on long cable runs
- Enclosure: Rack-mountable, 1U, quarter rack width metal enclosure
- Number of Inputs: 1
- Input Connection: VGA, 15 pin HD / VGA
- Number of Outputs: 1
- Output Connection: Wired
- Weight: 0.93 lbs
- Video Format: HD
- Gain: Unity
- Nominal level: 1 Vp-p for Y of component video and S-video, and for composite video 0.7 Vp-p for RGB and for R-Y and B-Y of component video 0.3 Vp-p for C of S-video
- Impedance: 75 ohms
- Horizontal frequency: 15 kHz to 130 kHz
- Vertical frequency: 30 Hz to 150 Hz
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
