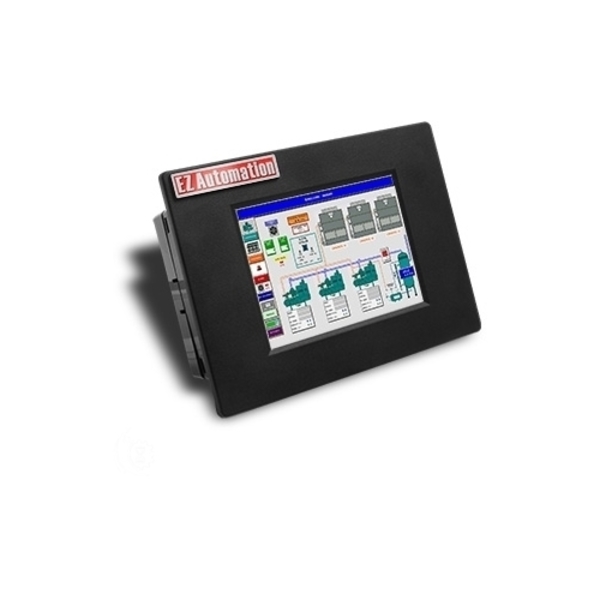

EZ-T6C-FSH, 5.7" TFT COLOR HMI WITHREMOTE I/O & DH+ COMMUNICATION
Quick Overview
Manufactured By: EZ AUTOMATION
Manufacturer Part Number: EZ-T6C-FSH
IMS Product Code: 1757739
Packaging: Sold Individually
Description:
5.7" TFT Color HMI with Remote I/O & DH+ Communications. (PV550, PV600 replacement)
Features
- A-B DH+ or Remote I/O interface
- 5.7” diagonal color TFT LCD
- Low-profile slim bezel design
- 128 colors
- NEMA 4, 4X
- 320x240 pixel resolution
- 512K RAM expandable to 1.5MB
- 512K, 1MB or 2MB option flash card for memory backup
- 400 nits brightness
- 75,000 hour expected bulb half-life
- 192 touch cells (16x12)
- 1/4” gasket and four DIN mounting clips for NEMA 4, 4X
- 2.3” (59.0mm) installed depth
- Has all EZSeries objects
- Has all 4,000 Library symbols
- Programmed with EZSeries programming software
