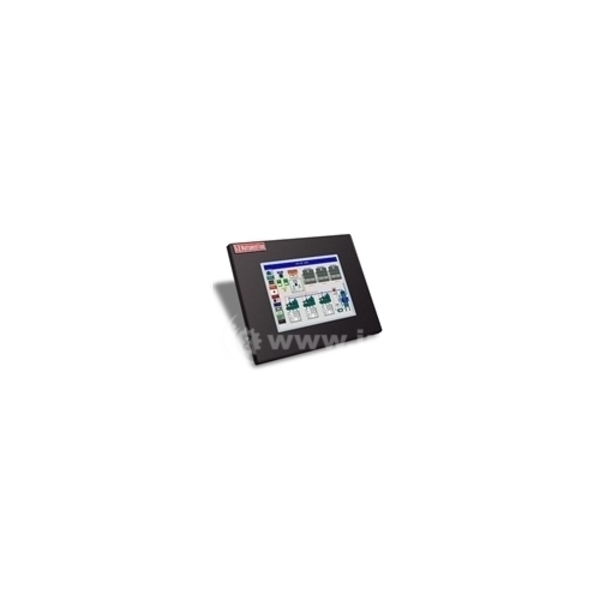

EZ-T8C-FSH, 8" TFT COLOR HMI WITH REMOTE I/O & DH+ COMMUNICATIONS
Quick Overview
Manufactured By: EZ AUTOMATION
Manufacturer Part Number: EZ-T8C-FSH
IMS Product Code: 1757746
Packaging: Sold Individually
Description:
8" TFT Color HMI with Remote I/O & DH+ Communications. (PV700 replacement)
Features
- A-B DH+ or Remote I/O interface
- 8” diagonal color TFT LCD
- Low-profile slim bezel design
- 128 colors
- 640x480 pixel resolution
- 512K RAM expandable to 1.5MB
- 512K, 1MB or 2MB option flash card for memory backup
- Ethernet card optional (EZP-ETHERNET)
- MODBUS TCP/IP card optional (EZP-ETHERPLUS)
- 370 nits brightness
- 54,000 hour expected bulb half-life
- 192 touch cells (16x12)
- 1/4” O-ring gasket and eight mounting studs for NEMA 4, 4X (indoor)
- 2.76” (70.10mm) installed depth
- Has all EZSeries objects
- Has all 4,000 Library symbols
- Programmed with EZSeries Programming Software
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
