FAFNIR 307KDD BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 307KDD
IMS Product Code: 2167876
Packaging: Sold Individually
Description:

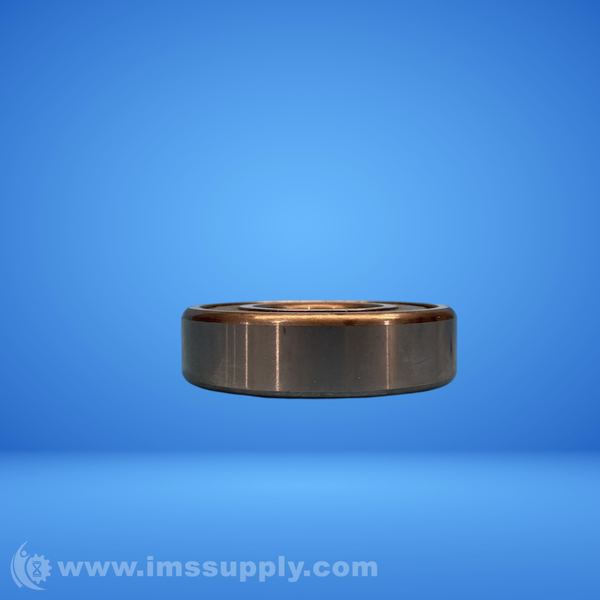

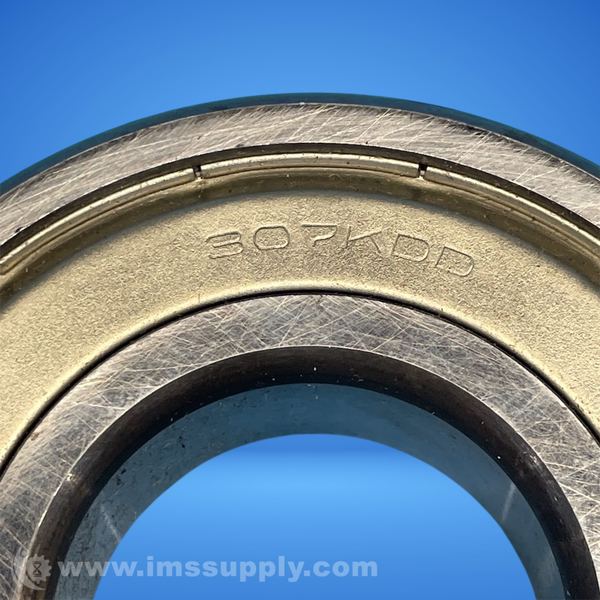

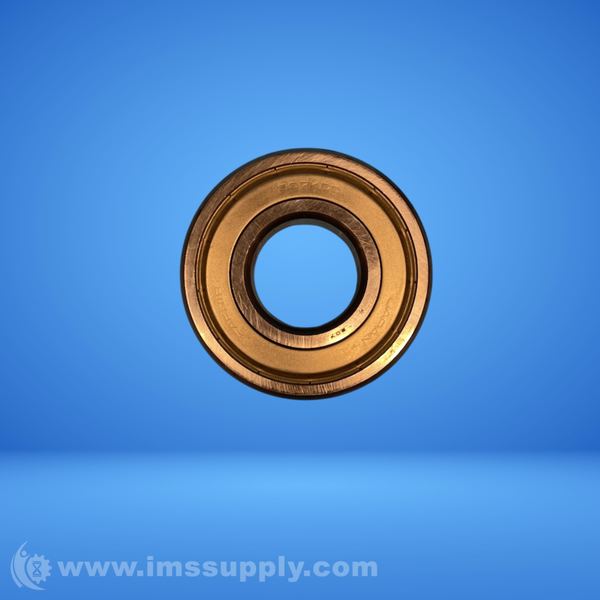

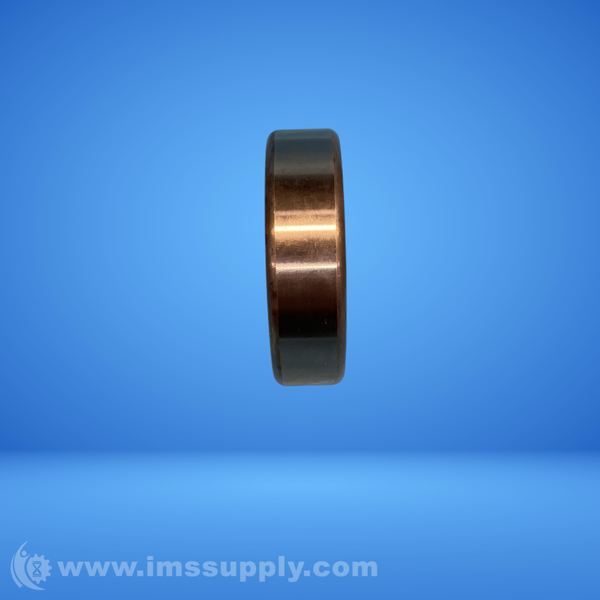

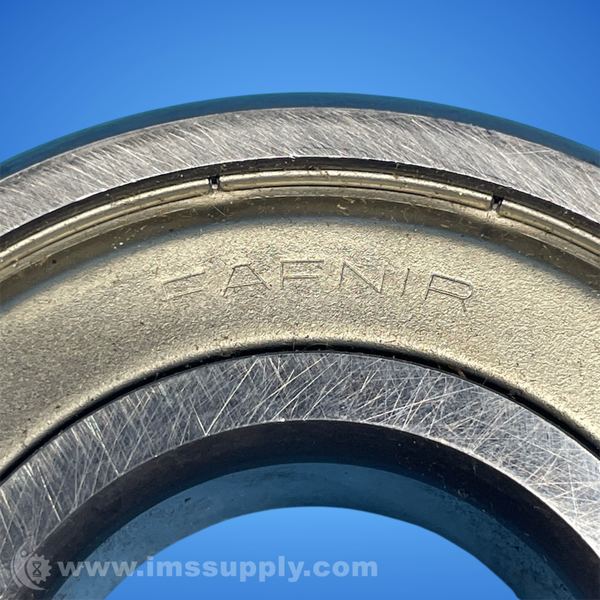

Fafnir 307KDD Ball Bearing
Fafnir 307KDD is a radial/deep groove ball bearing with a round bore, 35 mm inner diameter, 80 mm outer diameter, and 21 mm width. It features double sealing, C0 internal clearance, and is made of steel.
Specifications
- Bore Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 21 mm
- Bore Type: Round
- Closure Type: Double Sealed
- Row Type & Fill Slot: Single Row Non-Fill Slot
- Internal Clearance: C0
- Dynamic Load Capacity: 8500 lb
- Static Load Capacity: 4150 lbs
- Precision Rating: Not Rated
- Finish/Coating: Uncoated
- Cage Material: Steel
- Fillet Radius: 1.5 mm
- Series: 300K
- Weight: 1.04 lbs
- Material: Steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 45 minutes.
