FAFNIR 5303KDD DOUBLE ROW BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 5303KDD
IMS Product Code: 1897002
Packaging: Sold Individually
Description:

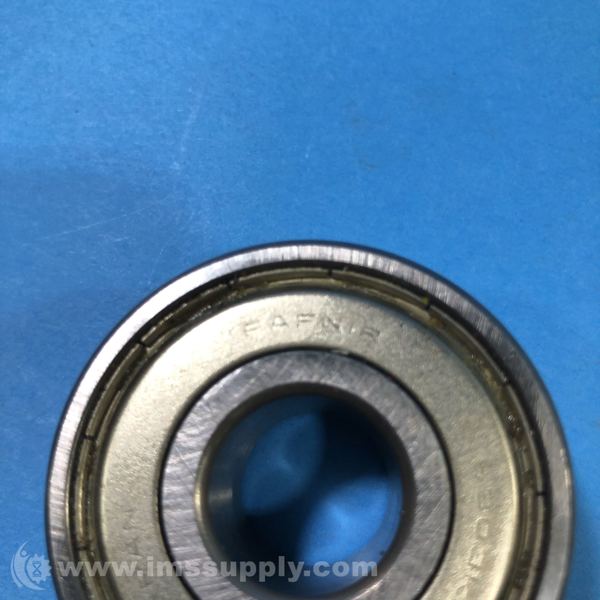

Fafnir 5303KDD Double Row Ball Bearing
Double row ball bearing with steel balls and snap-in cage
Specifications
- Bore (d): 17 mm
- O.D. (D): 47 mm
- Dynamic Radial Load Rating - 1M Revs (C1): 5100 lbf/22600 N
- Ball Type: STEEL
- Cage Type: Snap In
- Width (B): 22.22 mm
- Contact Angle: 20 degrees
- Max Shaft Fillet Radius: 1 mm
- Shaft Backing Shoulder Diameter: 22.1 mm
- Housing Backing Shoulder Diameter: 40.770 mm
- Static Radial Load Rating (C0): 2850 lbf/12600 N
- r - Outer Ring "To Clear" Radius: 1 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
