FANUC A05B-1215-B601 ARC-MATE 100IB WELDING AND CUTTING ROBOT

Call For Quote

Quick Overview

Manufactured By: FANUC
Manufacturer Part Number: A05B-1215-B601
IMS Product Code: 1762587
Variation: Unspecified
Unspecified Configuration: Robot Only
Packaging: Sold Individually

Description:

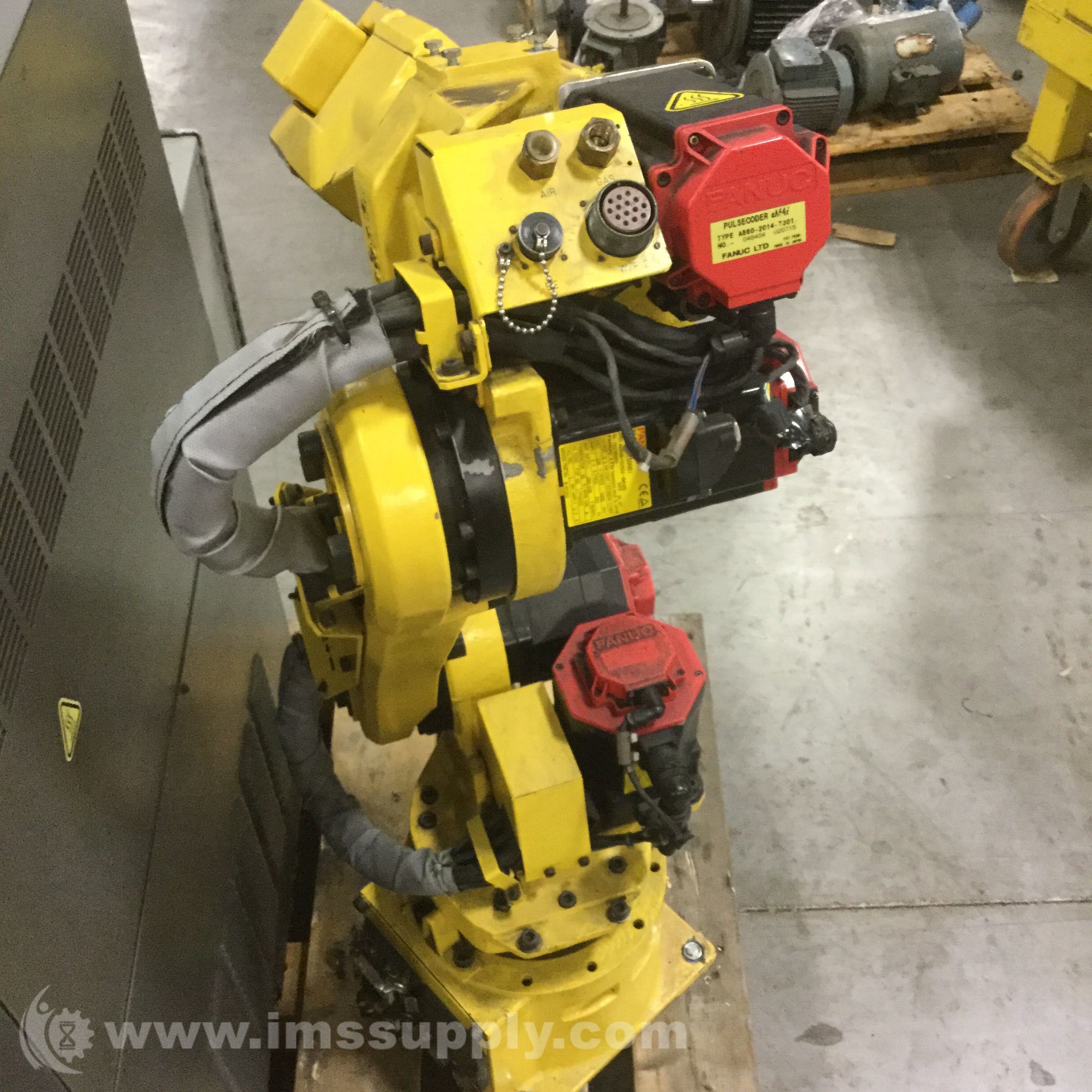

Fanuc A05B-1215-B601 Arc-Mate 100iB Welding and Cutting Robot with controller R-J3IB

Specifications:

  • Robot F Number: F-54520
  • Axes: 6
  • Payload: 6kg
  • Reach: 1373mm
  • Mounting: Upright, inverted, wall and angle
  • Axes: 6
  • Payload: 6kg
  • H-Reach: 1373mm
  • Repeatability: ± 0.08mm
  • Robot Mass: 135kg
  • Structure: Articulated
  • Mounting: floor, inverted, wall, angle
  • Robot Motion Speed
  • J1     150 °/s (2.62 rad/s)
  • J2     160 °/s (2.79 rad/s)
  • J3     170 °/s (2.97 rad/s)
  • J4     400 °/s (6.98 rad/s)
  • J5     400 °/s (6.98 rad/s)
  • J6     520 °/s (9.08 rad/s)
  • Robot Motion Range
  • J1     ±170°
  • J2     +160° - 90°
  • J3     +145° - 170°
  • J4     ±190°
  • J5     ±140°
  • J6     ±360°
  • Robot Controllers
  • RJ3iB
  • Robotic Applications
  • Arc Welding
  • MAG Welding
  • Mig Welding
  • Orbital Welding
  • Oxyacetylene Welding
  • Plasma Welding
  • Submerged Arc Welding
  • Tig Welding

Controller Specifications:

  • Controller F Number: F-54520
  • Multi-processor architecture (separate motion and communication) with real time
  • Built-in Ethernet
  • 100 Base-TX/10 Base-T with RJ-45 connector
  • Three RS-232 ports (one can be configured as RS-422)

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged FANUC A05B-1215-B601 ARC-MATE 100IB WELDING AND CUTTING ROBOT . Contact us today for details.

Repair Time Estimates Provided In Quote
