FANUC A06B-0853-B400 AC SPINDLE MOTOR
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A06B-0853-B400
IMS Product Code: 1958601
Packaging: Sold Individually
Description:

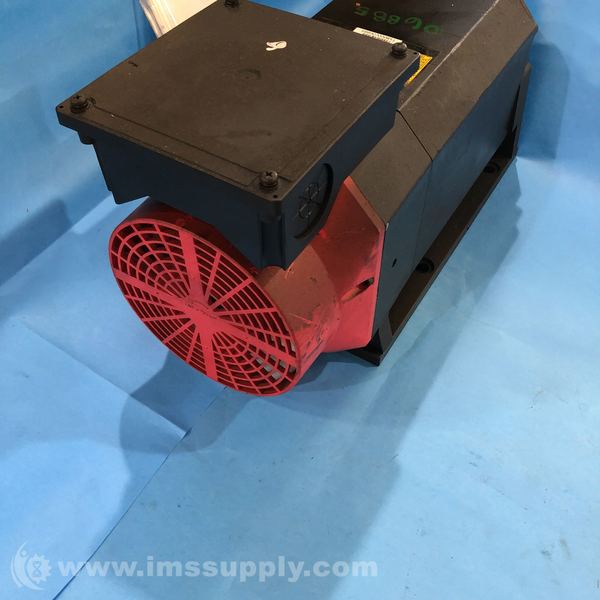

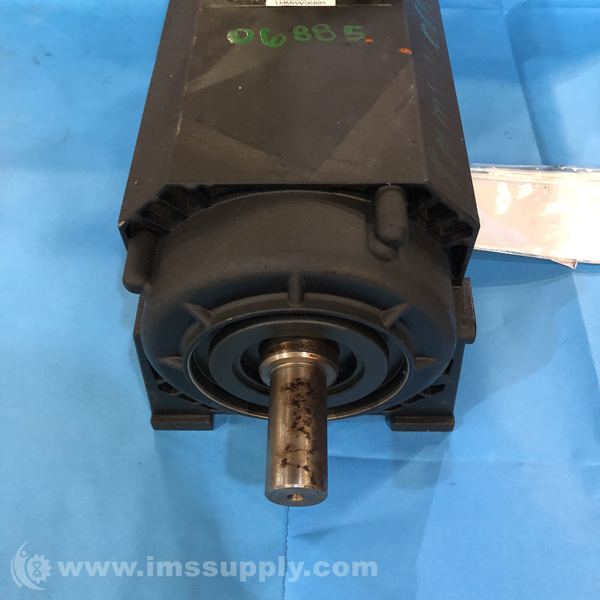

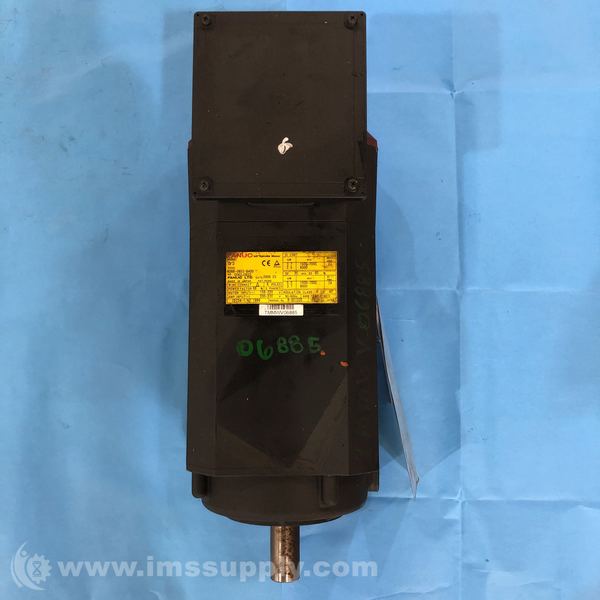

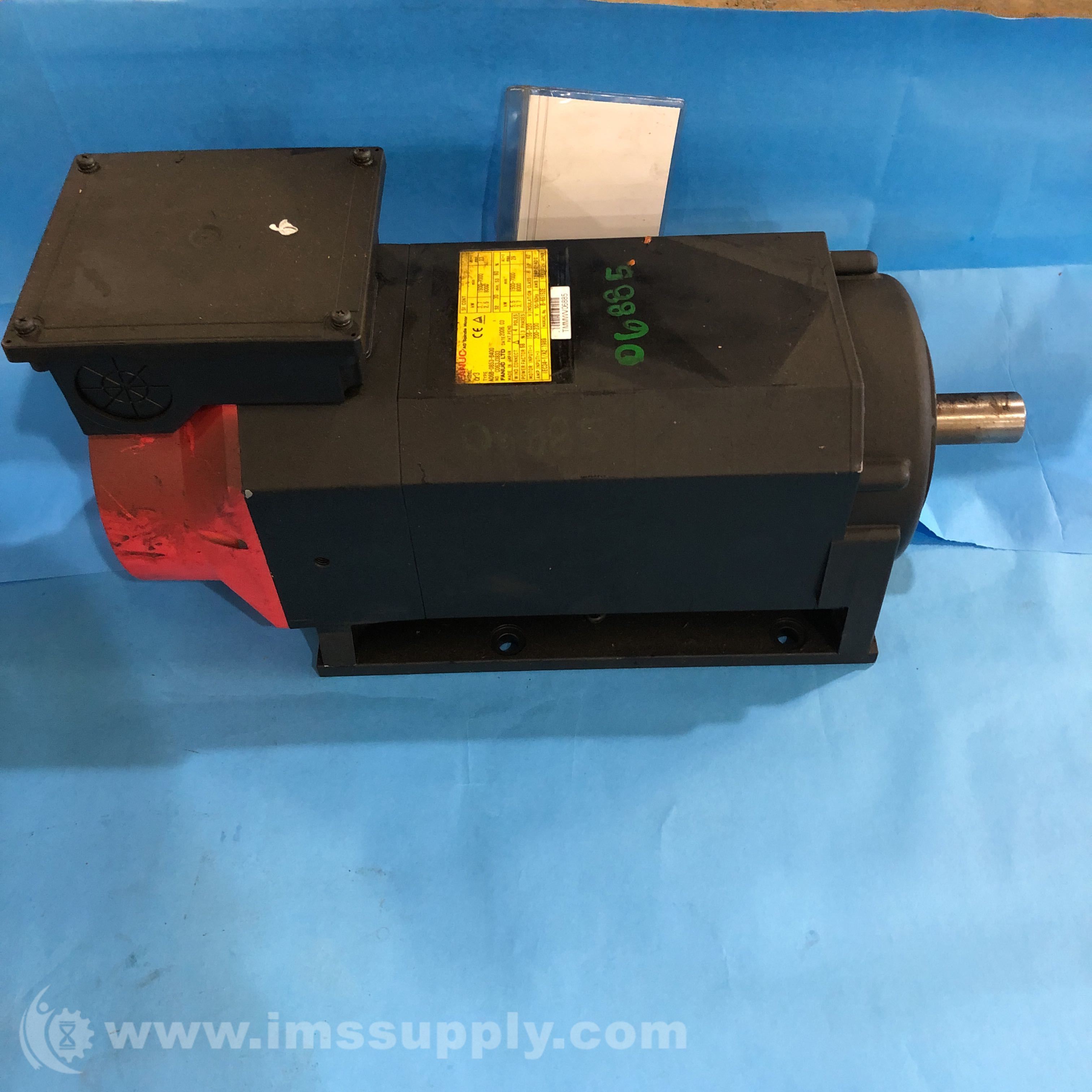

Fanuc A06B-0853-B400 AC Spindle Motor
FANUC AC spindle motor with specifications including model a3, delta winding connection, and various power ratings for different operating conditions.

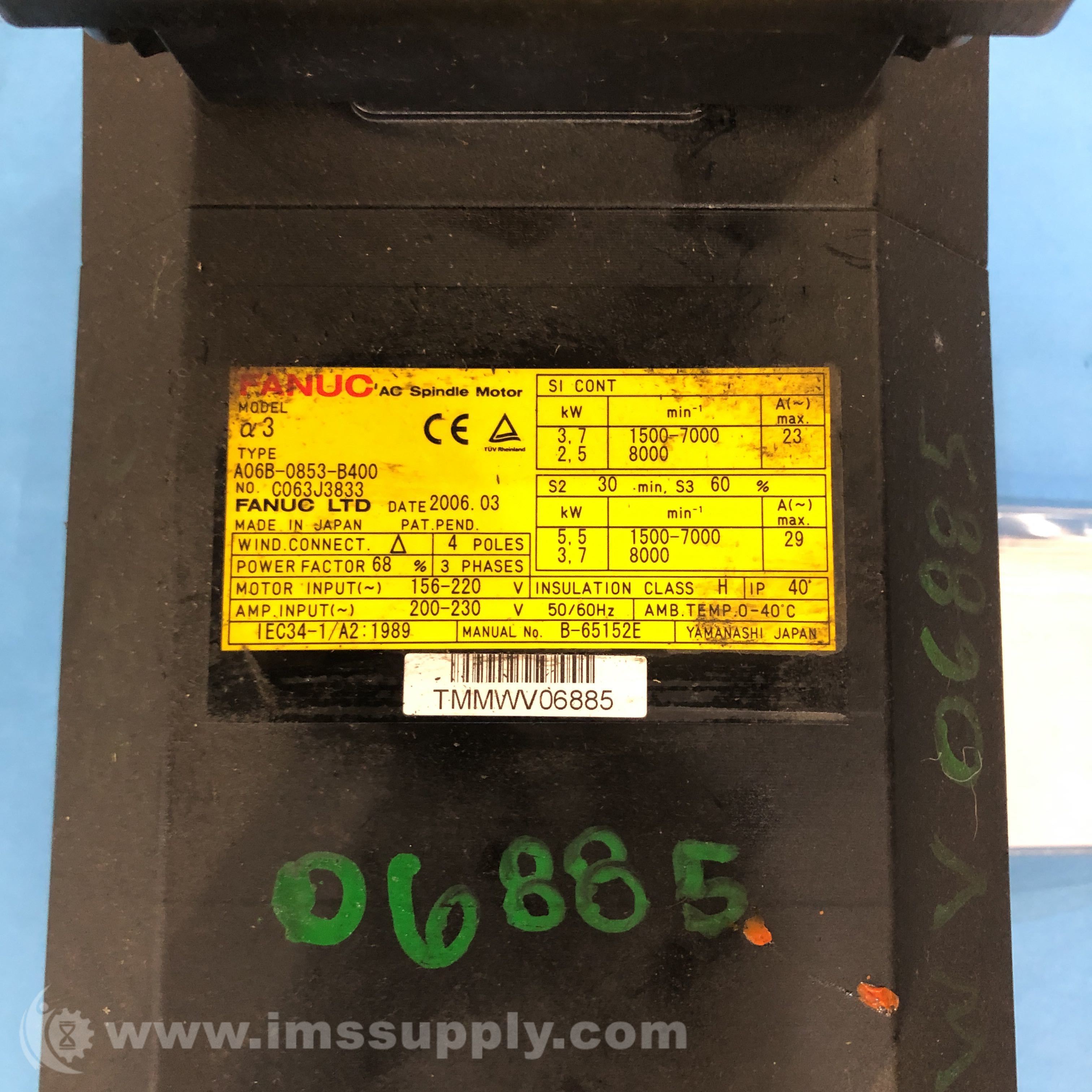

Specifications
- Model: a3
- Type: A06B-0853-B400
- No.: C063J3833
- Date: 2006.03
- Made in: Japan
- Winding Connection: Delta
- Power Factor: 68%
- Poles: 4
- Motor Input Voltage: 156-220 V
- Ampere Input: 200-230 V
- Continuous Power (SI CONT kW): 3.7 kW at 1500-7000 min^-1, max current 23 A
- S2 (30 minutes) Power: 5.5 kW at 1500-7000 min^-1, max current 29 A
- S3 (60%) Power: 2.5 kW at 8000 min^-1; 3.7 kW at 8000 min^-1
- Insulation Class: H
- IP Rating: IP40
- Ambient Temperature Range: 0-40 degrees C
- Standard: IEC34-1/A2:1989
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
