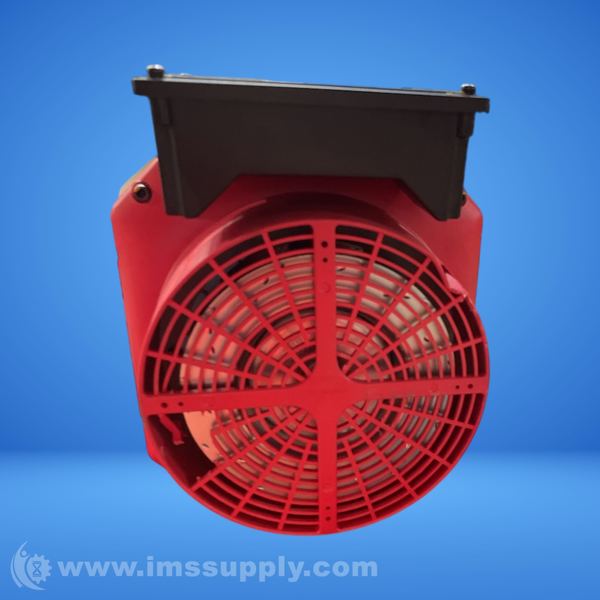

FANUC A06B-0856-B102 SPINDLE MOTOR
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A06B-0856-B102
IMS Product Code: 2143959
Packaging: Sold Individually
Description:
Fanuc A06B-0856-B102 Spindle Motor
Fanuc A06B-0856-B102 a12 Spindle motor. Info for this motor: Rated at S1 cont: 11kw between 1500-6000 rpm – Max 53 amp; S2 30min Cont. 15kw between 1500-6000 rpm. Fitted straight shaft with forward blowing fan, flange mounted with key and standard ALPHA M series sensor.
Specifications
- Rated Power S1: 11kw
- Rated Speed: 1500-6000 rpm
- Max Current: 53 amp
- Rated Power S2: 15kw
- Shaft Type: Straight
- Mounting Type: Flange
- Sensor Type: ALPHA M series
