FANUC A06B-1408-B200 AC SPINDLE MOTOR
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A06B-1408-B200
IMS Product Code: 1953817
Packaging: Sold Individually
Description:

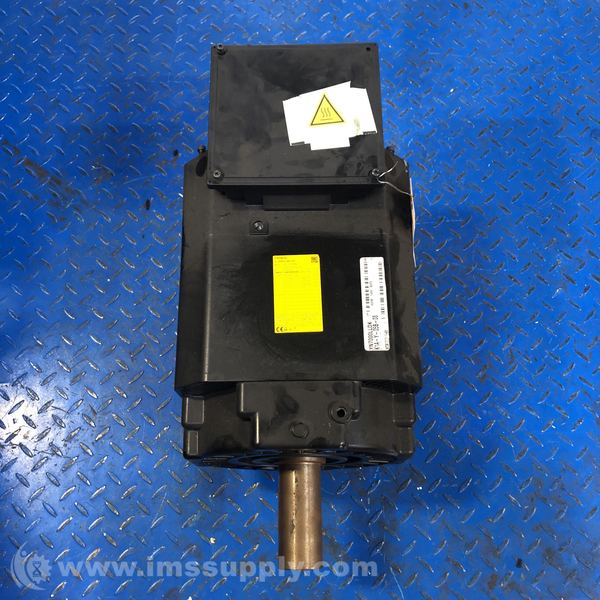

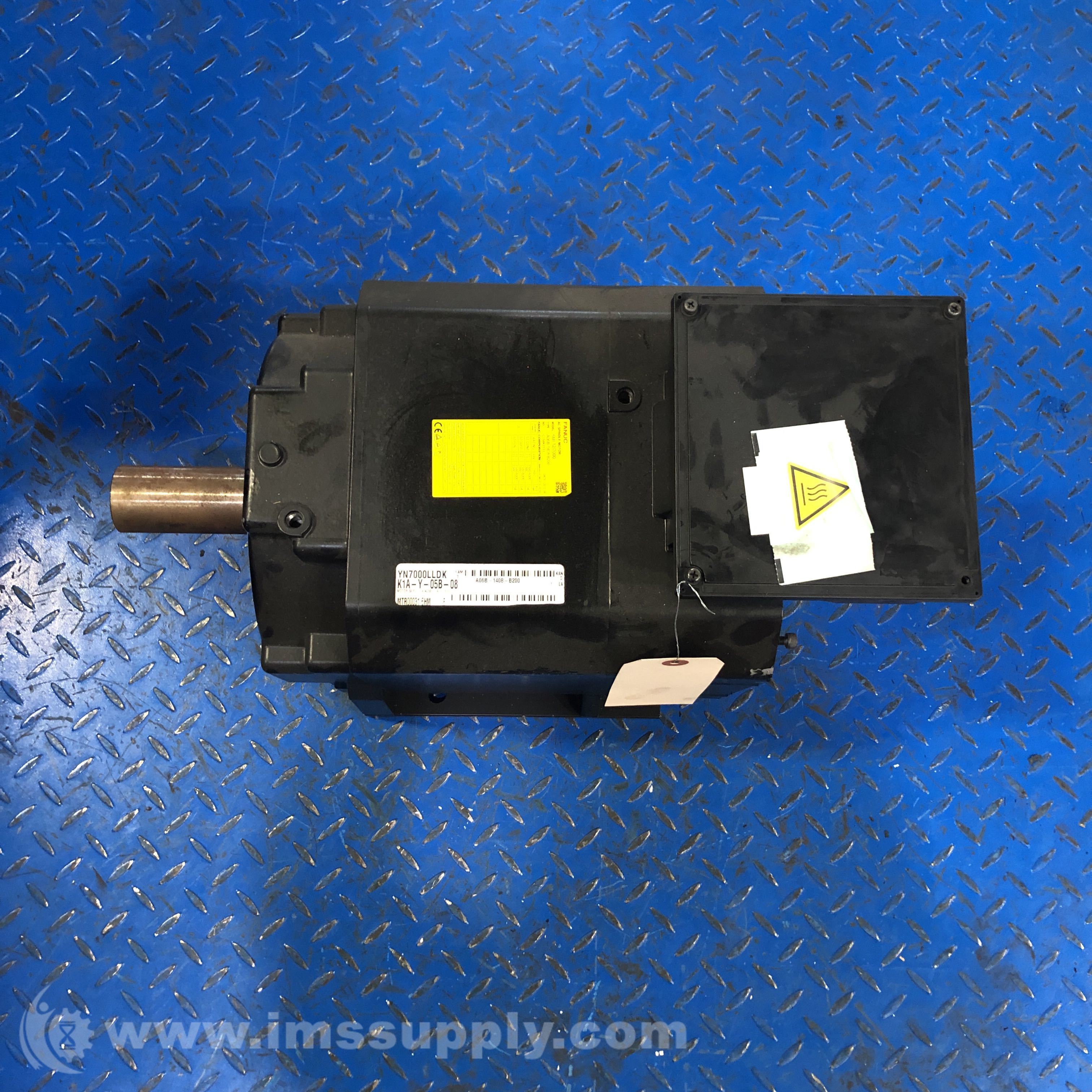

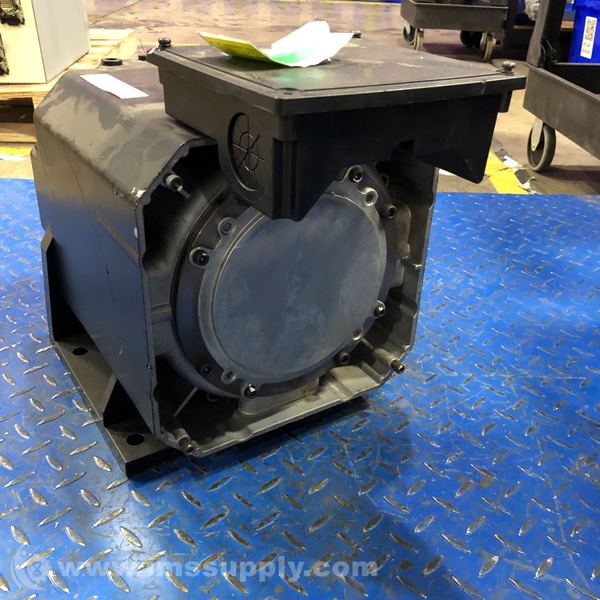

Fanuc A06B-1408-B200 AC Spindle Motor
AC spindle motor designed for precision machining applications.

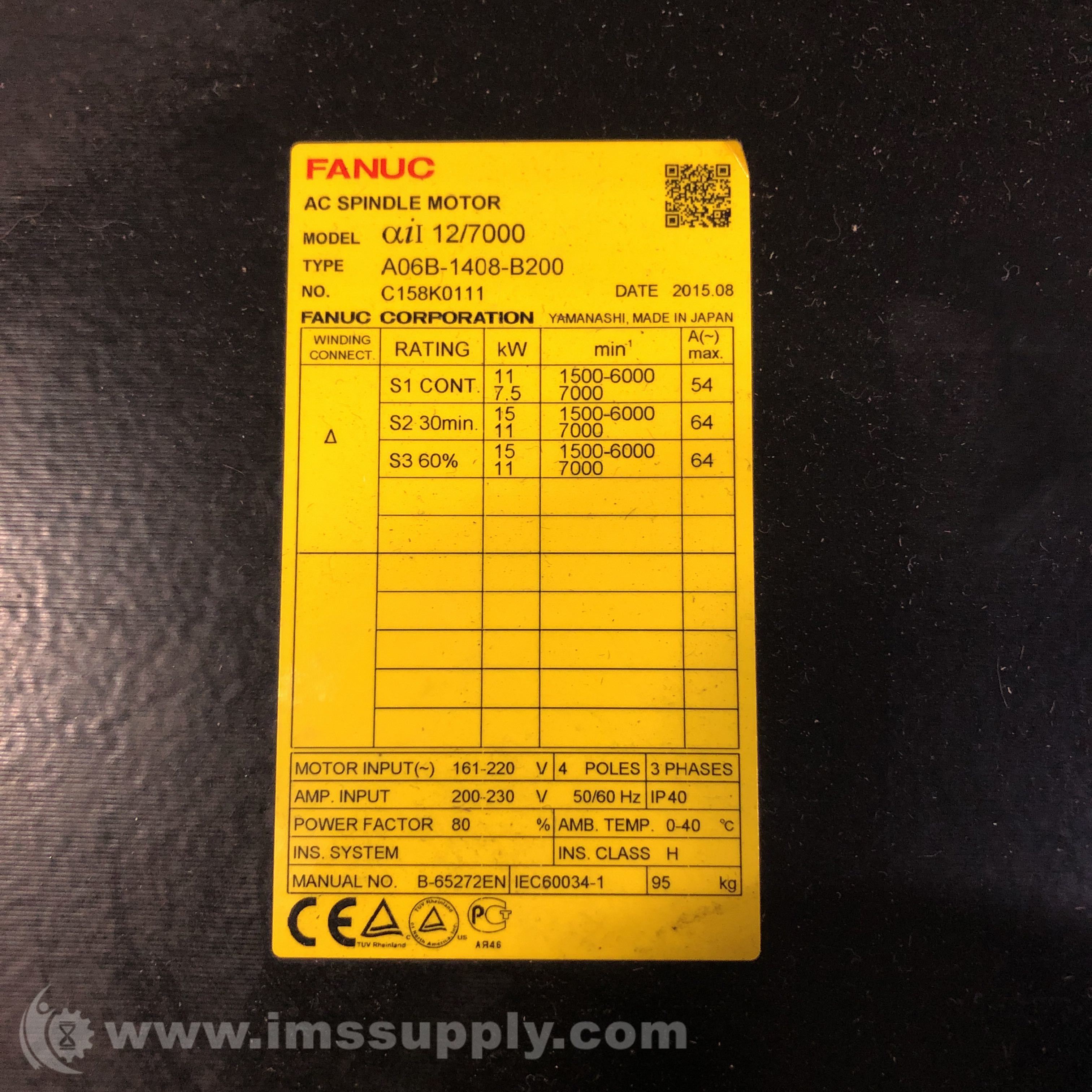

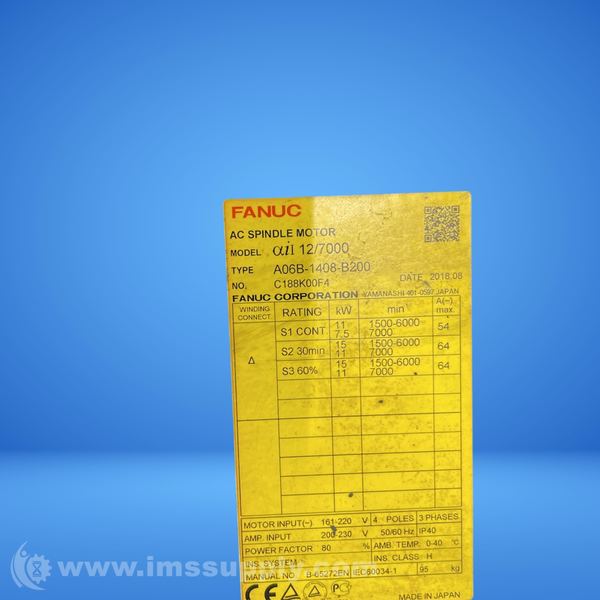

Specifications
- Model: aiI 12/7000
- Type: A06B-1408-B200
- Rating: 11 kW, 1500-6000 min^-1, 54 A(-) max
- S1 Continuous Rating: 7.5 kW, 7000 min^-1
- S2 30min Rating: 11 kW, 1500-6000 min^-1, 64 A(-) max
- S3 60% Rating: 11 kW, 1500-6000 min^-1, 64 A(-) max
- Motor Input: 161-220 V, 4 Poles, 3 Phases
- Amp Input: 200-230 V, 50/60 Hz, IP40
- Power Factor: 80%
- Ambient Temperature: 0-40 degrees C
- Insulation Class: H
- Weight: 95 kg
- Manufacturing Date: 2018.08
- Series: A06B
- Shaft Type: Tapered Shaft (TPR), Keyed Shaft (Key), Slick Shaft (SLK)
- Mounting Configuration: Rear-Mounted (REAR)
