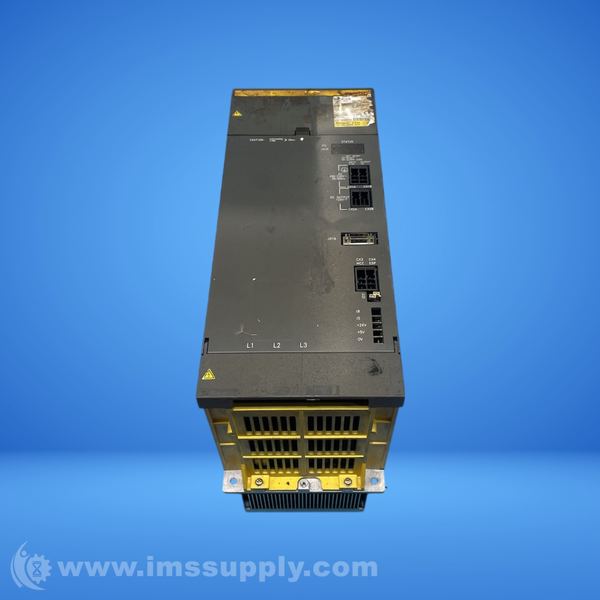

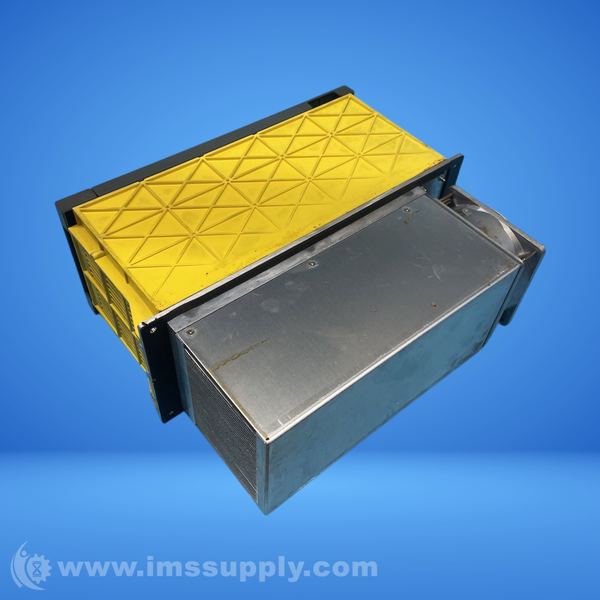

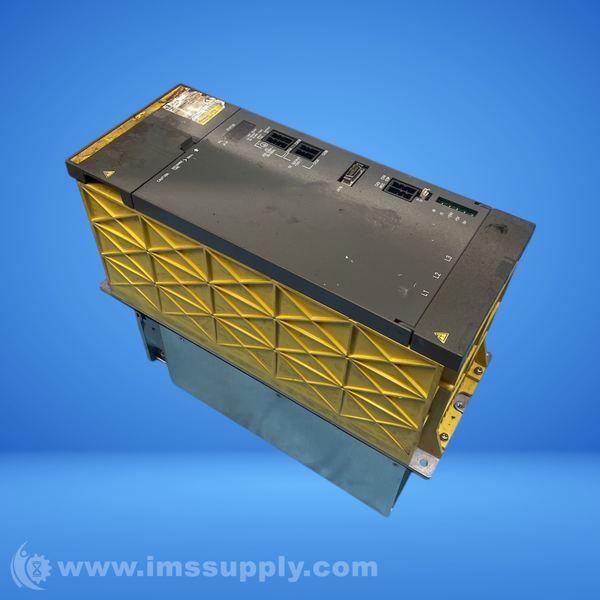

FANUC A06B-6087-H126 POWER SUPPLY MODULE
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A06B-6087-H126
IMS Product Code: 1930125
Packaging: Sold Individually
Description:
Fanuc A06B-6087-H126 Power Supply Module
Power supply module designed for CNC systems, operating at 200-230 VAC input with 106 A rated current.
Specifications
- Input Voltage: 200 - 230 V
- Frequency Range: 50 to 60 Hz
- Rated Output Voltage: 283 - 325 V
- Maximum Output: 29.8 kW
- Efficiency: up to 96%
- Operating Temperature: 0 - 55 degrees C
- Storage Temperature: -20 degrees C to +60 degrees C
- Type: Power Supply Module
- Current Type: AC
- Weight: 9.07 kgs
- Dimensions: 24.00 x 24.00 x 14.00
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 8 hours and 47 minutes.
Used (Special):
Part has cut wires attached
Availability: 2 In Stock
Ships today if ordered in the next 8 hours and 47 minutes.
Used (Special):
Part is missing terminal cover
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 47 minutes.
Used (Special):
Terminal cover is broken and missing display cover, also has cut wires attached
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 47 minutes.
