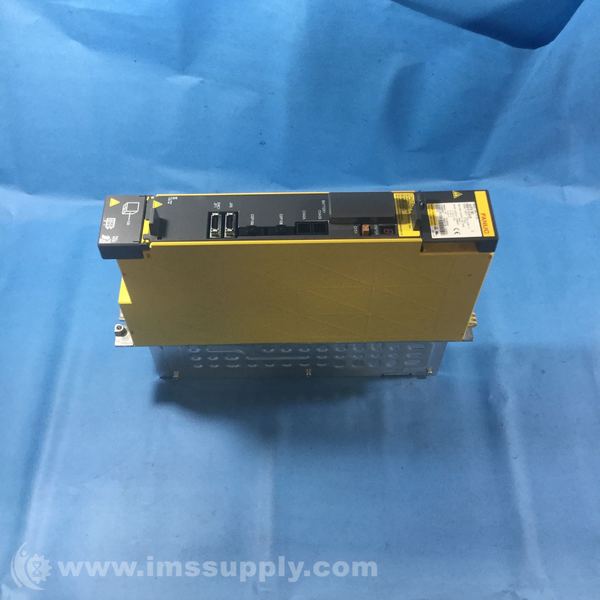

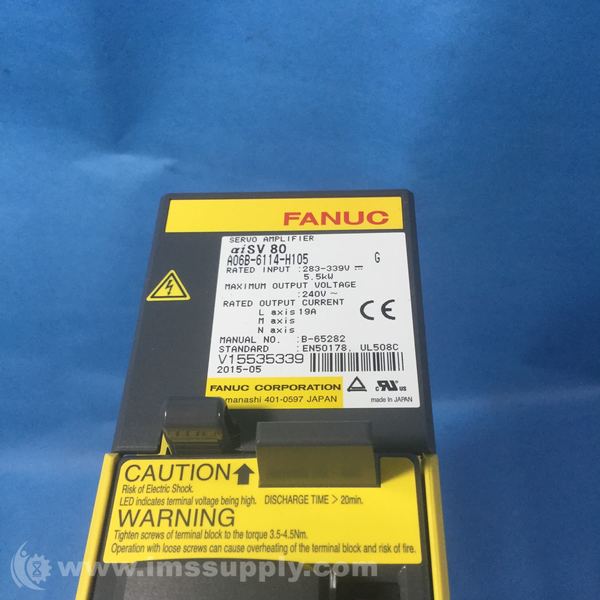

FANUC A06B-6114-H105 SERVO AMPLIFIER MODULE
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A06B-6114-H105
IMS Product Code: 1760474
Packaging: Sold Individually
Description:
Fanuc A06B-6114-H105 Servo Amplifier Module
Servo amplifier module for precise control of servo motors in industrial automation and robotics.
Specifications
- Type: Servo Amplifier Module
- Model: SVM1-80i
- Input Voltage: 283-339 VDC
- Output Voltage: 240 VAC
- Power Output: 5.5 kW
- Rated Output Current: 19A
- Nominal Current Limit: 80A
- Maximum Regenerative Power: 3.5 kW
- Continuous Regenerative Power: 2.5 kW
- Heat Dissipation: 13W
- Width: 130mm
- Height: 310mm
- Depth: 300mm
- Weight: 9.0 kg
- Ambient Temperature Range: 0 degrees C to 55 degrees C
- Relative Humidity: 10% to 95%
- Operating Altitude: 1000 meters
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 12 minutes.
Used (Special):
Part has 2 wires connected
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 12 minutes.
