FANUC A06B-6240-H209 SERVO AMPLIFIER
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A06B-6240-H209
IMS Product Code: 2133868
Packaging: Sold Individually
Description:

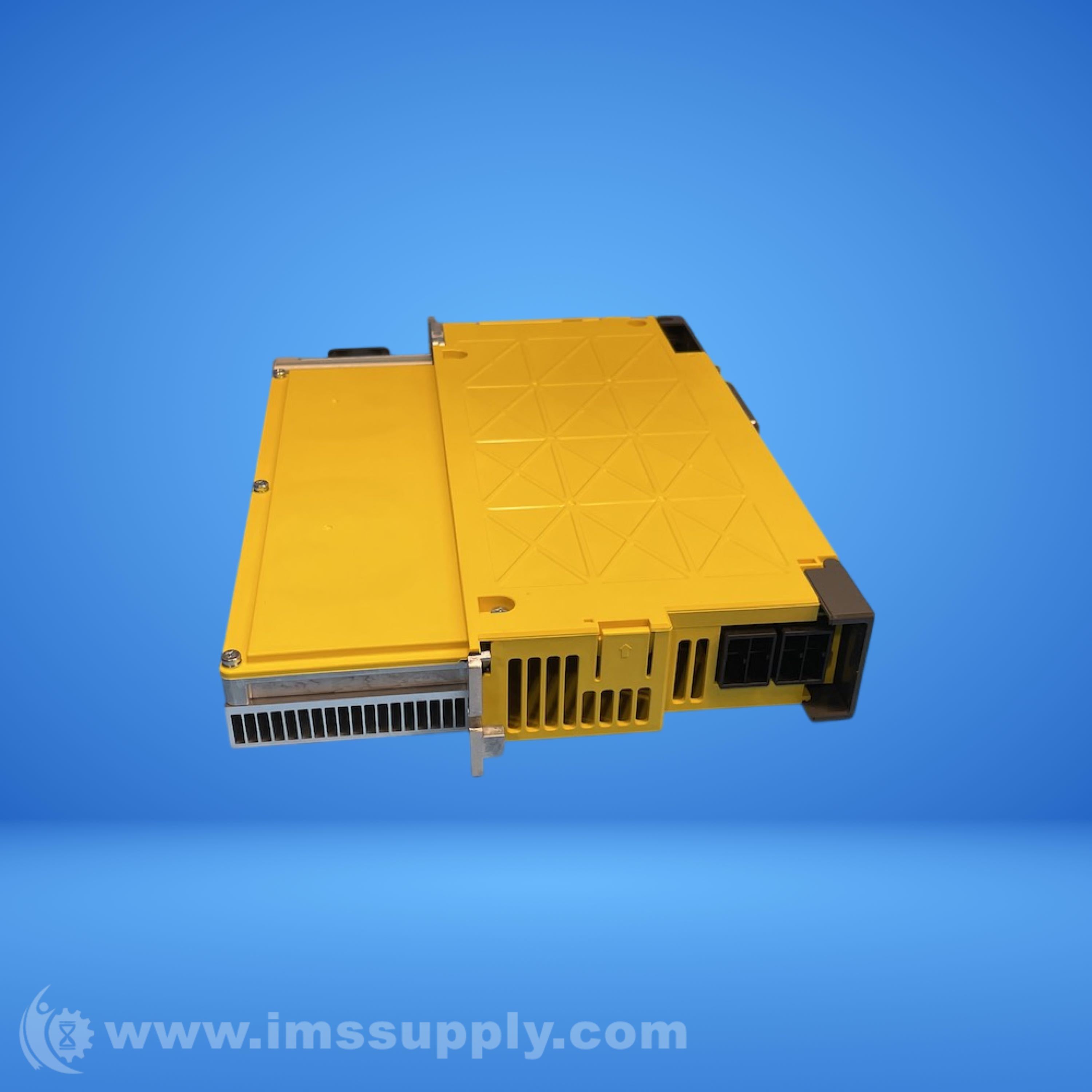

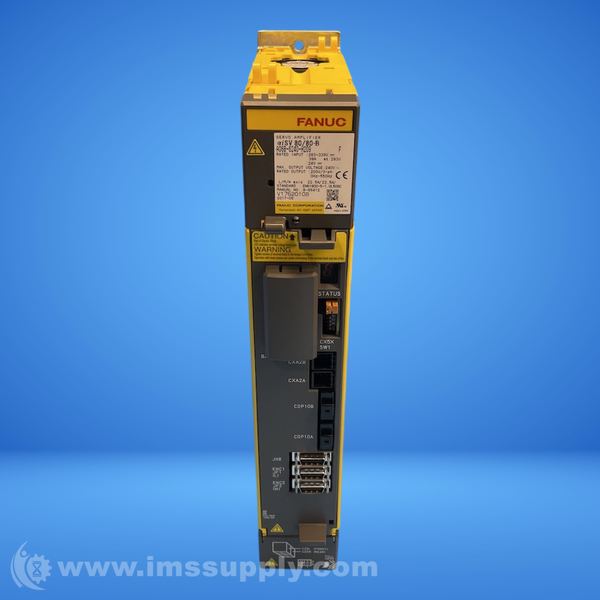

Fanuc A06B-6240-H209 Servo Amplifier
This is a servo amplifier module from FANUC's A06B series, designed for 3-phase operation. It delivers an output voltage of 200 to 240 VAC and supports a frequency range of up to 550 Hz.
Specifications
- Amps: 80/80
- Amp Width: 60mm
- Voltage Input: 283-339 VDC
- Input Current: 39 A at 283 VDC
- Power Supply: Three-phase AC
- Maximum Output Voltage: 240 VAC
- Output Voltage: 200 to 240 VAC
- Frequency Range: up to 550 Hz
- Ambient Temperature (Operating): 0 to 55 degrees C
- Relative Humidity (Non-condensing): 90% or less
- Weight: 8 kg
- High-Speed Response: Yes
- Overload Protection: Yes
- Built-in Diagnostics: Yes

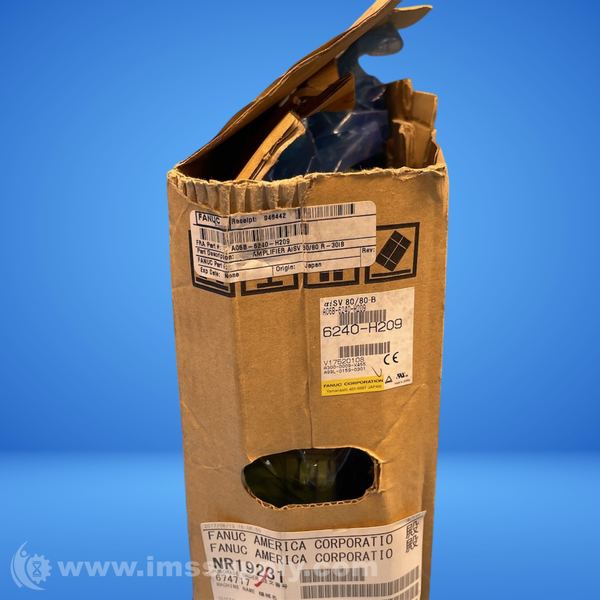

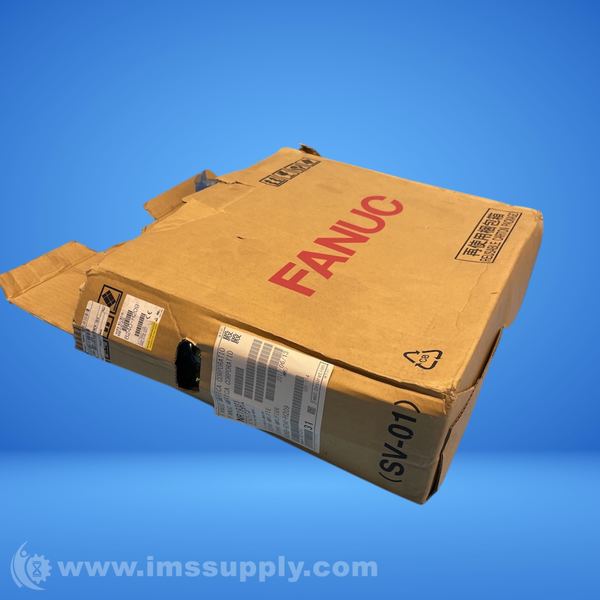

New - Missing Box (Special):
Part has instruction manual and hardware.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 32 minutes.
