FANUC A860-0360-V501 INCREMENTAL ROTARY ENCODER
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A860-0360-V501
IMS Product Code: 1913277
Packaging: Sold Individually
Description:

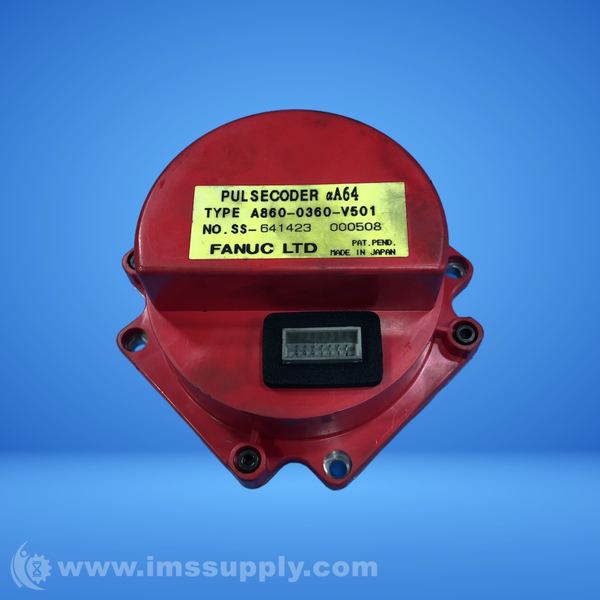

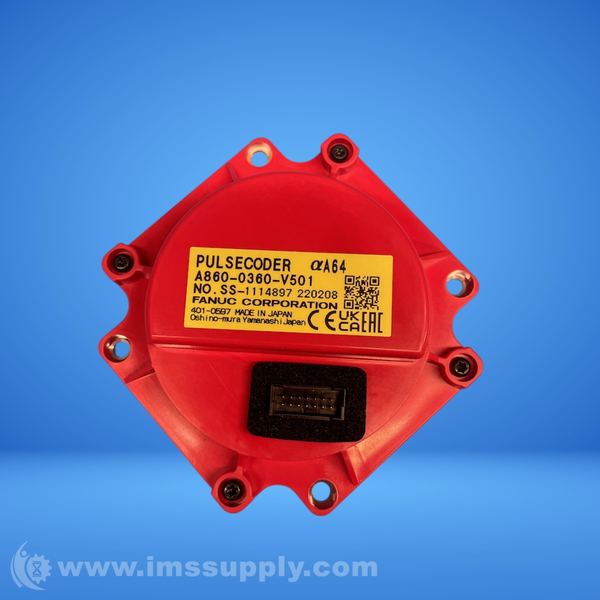

Fanuc A860-0360-V501 Incremental Rotary Encoder
Incremental rotary encoder with 64,000 counts per revolution resolution, 15-pin connector, 5V DC supply, IP67 protection rating. Used for position and speed feedback in CNC machines and industrial automation.
Specifications
- Encoder Type: Incremental rotary (Pulsecoder)
- Resolution: 64,000 counts per revolution
- Output Signals: Differential A, B, Z quadrature
- Interface: 15-pin male circular connector
- Supply Voltage: 5 V DC � 10%
- Operating Temperature: -10 degrees C to +70 degrees C
- Protection Rating: IP67 (sealed housing)
- Shaft Type: Tapered Shaft (TPR)
- Shaft Size: 6 mm or 14 mm (conflicting specs, exact size uncertain)
- Pulses per Revolution: 64,000 PPR
- Max Speed: 6000 rpm
- Housing Material: Aluminium
- Mounting Type: Direct Motor Mount
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 17 minutes.
New - Open Box (Special):
item comes with attachments. one attachment has a part number a05b-1329-k123
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 17 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 17 minutes.
