FESTO 4745215 BALL VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: 4745215
IMS Product Code: 2159488
Packaging: Sold Individually
Description:

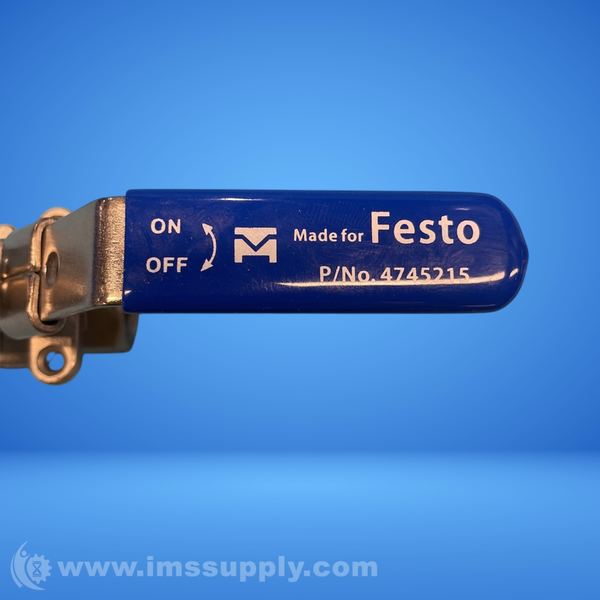

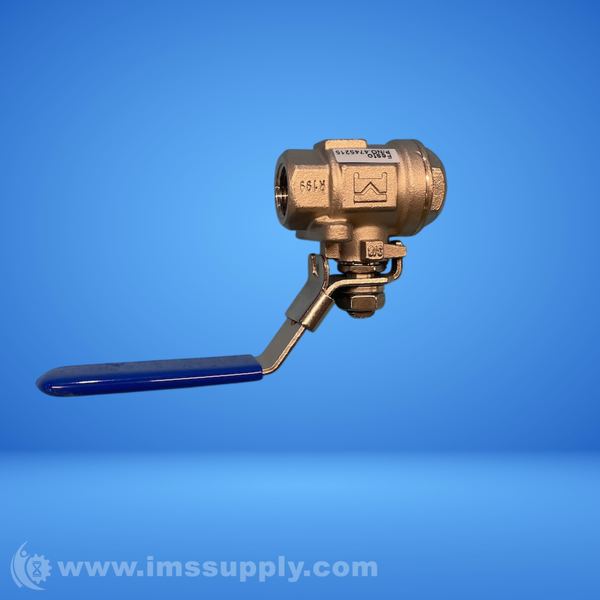

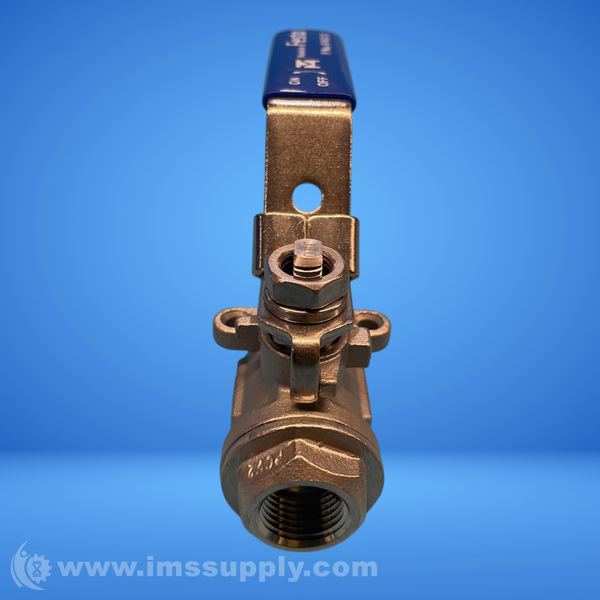

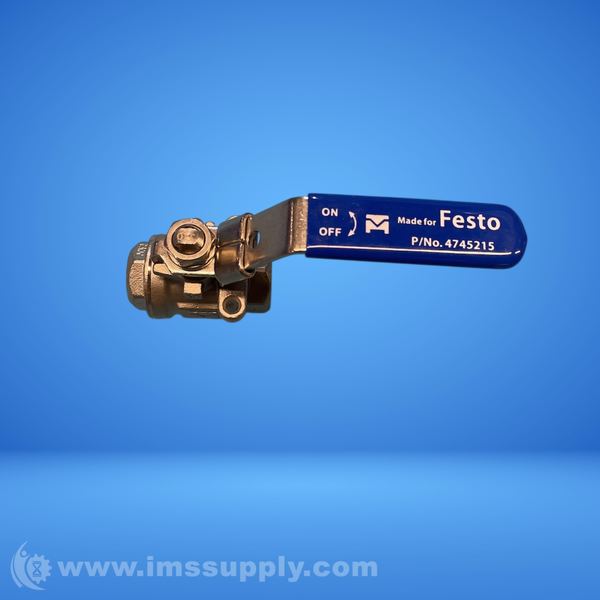

Festo 4745215 Ball Valve
Manually operated pneumatic ball valve made of stainless steel with 3/8" NPT connection.
Specifications
- Type: Ball valve
- Nominal Width: 3/8"
- Pressure Rating: PN63
- Material: 316 SS
- Operation: Manual
- Valve Type: 2/2-way ball valve
- Sealing Principle: Soft sealing
- Maximum Operating Pressure: 8 bar
- Body Material: Stainless Steel
- Maximum Flow Rate: 366.67L/min
- Minimum Operating Temperature: -5�C
- Maximum Operating Temperature: 50�C
- Length: 50.8mm
- Standards/Approvals: ASME B1.20.1, RoHS, CRN
- Thread Size: 3/8 in
- Series: VZBE
- Material housing: Stainless steel casting
- Material seat seal: PTFE
- Material ball: Stainless steel casting
- Material shaft: High-alloy stainless steel
- Product weight: 200G
