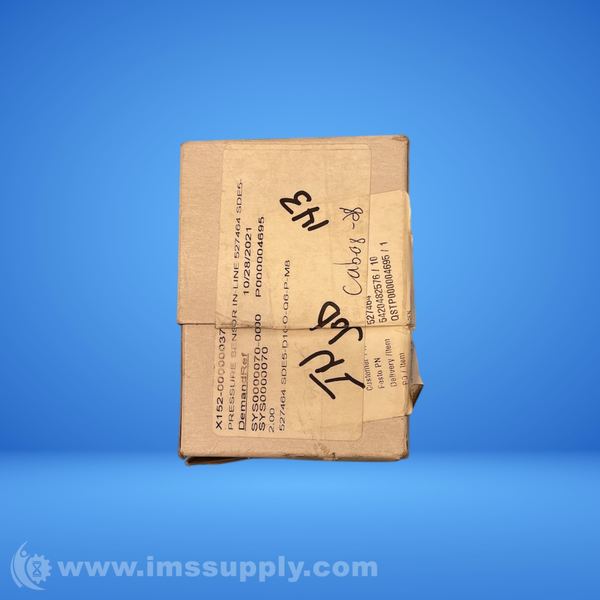

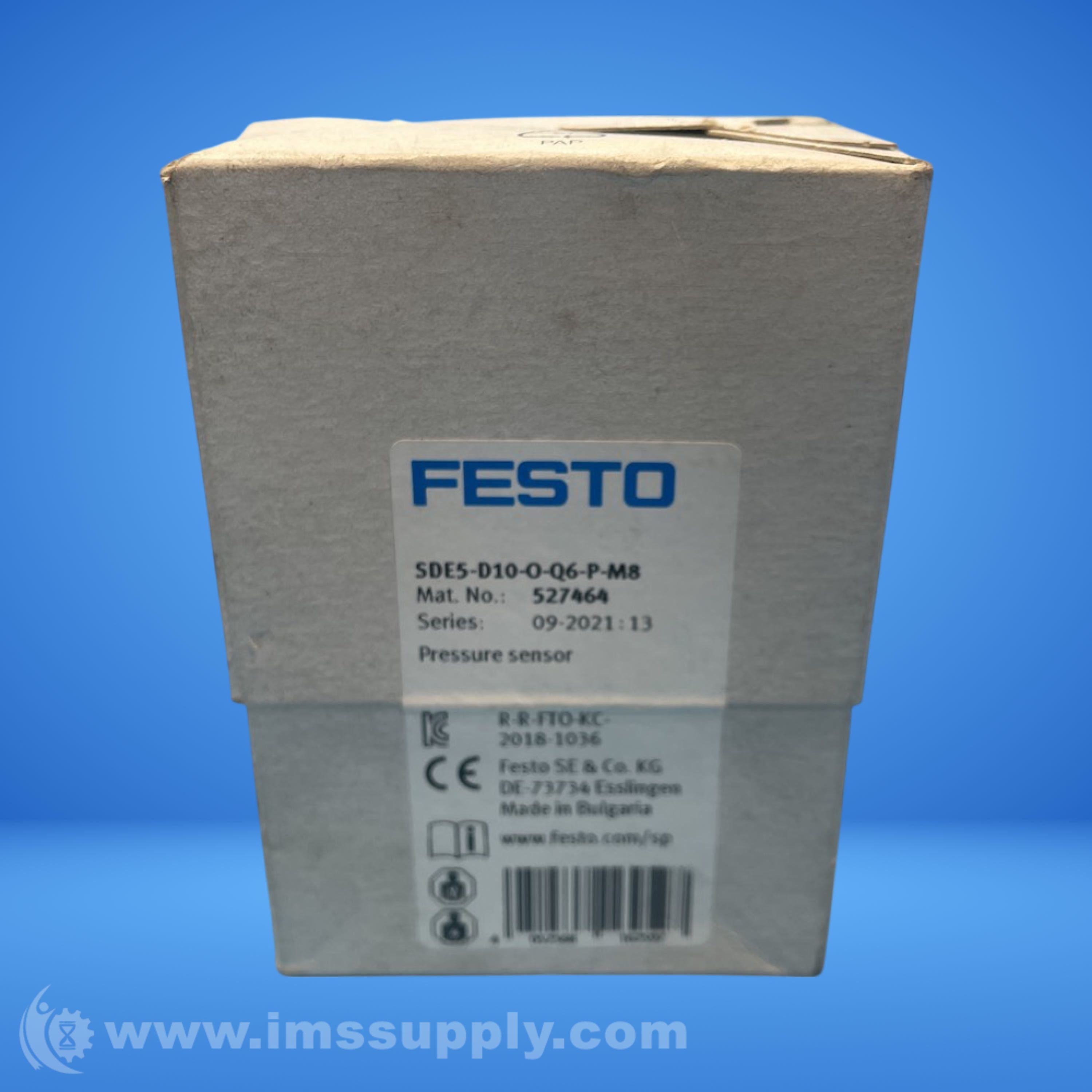

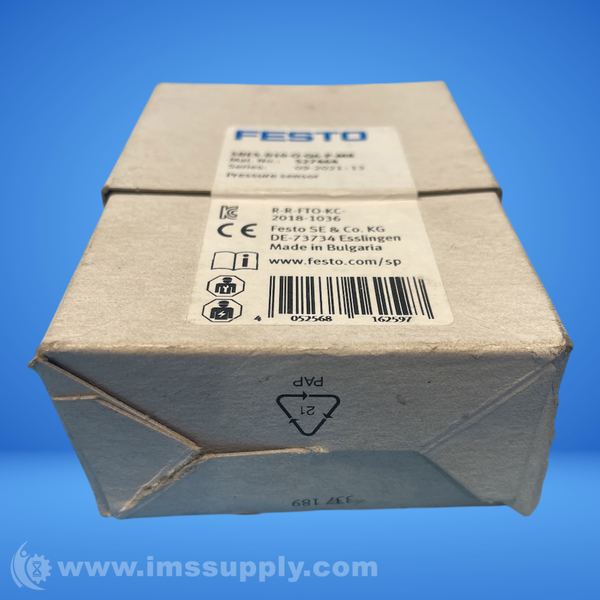

FESTO 527464 PRESSURE SENSOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: 527464
IMS Product Code: 2129405
Packaging: Sold Individually
Description:
Festo 527464 Pressure Sensor
Pressure sensor with PNP output, 0-10 bar sensing range, M8 connection
Specifications
- Series: SDE5
- Sensing Range: 0 to 10 bar
- Output: PNP
- Voltage Rating: 15 to 30 VDC
- Amperage Rating: 100 mA
- Connection Size: M8 x 1
- Temperature Rating: 50 deg C
- Material: Polyamide/Polyoxymethylene
- Dimensions: 73.5 mm L x 16 mm W x 24.5 mm H
- Pressure Measuring Range: 0 ... 10 bar
- Pressure Inlet: Relative pressure
- Output Function: Threshold value with fixed hysteresis, 1 teach-in point, N/O contact
- Pneumatic Connection: Push-in connector 6 mm, at both ends
- Electrical Connection: Plug M8, 3-pin
- Measured Parameter: Relative pressure
- Measurement Process: Piezoresistive pressure sensor
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Medium Temperature: 0 to 50 degrees C
- Ambient Temperature: 0 to 50 degrees C
- Repeatability: 0.3 %FS
- Temperature Coefficient: 0.05 %FS/K
- Control Output: PNP
- Switch Function: Threshold value with fixed hysteresis
- Switching Element Function: NO contact
- Max. Output Current: 100 mA
- Short Circuit Resistance: yes
- Operating Voltage Range DC: 15 to 30 V
- Reverse Polarity Protection: for all electrical connections
- Fastening Type: With Accessories
- Installation Position: arbitrary
- Product Weight: 19 g
- Housing Material: PA POM
- Switching Status Indicator: LED yellow
- Protection Category: IP40
- Corrosion Resistant Class KBK: 2 - moderate corrosion stress
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
