FESTO ADVU-100-60-A-P-A PNEUMATIC CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVU-100-60-A-P-A
IMS Product Code: 1911888
Packaging: Sold Individually
Description:

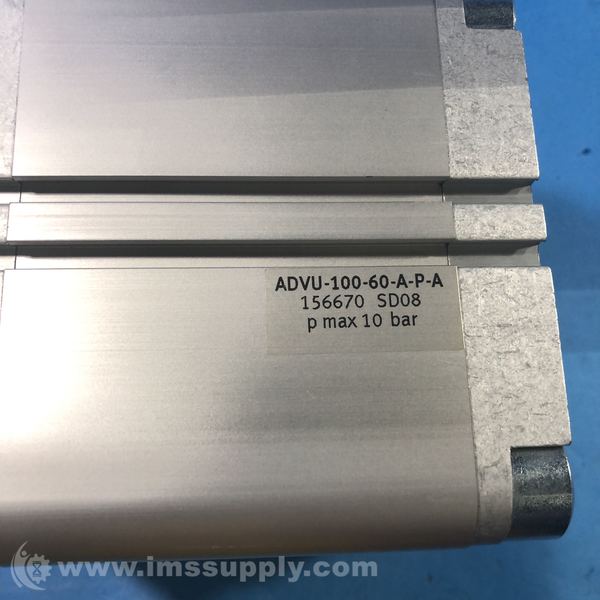

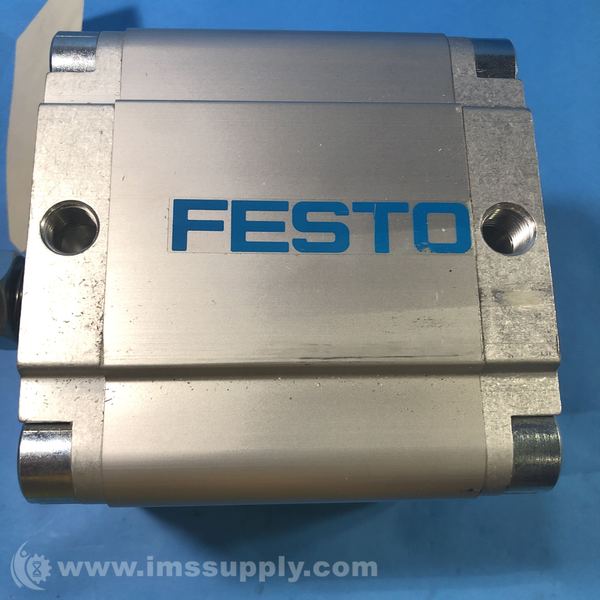

Festo ADVU-100-60-A-P-A Pneumatic Cylinder
Double-acting pneumatic cylinder with piston diameter 100 mm and stroke 60 mm.
Specifications
- Piston Diameter: 100 mm
- Stroke: 60 mm
- Mode of Operation: Double-acting
- Design Structure: Piston
- Position Sensing: For proximity sensing
- End Position Cushioning: Pneumatic cushioning, adjustable at both ends
- Mounting Type: With through-hole
- Pneumatic Connection: G1/8
- Operating Pressure: 0.6 ... 12 bar
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient Temperature: -20 ... 80 °C
- Barrel Material: Wrought Aluminium Alloy
- Piston Rod Material: Stainless Steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
