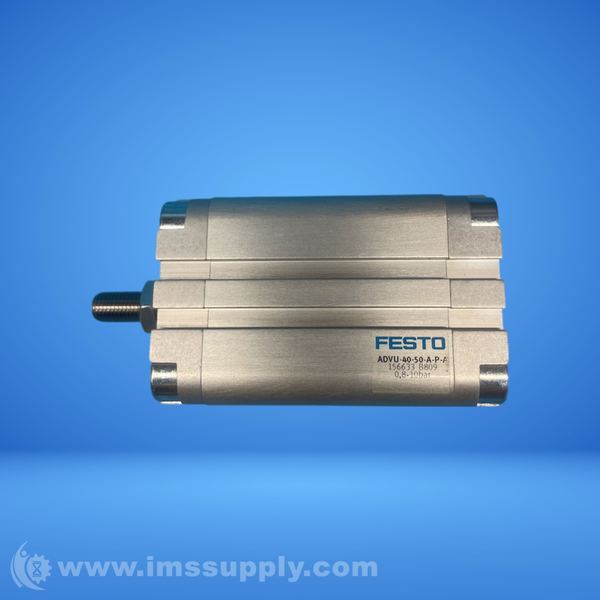

FESTO ADVU-40-50-A-P-A COMPACT CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVU-40-50-A-P-A
IMS Product Code: 2126738
Packaging: Sold Individually
Description:
Festo ADVU-40-50-A-P-A Compact Cylinder
Double-acting compact cylinder with 40mm piston diameter and 50mm stroke
Specifications
- Stroke: 50 mm
- Piston diameter: 40 mm
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Mode of operation: Double-acting
- Piston rod end: External thread
- Operating pressure: 0.8 bar … 10 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC): 2 – Moderate corrosion stress
- Ambient temperature: -20 degrees C … 80 degrees C
- Pneumatic connection: G1/8
- Material of cylinder barrel: Wrought aluminum alloy
- Material of piston rod: High-alloy steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
