FESTO ADVU-63-40-P-A COMPACT CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVU-63-40-P-A
IMS Product Code: 1751924
Packaging: Sold Individually
Description:

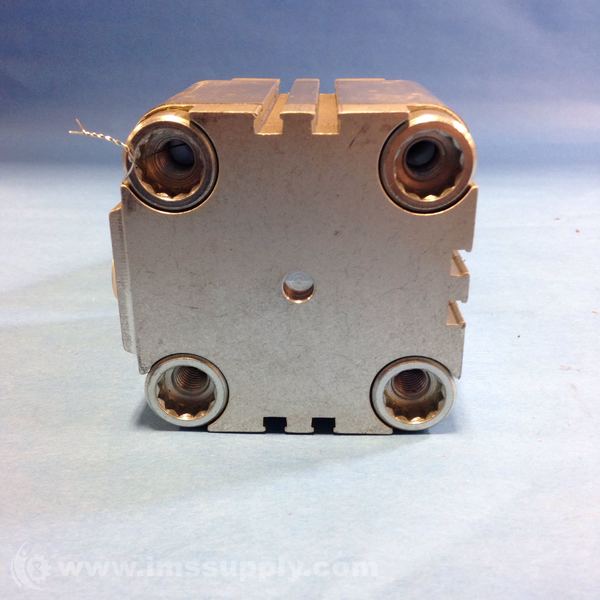

Festo ADVU-63-40-P-A Compact Cylinder
Double-acting compact cylinder with 63mm piston diameter, 40mm stroke, and female thread.
Specifications
- Piston diameter: 63 mm
- Stroke: 40 mm
- Cushioning: Elastic cushioning rings/plates at both ends
- Mode of operation: Double-acting
- Piston-rod end: Female thread
- Operating pressure: 0.06MPA to 1MPA (0.6BAR to 10BAR, 8.7PSI to 145PSI)
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class: 2 - Moderate corrosion stress
- Theoretical force at 0.6 mPa (6 bar, 87 psi), return stroke: 1750N
- Theoretical force at 0.6 mPa (6 bar, 87 psi), advance stroke: 1870N
- Moving mass for 0 mm stroke: 134G
- Additional moving mass per 10 mm stroke: 16G
- Basic weight for 0 mm stroke: 1059G
- Additional weight per 10 mm stroke: 107G
- Type of mounting: Either: With through-hole or With accessories
- Material collar screws: Galvanised steel
- Material cover: Wrought aluminium alloy
- Material dynamic seals: NBR, TPE-U(PU)
- Material piston rod: High-alloy steel
- Material cylinder barrel: Wrought aluminium alloy
- Ambient temperature: -20GC to 80GC
- Pneumatic connection: G1/8
- Weight: 0.91 kgs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
