FESTO DFM-40-80-P-A-KF GUIDED DRIVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-40-80-P-A-KF
IMS Product Code: 2135227
Packaging: Sold Individually
Description:

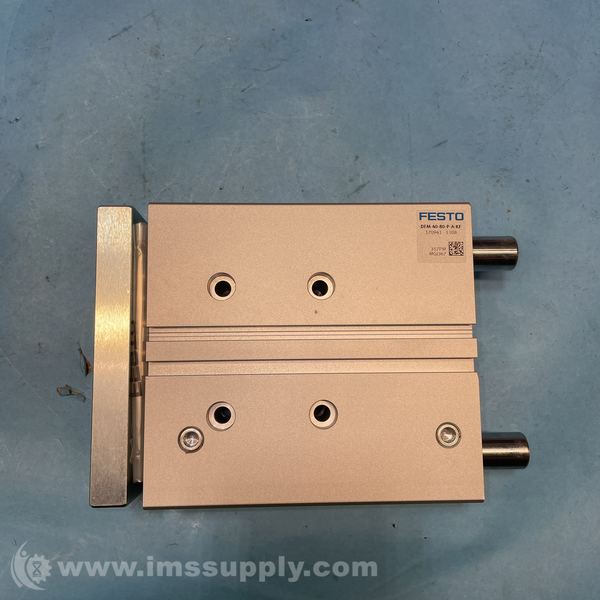

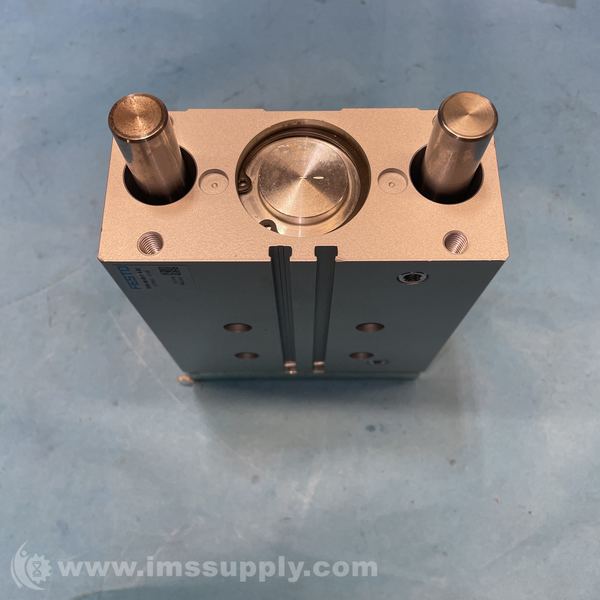

Festo DFM-40-80-P-A-KF Guided Drive
Pneumatic guided drive, double acting, 40mm diameter, 80mm stroke, with cushioning and position sensing
Specifications
- Diameter: 40mm
- Stroke: 80mm
- Mode of Operation: double acting
- Cushioning: pneumatic cushioning, self-adjusting
- Position Sensing: via proximity sensor
- Design Structure: guided drive
- Operating Pressure: 0.6 ... 12 bar
- Operating Medium: compressed air, filtered, lubricated or unlubricated
- Ambient Temperature: -20 ... 80 degrees C
- Size: 40
- Pneumatic Connection: M5
- Design: piston
- Piston Rod: threaded
- Mounting: A:Head flange
- K:Intermediate flange for proximity sensor
- Type of Mounting: Either with or without dowel pins
- With Through-Hole: Material:Nickel-plated
- Corrosion Resistance Class CRC: 2 - Moderate corrosion stress
- Max. Force Fy: 1380 N
- Max. Force Fz: 1380 N
- Max. Torque Mx: 33 Nm
- Max. Torque My: 33 Nm
- Max. Torque Mz: 33 Nm
- Theoretical Force at 6 bar, Advancing: 754 N
- Theoretical Force at 6 bar, Retracting: 565 N
- Moving Mass: 665 g
- Product Weight: 1045 g
- Centre of Gravity of Moving Mass: 29.5 mm

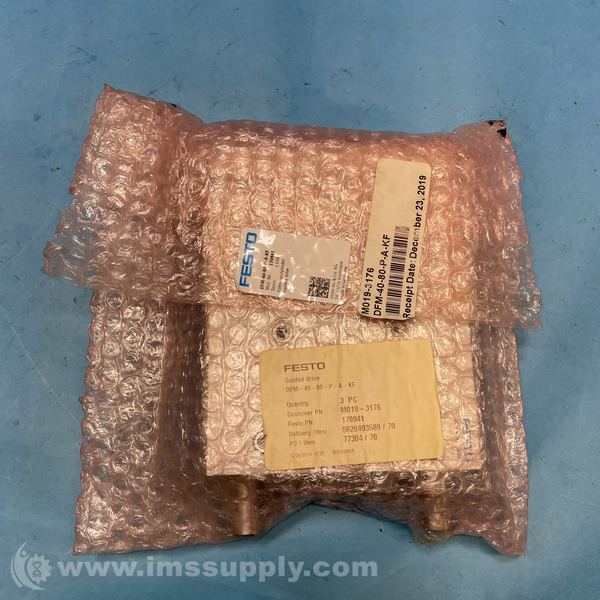

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
