FESTO DFM-50-50-P-A-GF GUIDED DRIVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-50-50-P-A-GF
IMS Product Code: 2137013
Packaging: Sold Individually
Description:

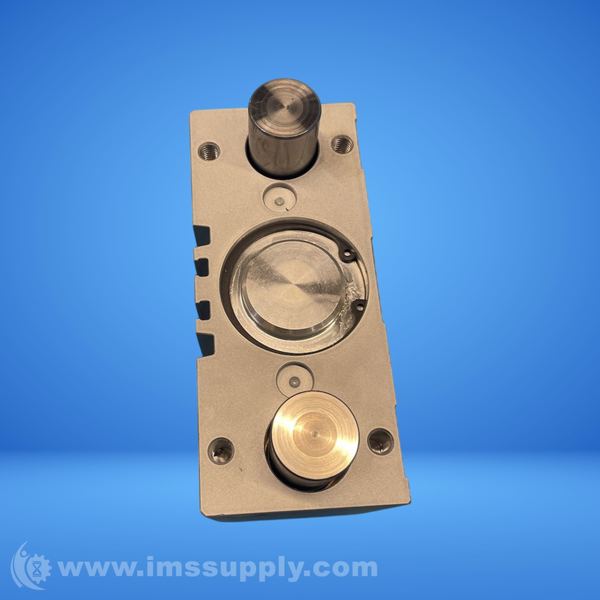

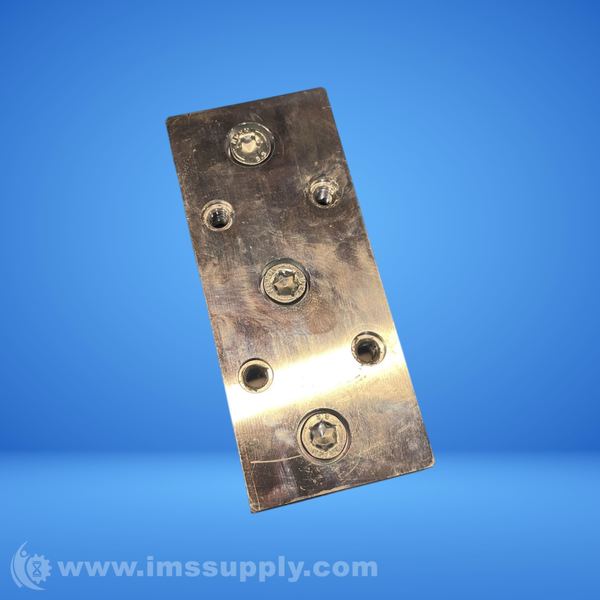

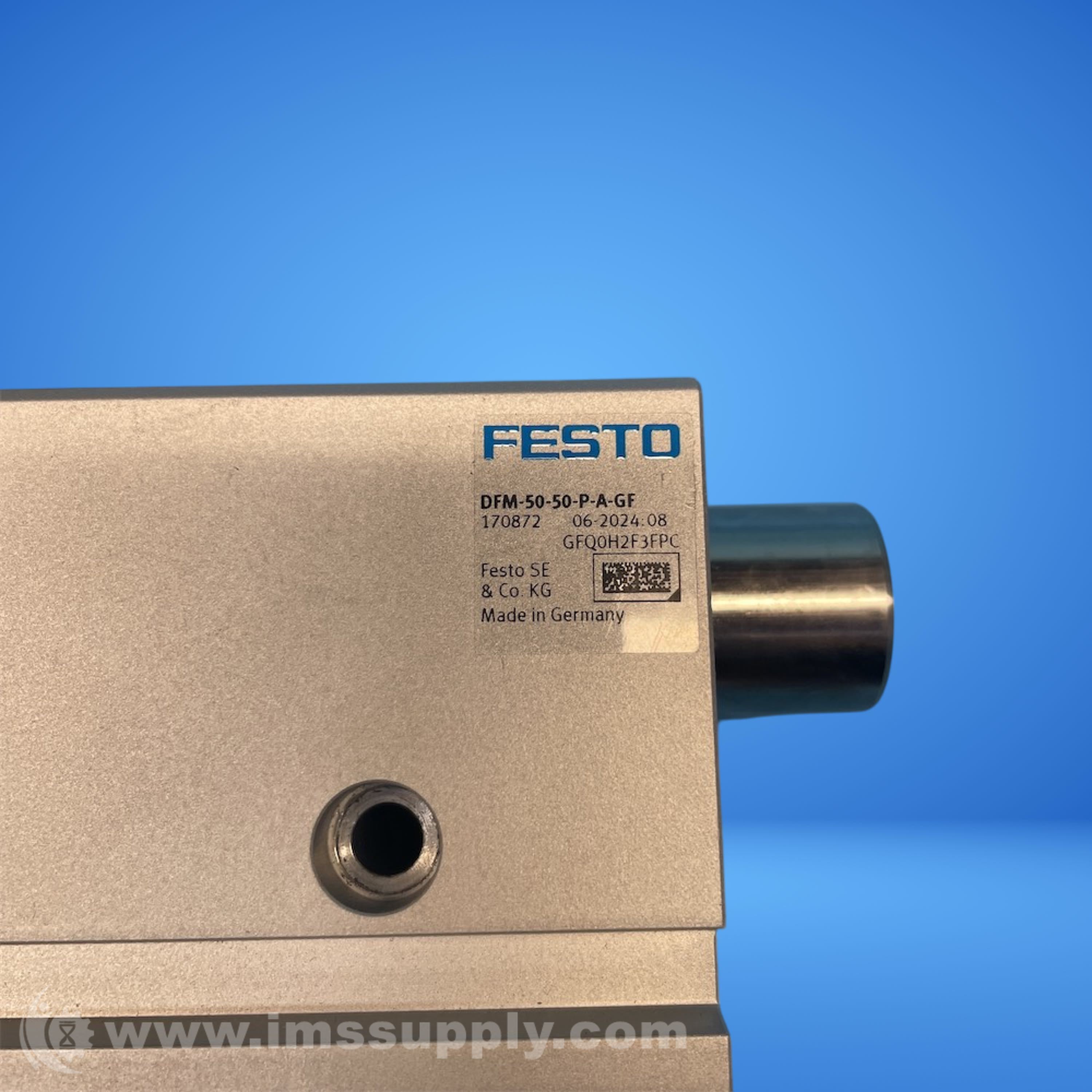

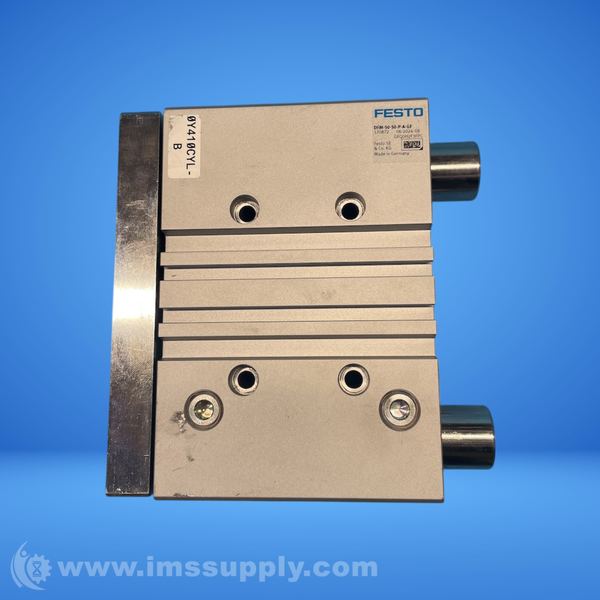

Festo DFM-50-50-P-A-GF Guided Drive
Double-acting guided drive with integrated guide, 50mm piston diameter, 50mm stroke, yoke operating mode, and flexible cushioning at both ends.
Specifications
- Centre of gravity distance from working load to yoke plate: 50 mm
- Stroke: 50 mm
- Piston diameter: 50 mm
- Operating mode of drive unit: Yoke
- Cushioning: P: Flexible cushioning rings/plates at both ends
- Assembly position: Any
- Guide: Plain-bearing guide
- Design structure: Guide
- Position detection: For proximity sensor
- Operating pressure: 1 … 10 bar
- Max. speed: 0.6 m/s
- Mode of operation: double-acting
- Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4]
- Theoretical force at 0.6 MPa, advance stroke: 1178 N
- Theoretical force at 0.6 MPa, return stroke: 1057 N
- Corrosion resistance class: 1
- Max. force Fy: 1533 N
- Max. force Fz: 1533 N
- Max. moment Mx: 84.33 Nm
- Max. moment My: 38.33 Nm
- Max. moment Mz: 38.33 Nm
- Moving mass: 2254 g
- Product weight: 4085 g
- Ambient temperature: -20 to 80 degrees C
- Pneumatic connection: G1/4
- Series: DFM
- Mounting type: Screw
- Cylinder type: Guide Cylinder
- Seal material: NBR/PUR
- Piston rod material: Stainless Steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
