FESTO DFM-80-25-P-A-KF GUIDED DRIVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-80-25-P-A-KF
IMS Product Code: 1833782
Packaging: Sold Individually
Description:

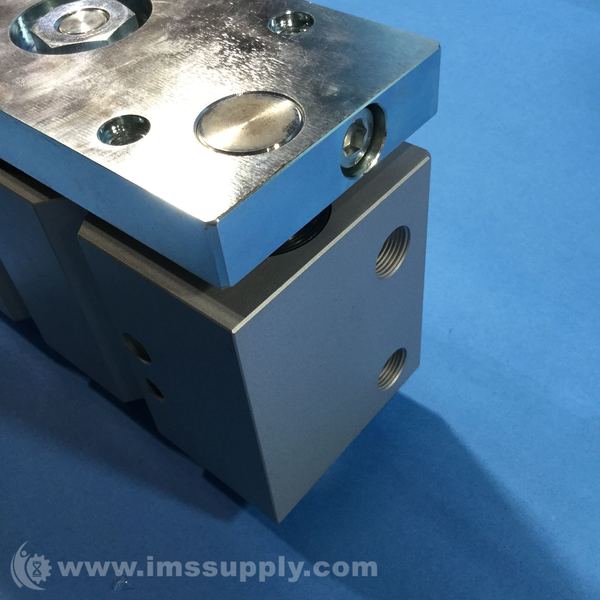

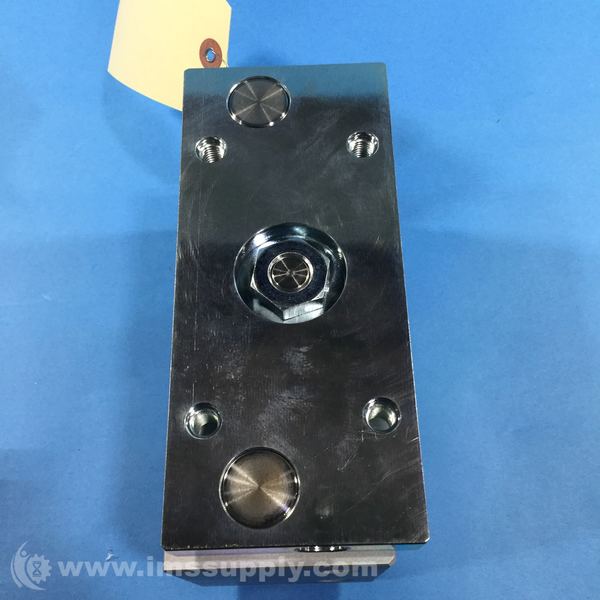

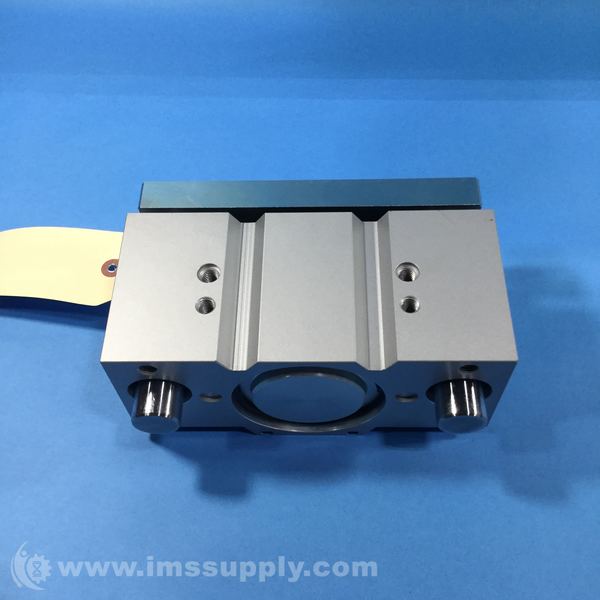

Festo DFM-80-25-P-A-KF Guided Drive
Double-acting guided drive with 80mm piston diameter and 25mm stroke. Features recirculating ball bearing guide and elastic cushioning at both ends.
Specifications
- Stroke: 25mm
- Piston diameter: 80 mm
- Operating pressure: 0.5 bar ... 10 bar
- Max. speed: 0.4 m/s
- Mode of operation: Double-acting
- Guide: Recirculating ball bearing guide
- Cushioning: Elastic cushioning rings/plates at both ends
- Material - Cover: Wrought aluminium alloy
- Material - Seals: NBR
- Material - Housing: Wrought aluminium alloy
- Material - Piston rod: High-alloy stainless steel
- Pneumatic connection: G3/8
- Ambient temperature: -5�C to 60�C
