FESTO DSBC-50-150-PPVA-N3 ISO CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DSBC-50-150-PPVA-N3
IMS Product Code: 2137039
Packaging: Sold Individually
Description:

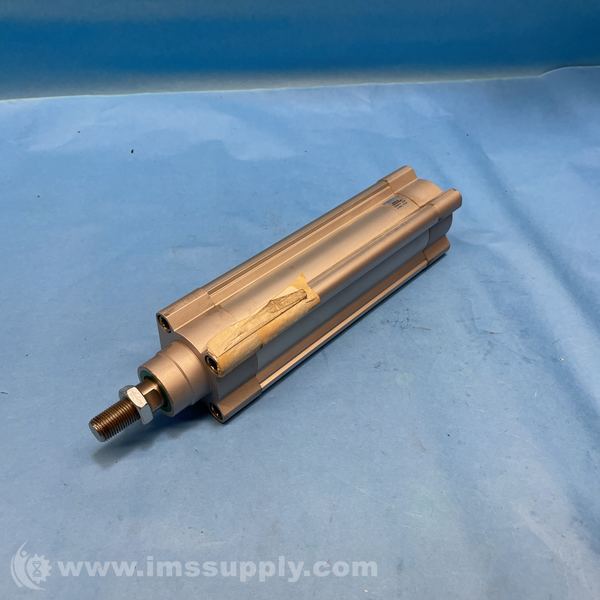

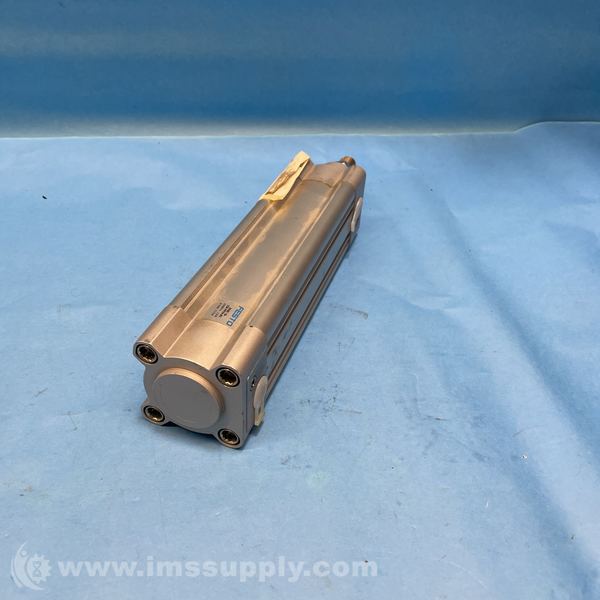

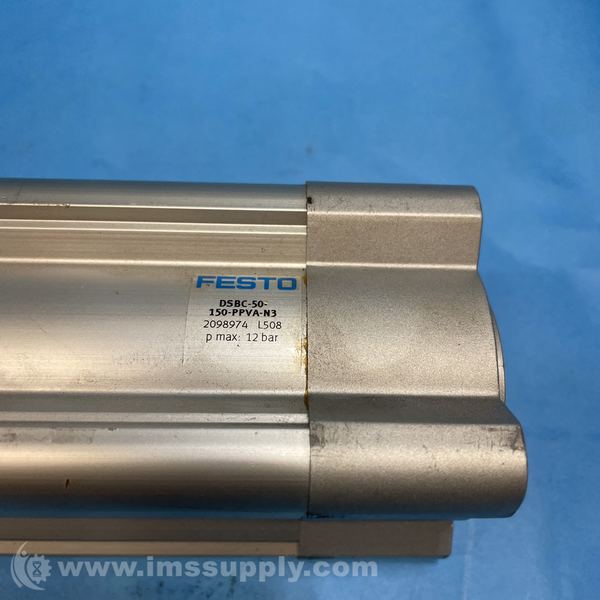

Festo DSBC-50-150-PPVA-N3 ISO Cylinder
Double-acting cylinder conforming to ISO 15552 with 50mm piston diameter and 150mm stroke. Features pneumatic cushioning adjustable at both ends.
Specifications
- Piston Diameter: 50 mm
- Stroke: 150 mm
- Piston Rod Thread: M16x1.5
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Mode of Operation: Double-acting
- Operating Pressure: 0.04-1.2 MPa (0.4-12 bar)
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class (CRC): 2 - Moderate corrosion stress
- Cleanroom Class: Class 6 according to ISO 14644-1
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Return Stroke: 990 N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Advance Stroke: 1178 N
- Moving Mass for 0 mm Stroke: 365 g
- Additional Moving Mass per 10 mm Stroke: 25 g
- Basic Weight for 0 mm Stroke: 1190 g
- Additional Weight per 10 mm Stroke: 56 g
- Type of Mounting: Either: via female thread or with accessories
- Material Cover: Die-cast aluminium, coated
- Material Piston Seal: TPE-U(PU)
- Material Piston: Wrought aluminium alloy
- Material Piston Rod: High-alloy steel
- Material Piston Rod Wiper: TPE-U(PU)
- Material Buffer Seal: TPE-U(PU)
- Material Cushioning Piston: POM
- Material Cylinder Barrel: Smooth-anodised wrought aluminium alloy
- Material Nut: Galvanised steel
- Material Bearing: POM
- Material Collar Screws: Galvanised steel
- Ambient Temperature: -20°C to 80°C
- Pneumatic Connection: G1/4
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
