FESTO DSNU-10-15-P-A ISO CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DSNU-10-15-P-A
IMS Product Code: 1803068
Packaging: Sold Individually
Description:

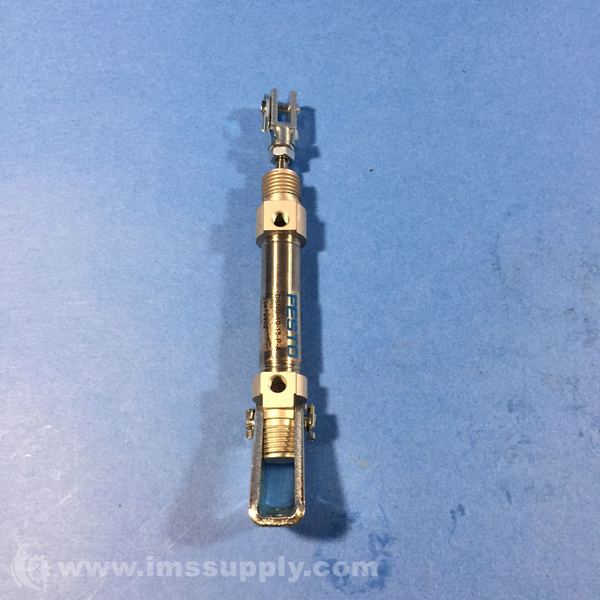

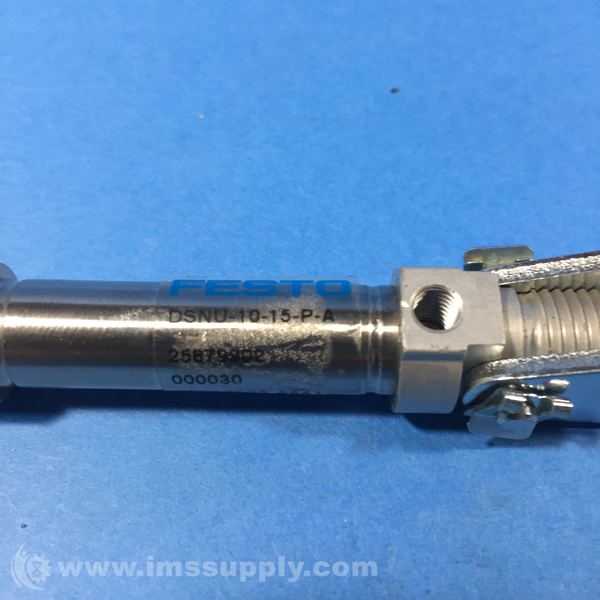

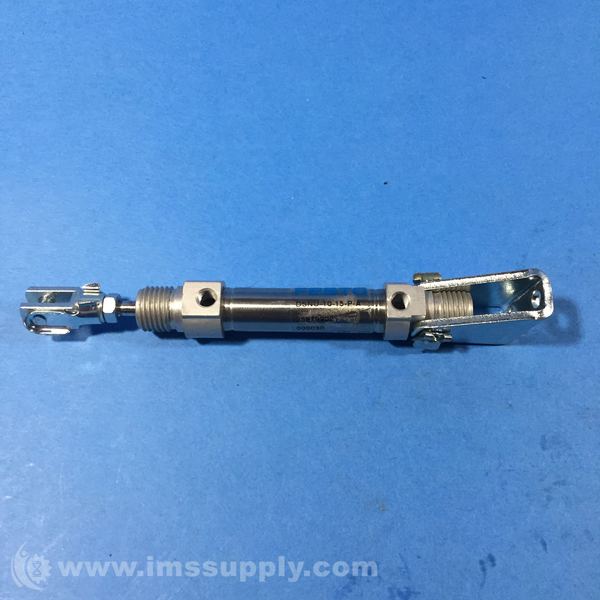

Festo DSNU-10-15-P-A ISO Cylinder
Double-acting cylinder to ISO 6432 standards with 10mm piston diameter, 15mm stroke, and elastic cushioning rings/plates on both sides.
Specifications
- Stroke: 15 mm
- Piston Diameter: 10 mm
- Piston Rod Thread: M4
- Cushioning: Elastic cushioning rings/plates at both ends
- Mode of Operation: Double-acting
- Operating Pressure: 0.15MPA to 10BAR
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 2 - Moderate
- Cleanroom Class: Class 6 according to ISO 14644-1
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Advance Stroke: 47.1 N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Return Stroke: 39.6 N
- Material Cover: Wrought aluminium alloy, Colourless anodised
- Material Seals: NBR, TPE-U(PU)
- Material Piston Rod: High-alloy stainless steel
- Material Cylinder Barrel: High-alloy stainless steel
- Ambient Temperature: -20°C to 80°C
- Pneumatic Connection: M5
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
