FESTO DSNU-16-20-PPV-A ROUNDLINE CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DSNU-16-20-PPV-A
IMS Product Code: 2155346
Packaging: Sold Individually
Description:

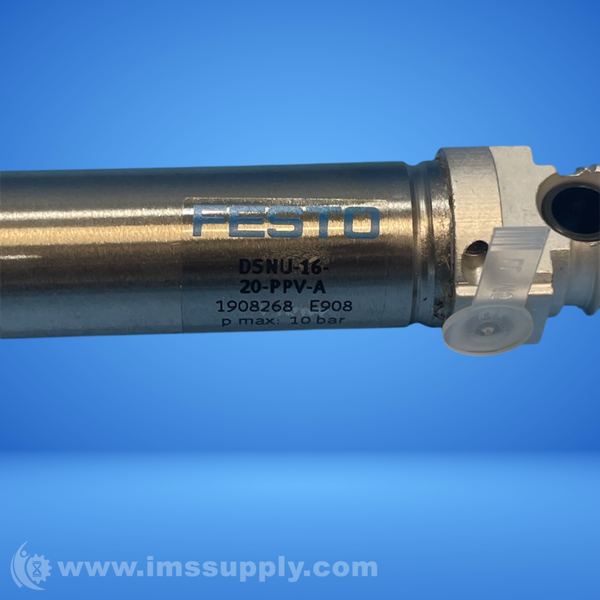

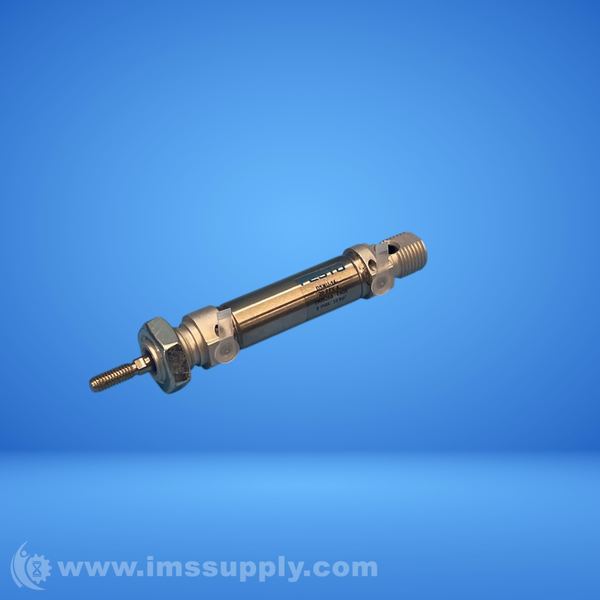

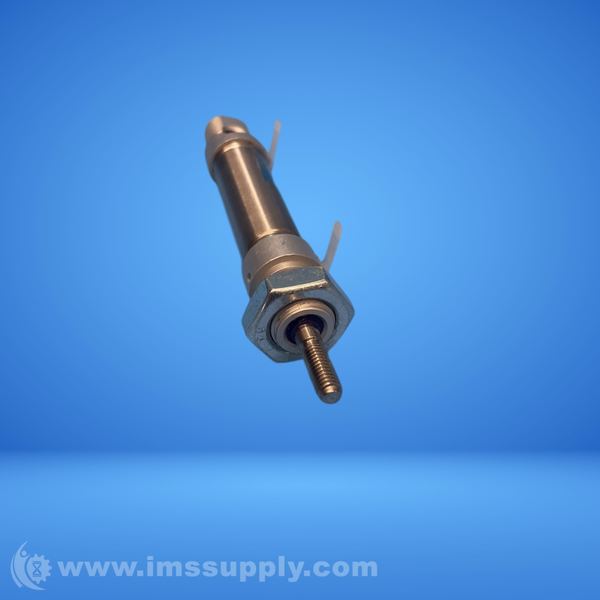

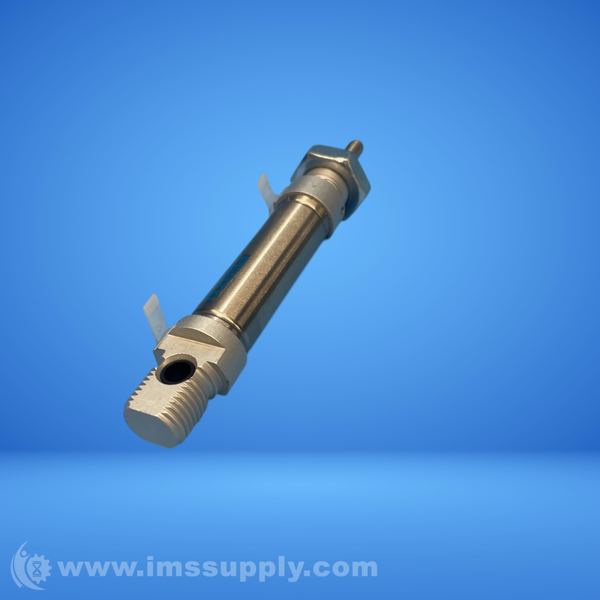

Festo DSNU-16-20-PPV-A Roundline Cylinder
Double-acting roundline cylinder with 16mm bore diameter and 20mm stroke, featuring pneumatic cushioning adjustable at both ends and proximity sensing capability.
Specifications
- Stroke: 20 mm
- Piston Diameter: 16 mm
- Piston Rod Thread: M6
- Cushioning: PPV: Pneumatic Cushioning Adjustable At Both Ends
- Operating Pressure: 0.1 ... 1 MPa
- Mode of Operation: double-acting
- Pneumatic Connection: M5
- Design Structure: piston
- Position Sensing: for proximity sensor
- Operating Medium: Filtered compressed air, lubricated or unlubricated
- Corrosion Resistance Class: 2
- Ambient Temperature: -20 ... 80 degrees C
- Work Pressure (PN): 1 - 10 bar
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
