FESTO DSNU-8-20-P-A PNEUMATIC CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DSNU-8-20-P-A
IMS Product Code: 1803067
Packaging: Sold Individually
Description:

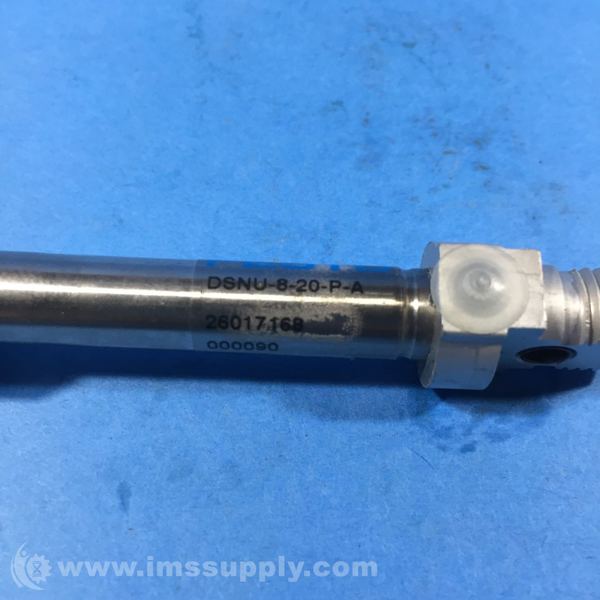

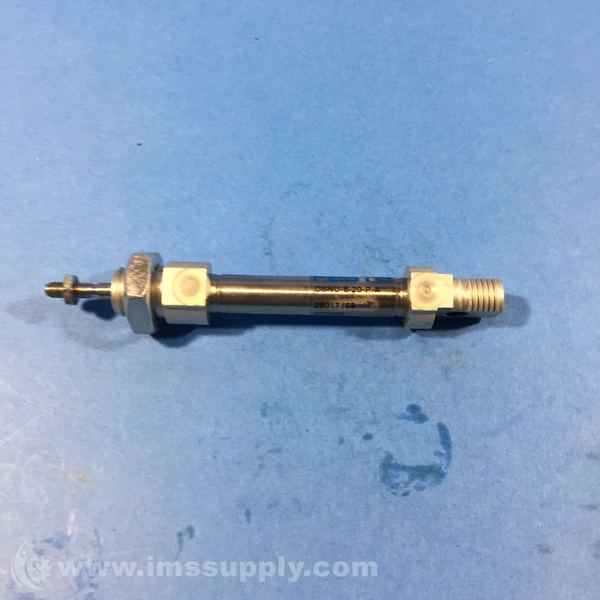

Festo DSNU-8-20-P-A Pneumatic Cylinder
Double-acting pneumatic cylinder based on ISO 6432, with elastic cushioning rings/plates at both ends.
Specifications
- Mode of operation: double-acting
- Piston diameter: 8 mm
- Stroke: 20 mm
- Cushioning: Elastic cushioning rings/plates at both ends
- Position sensing: For proximity sensor
- Piston rod type: At one end
- Piston rod thread type: Male thread
- Material cylinder barrel: High-alloy stainless steel
- Material seals: NBR TPE-U(PU)
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Operating pressure: 1.5 bar ... 10 bar
- Ambient temperature: -20 degrees C ... 80 degrees C
- Corrosion resistance class CRC: 2 - Moderate corrosion stress
- Pneumatic connection: M5
- Assembly position: Any
- Theoretical force at 0.6 MPa: 30 N
- Moving mass: 21 g
- Product weight: 120 g
- Type of mounting: With through-hole
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 9 In Stock
