FESTO DZH-25-50-PPV-A PNEUMATIC CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DZH-25-50-PPV-A
IMS Product Code: 1820323
Packaging: Sold Individually
Description:

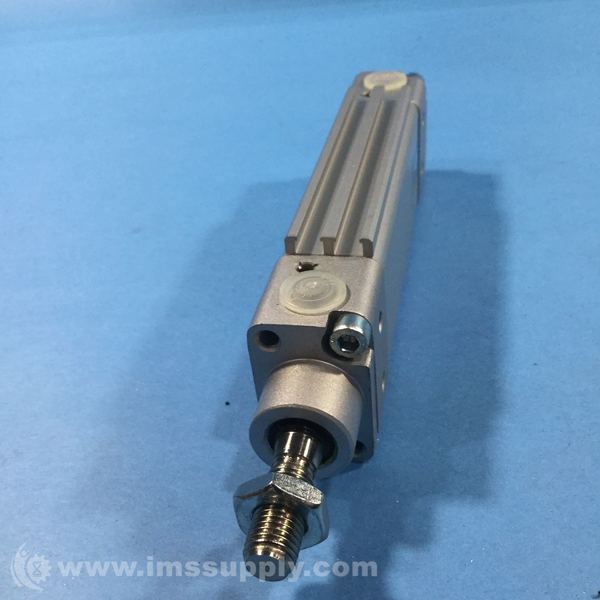

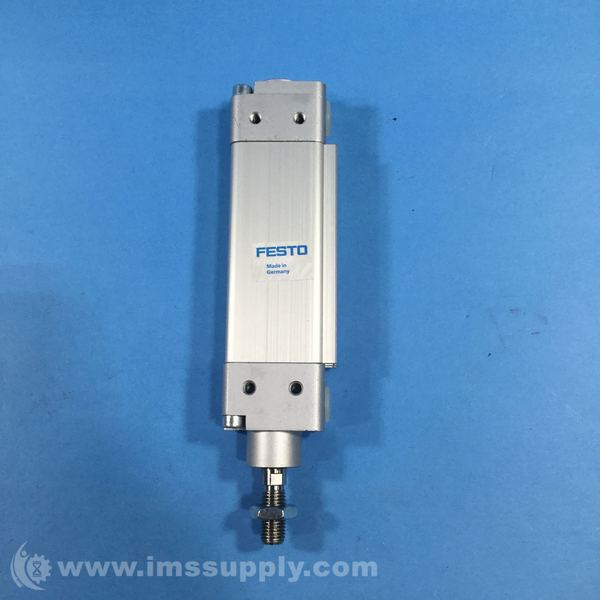

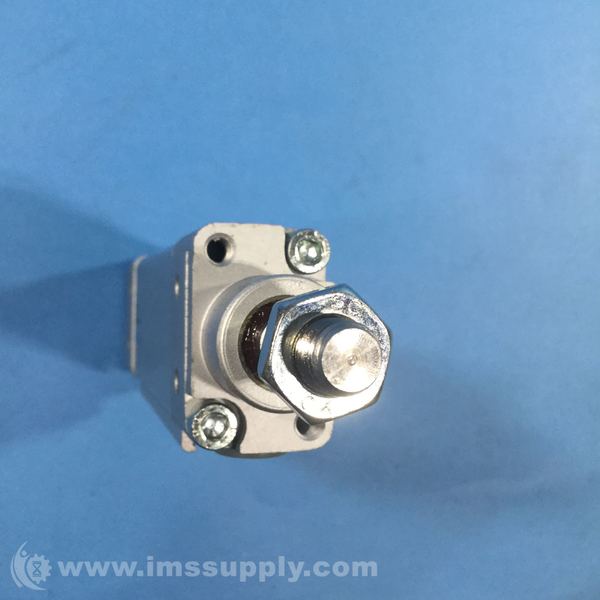

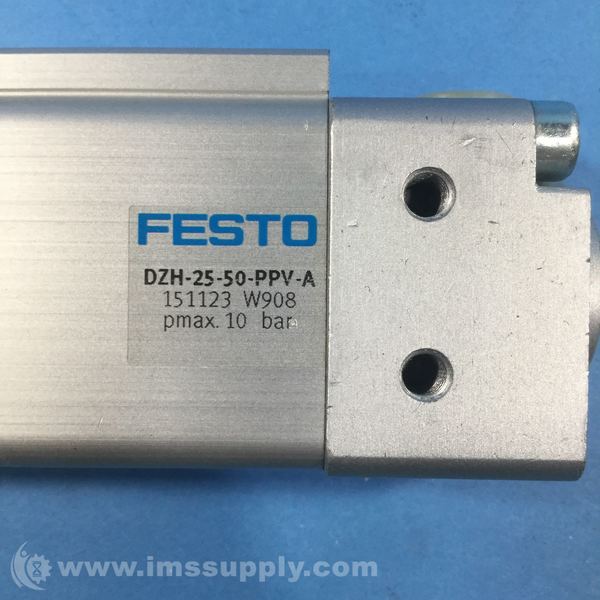

Festo DZH-25-50-PPV-A Pneumatic Cylinder
Double-acting cylinder with adjustable cushioning and anti-rotation feature by oval piston.
Specifications
- Stroke: 50 mm
- Piston diameter: 25 mm
- Max. angle of rotation of the piston rod +/-: 2.4 deg
- Type code: DZH
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Mounting position: Any
- Mode of operation: Double-acting
- Design: PistonPiston rod
- Position sensing: For proximity sensor
- Symbol: 991235
- Protection against torsion/guide: Oval piston
- Operating pressure: 1 bar … 10 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC): 2 – Moderate corrosion stress
- Ambient temperature: -20 degrees C … 80 degrees C
- Cushioning length: 17 mm
- Max. torque for protection against rotation: 0.8 Nm
- Theoretical force at 6 bar, retracting: 247 N
- Theoretical force at 6 bar, advancing: 295 N
- Additional weight per 10 mm stroke: 21 g
- Basic weight with 0 mm stroke: 330 g
- Type of mounting: Optionally:With internal threadWith accessories
- Cover material: Aluminum
- Seals material: TPE-U(PU)
- Housing material: Aluminum
- Piston rod material: High-alloy steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
