FESTO FENG-40-500-KF GUIDE UNIT
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: FENG-40-500-KF
IMS Product Code: 1756392
Packaging: Sold Individually
Description:

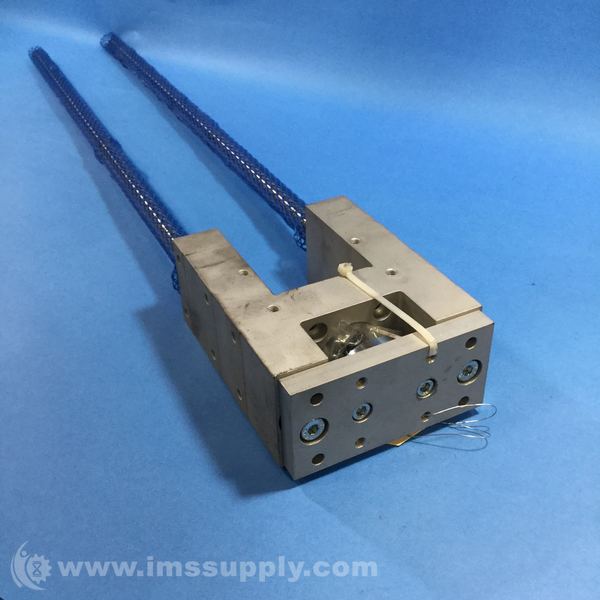

Festo FENG-40-500-KF Guide Unit
Guide unit with recirculating ball bearing guide, serves for protection against rotation, provides high accuracy of guidance. Size=40, stroke=500 mm.
Specifications
- Series: FENG
- Size: 40
- Stroke: 500 mm
- Guide: KF
- Mounting position: optional
- Design: Guidance
- Ambient temperature: -20 degrees C to 80 degrees C
- Max. force Fy static: 1260 N
- Max. force Fz static: 1260 N
- Max. torque Mx static: 55 Nm
- Max. torque My static: 65 Nm
- Max. torque Mz static: 65 Nm
- Product weight: 3970 g
- Material housing: Anodised wrought aluminium alloy
- Guide type: Recirculating ball bearing guide
- Max. force Fy: 1000 N
- Max. force Fz: 1000 N
- Max. moment Mx: 44 Nm
- Max. moment My: 52 Nm
- Max. moment Mz: 52 Nm
- Displacement force: 15 N
- Type of mounting: Via female thread
- Material guide component: Tempered steel
- Material yoke plate: Anodised wrought aluminium alloy
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
