FESTO FENG-50-50-KF GUIDE UNIT
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: FENG-50-50-KF
IMS Product Code: 1815912
Packaging: Sold Individually
Description:

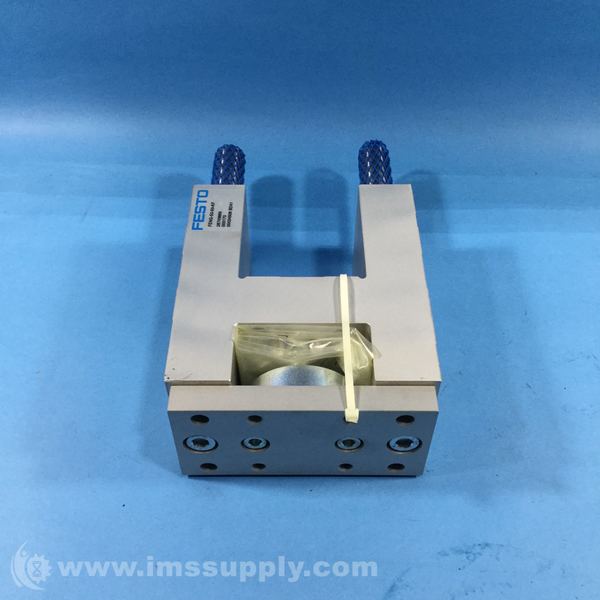

Festo FENG-50-50-KF Guide Unit
Festo guided cylinder FENG series. Guide unit with ball guide construction.
Specifications
- Stroke Length: 50 mm
- Bore Size: 63 mm
- Weight: 4280 g
- Series: FENG
- Stroke: 50 mm
- Installation Position: arbitrary
- Guide: ball guide
- Max. force Fy: 1.260 N
- Max. force Fy static: 1.600 N
- Max. force Fz: 1.260 N
- Max. force Fz static: 1.600 N
- Max. torque Mx: 65 Nm
- Max. torque Mx static: 83 Nm
- Max. torque My: 70 Nm
- Max. torque My static: 89 Nm
- Max. torque Mz: 70 Nm
- Max. torque Mz static: 89 Nm
- Pushing force: 15 N
- Product weight: 4.275 g
- Fastening type: with female thread
- Material information: Copper and PTFE-free, RoHs compliant
- Guide element material: Quenched and tempered steel
- Housing material: Aluminium wrought alloy, anodised
- Joch plate material: Aluminium wrought alloy, anodised
- Ambient temperature: -20 to 80 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
