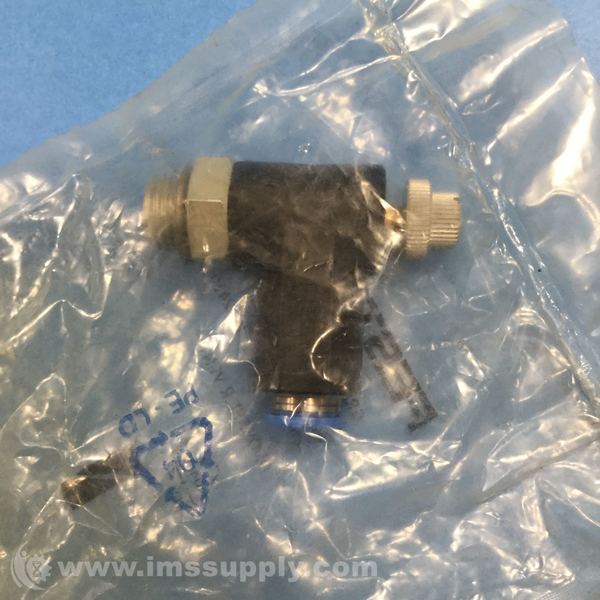

FESTO GRLA-1/4-QS-8-RS-B ONE WAY FLOW CONTROL VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: GRLA-1/4-QS-8-RS-B
IMS Product Code: 1820681
Packaging: Sold Individually
Description:
Festo GRLA-1/4-QS-8-RS-B One Way Flow Control Valve
One-way flow control valve with elbow outlet, Series B generation. Controls compressed air flow in one direction while allowing free flow in the opposite direction. Features a push-in connector (8mm) and male thread (G1/4). Constructed with brass trim and NBR softgoods. Adjustable via knurled screw.
Specifications
- Series: GRLA
- Port Size: QS-8 (Port 1)/G1/4 (Port 2)
- Pressure Rating: 0.2 to 10 bar
- Temperature Rating: -10 to 60 degrees C
- Flow Rate: 650 Lpm (flow control)/600 to 750 Lpm (non-return)
- Media: Compressed Air
- Trim Material: Brass
- Softgoods Material: NBR
- Dimensions: 39.6 mm L x 17.8 mm W x 54.2 mm H
- Weight: 0.04 kgs
- Pneumatic Connection 1: Push-in connector 8MM
- Pneumatic Connection: Male Thread G1/4
- Adjusting Component: Knurled Screw
- Generation: Series B
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
