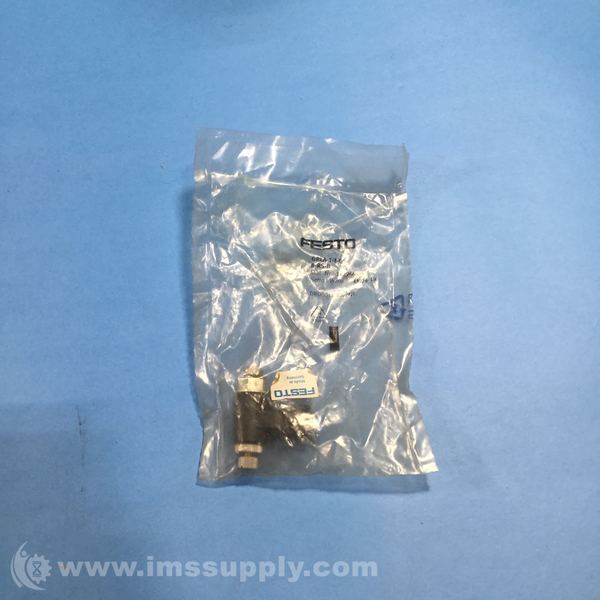

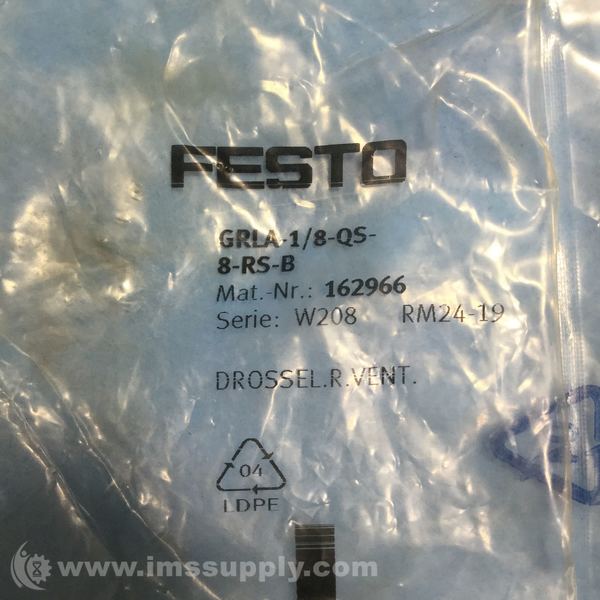

FESTO GRLA-1/8-QS-8-RS-B ONE-WAY FLOW CONTROL VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: GRLA-1/8-QS-8-RS-B
IMS Product Code: 1820678
Packaging: Sold Individually
Description:
Festo GRLA-1/8-QS-8-RS-B One-Way Flow Control Valve
One-way flow control valve with pneumatic connections QS-8 and G1/8, manual actuation via knurled screw.
Specifications
- Series: GRLA
- Pneumatic connection: 1/8
- Pneumatic connection 1: QS-8
- Adjusting component: RS
- Flow rate characteristic: None
- Generation: B
- Material swivel fitting: PBT-reinforced
- Material knurled head: Wrought aluminium alloy
- Material seals: NBR TPE-U(PU)
- Material screw-in stud: Wrought aluminium alloy
- Permissible actuation moment, regulating screw: 0.4 Nm
- Nominal torque: 3.5 Nm
- Storage temperature: -10 degrees C ... 40 degrees C
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi): 1,080 l/min
- Symbol: 00991452
- Standard nominal flow rate in blocked direction: 600 l/min ... 750 l/min
- Type of mounting: Screw-in
- Type of actuation: Manual
- Pneumatic connection, port 1: QS-8
- Material adjusting screw: Brass
- Material release ring: POM
- Note on materials: RoHS-compliant
- Product weight: 25 g
- Tolerance for nominal tightening torque: +/- 20%
- Media temperature: -10 degrees C ... 60 degrees C
- Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
- Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi): 800 l/min ... 1,250 l/min
- Operating pressure complete temperature range: 0.2 bar ... 10 bar
- Mounting position: optional
- Ambient temperature: -10 degrees C ... 60 degrees C
- Standard nominal flow rate in flow control direction: 650 l/min
- Adjustment component: Knurled screw
- Pneumatic connection, port 2: G1/8
- Valve function: Exhaust air one-way flow control function
