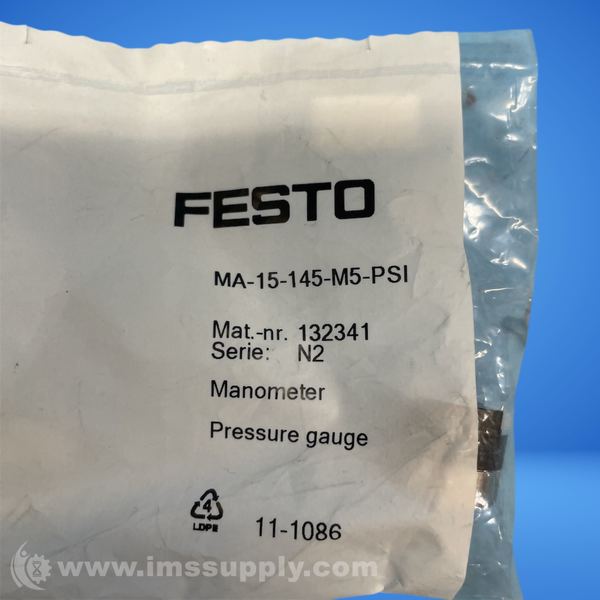

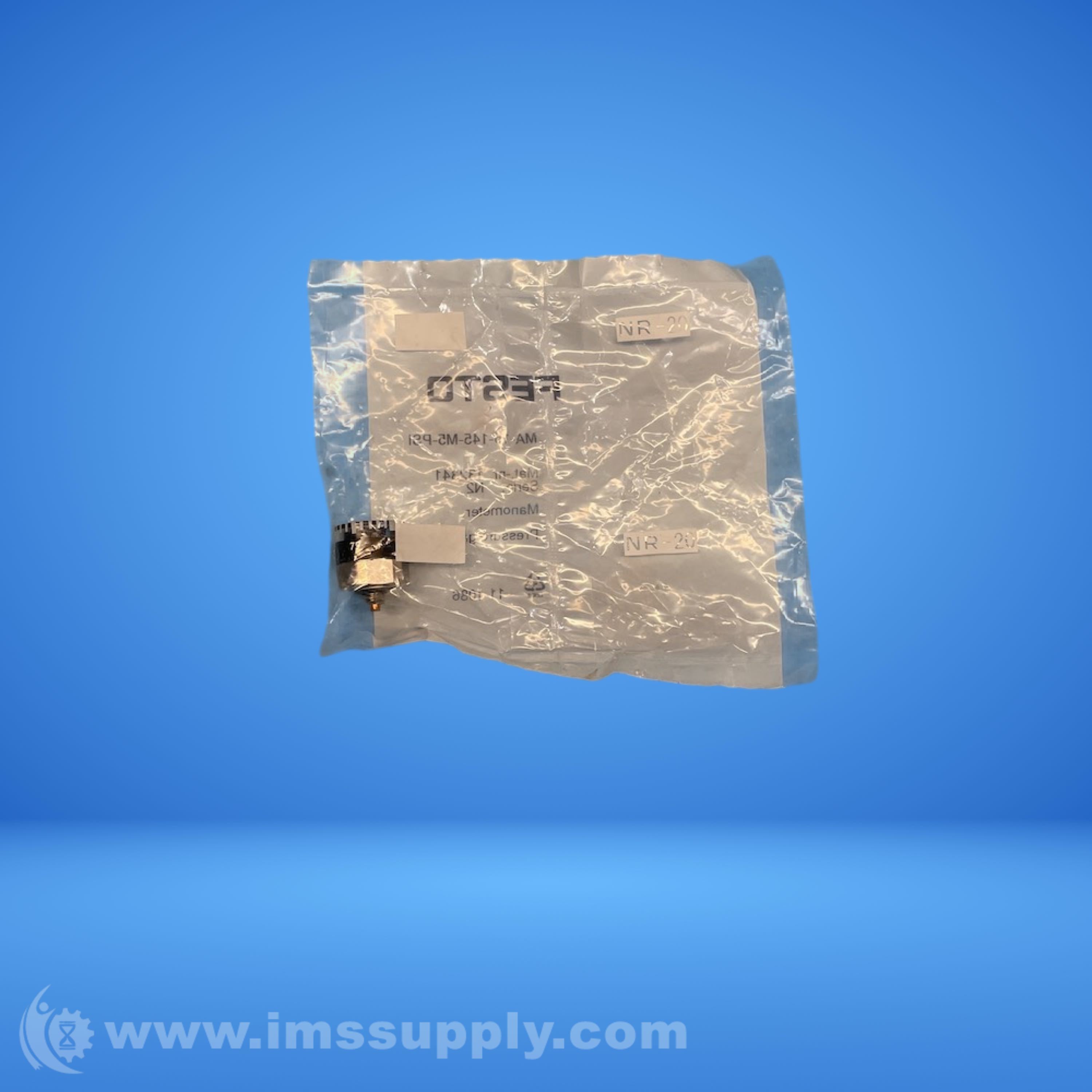

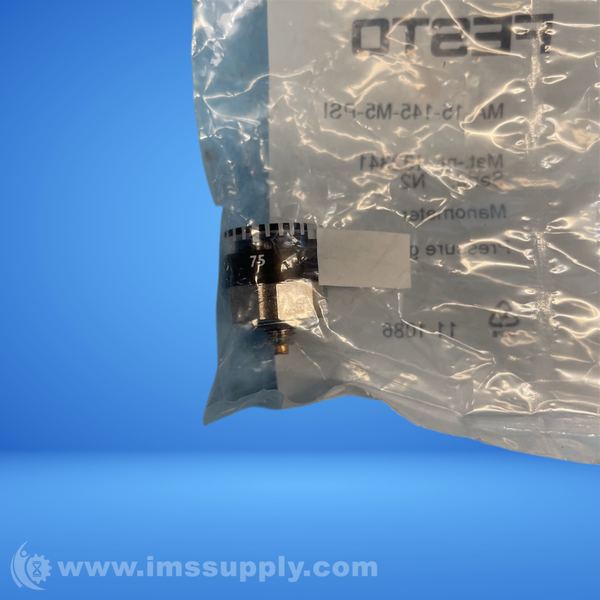

FESTO MA-15-145-M5-PSI PRESSURE GAUGE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: MA-15-145-M5-PSI
IMS Product Code: 2161334
Packaging: Sold Individually
Description:
Festo MA-15-145-M5-PSI Pressure Gauge
Pressure gauge with display in psi, indicating range 0-145 psi, Bourdon tube design, line installation mounting, M5 pneumatic connection.
Specifications
- Display range: 0 psi � 145 psi
- Pressure gauge nominal size: 15
- Structural design: Bourdon tube pressure gauge without measuring mechanism
- Type of mounting: Line installation
- Operating medium: Inert gas | Neutral liquids
- Operating pressure: 0 psi � 145 psi
- Measurement accuracy class: 5
- Degree of protection: IP53
- Temperature of medium: -20 degrees C � 60 degrees C
- Ambient temperature: -20 degrees C � 60 degrees C
- Pneumatic connection: M5
- Material of screwed plug: Brass
- Housing material: Steel
- Inspection window material: PC
- Housing colour: Black
- Product weight: 10 g
- Scale: Single scale, psi (external)
- Dimensions: 1.968504 � 1.574803 � 0.787402 in
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 12 In Stock
Ships today if ordered in the next 7 hours and 4 minutes.
