FESTO NPQH-D-Q6-Q4-P10 TUBE REDUCER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: NPQH-D-Q6-Q4-P10
IMS Product Code: 2127497
Packaging: Pack of 5
Description:

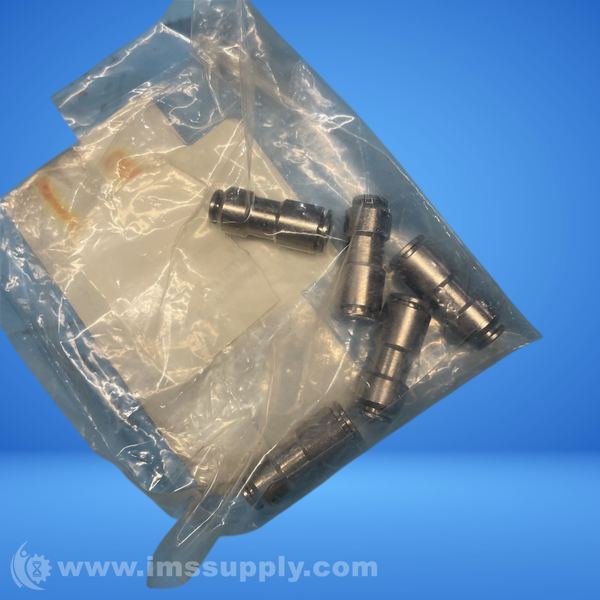

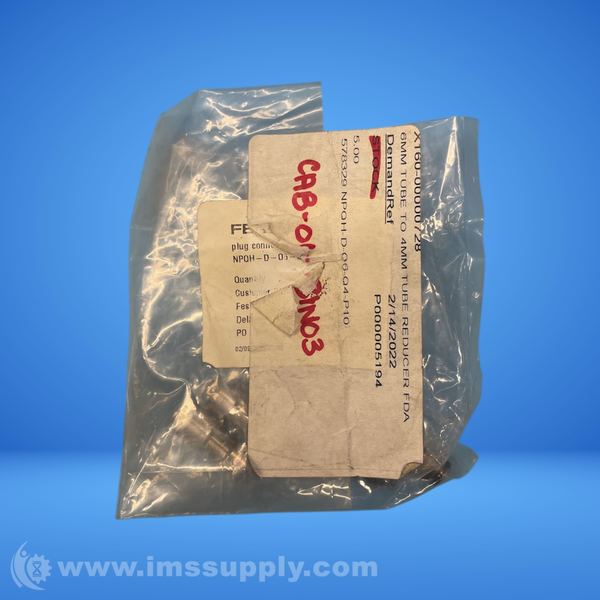

Festo NPQH-D-Q6-Q4-P10 Tube Reducer
Tube reducer for pneumatic applications, reducing 6mm to 4mm tubing.
Specifications
- Nominal Diameter: 6 mm
- Connection Type: QS
- Pressure Control Range: 0...10 bar
- Size: 3
- Mounting Position: optional
- Pneumatic Connection: For tubing outside diameter of 6 mm
- Weight: 14.90g
- Design: Push-pull principle
- Pneumatic Connection, Port 2: For tubing outside diameter of 4 mm
- Material Housing: Nickel-plated brass
- Material Tubing Seal: FPM
- Nominal Size: 3 mm
- Operating Pressure: -0.95 bar ... 20 bar
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion Resistance Class CRC: 3 - high corrosion stress
- Ambient Temperature: 0 degrees C ... 150 degrees C
- Material Release Ring: Nickel-plated brass
- Material Tubing Clamp Component: High-alloy stainless steel
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
