FESTO NPQH-Y-Q8-E-P10 PUSH-IN Y-CONNECTOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: NPQH-Y-Q8-E-P10
IMS Product Code: 2147535
Packaging: Pack of 6
Description:

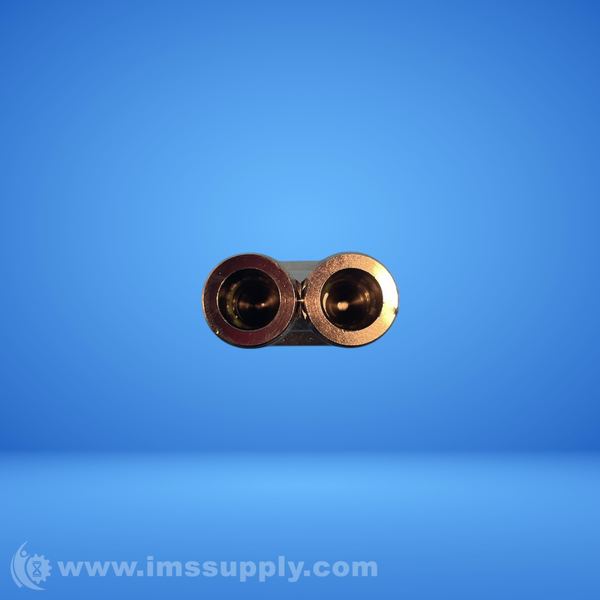

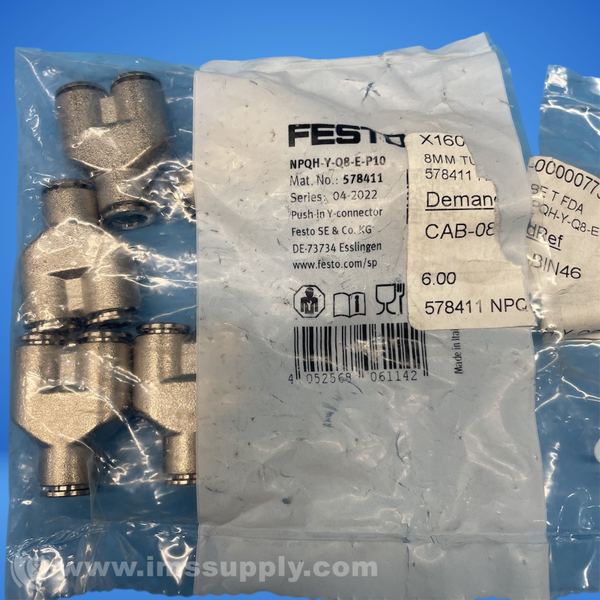

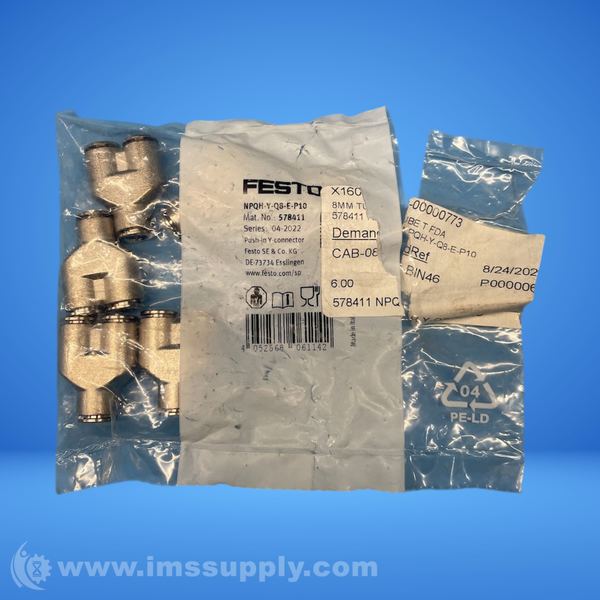

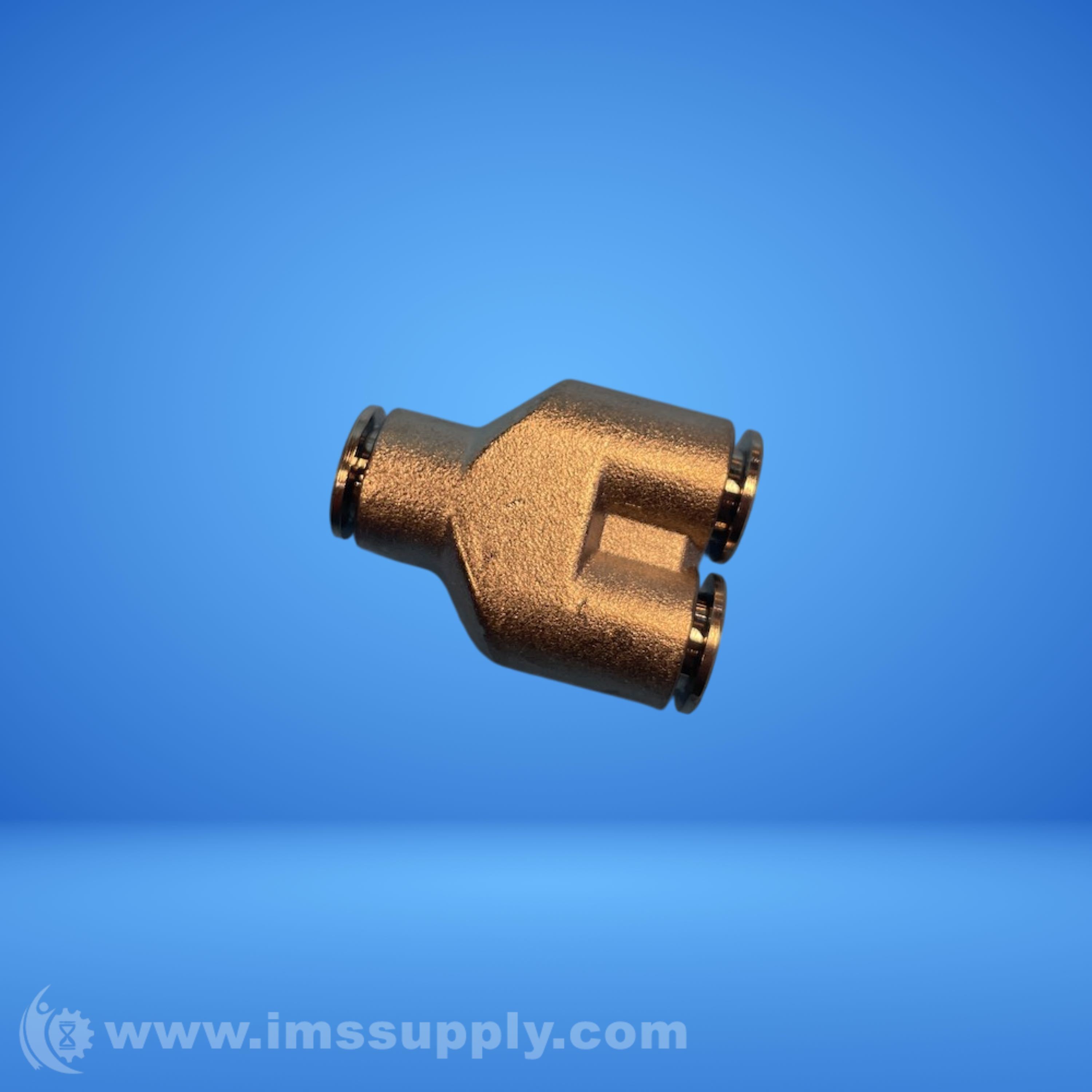

Festo NPQH-Y-Q8-E-P10 Push-in Y-Connector
Pneumatic Y-connector for tubing outer diameter of 8 mm, made of nickel-plated brass.
Specifications
- Size: 7.50 mm
- Mounting Position: Optional
- Pneumatic Connection: For tubing outer diameter of 8 mm
- Weight: 44.90 g
- Design: Push-pull principle
- Material Housing: Nickel-plated brass
- Material Tubing Seal: FPM
- Nominal Size: 7.5 mm
- Operating Pressure: -0.95 bar to 20 bar
- Operating Medium: Compressed air to ISO 8573-1:2010
- Corrosion Resistance Class: 3 - high corrosion stress
- Ambient Temperature: 0 to 150 degrees C
- Note on Materials: RoHS-compliant
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 20 minutes.
