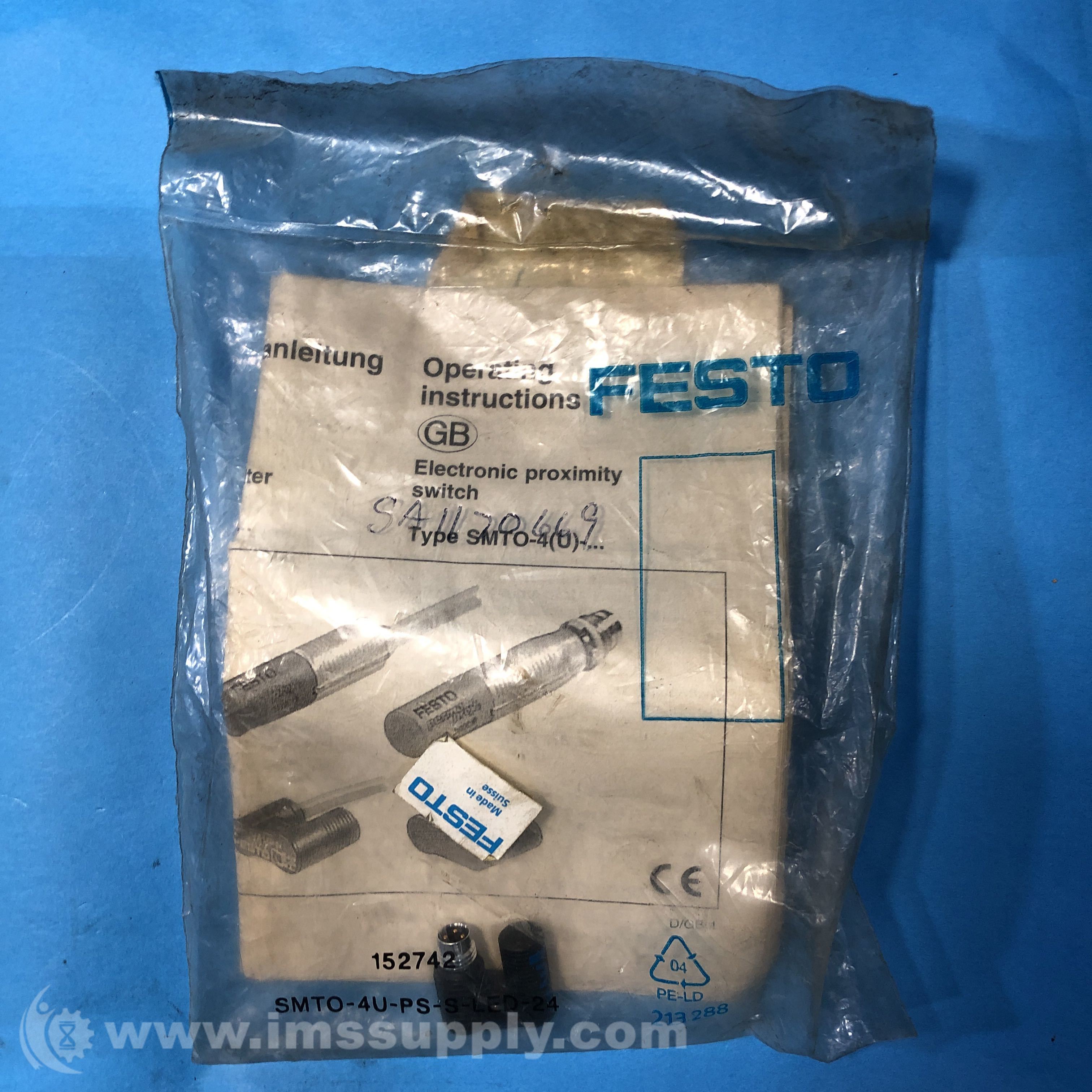

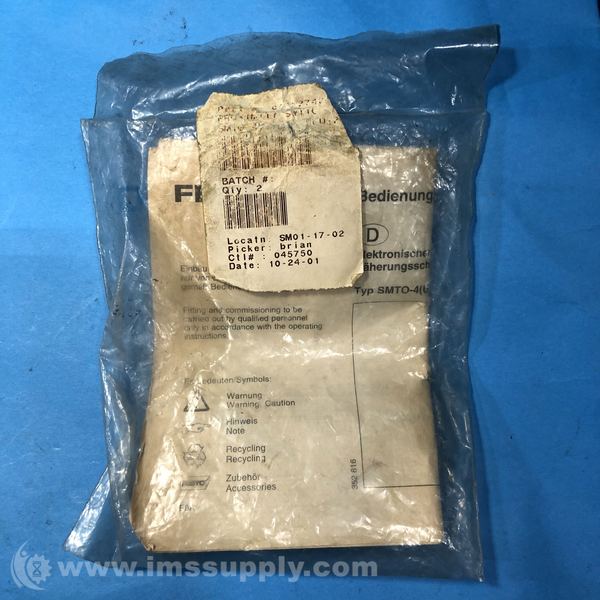

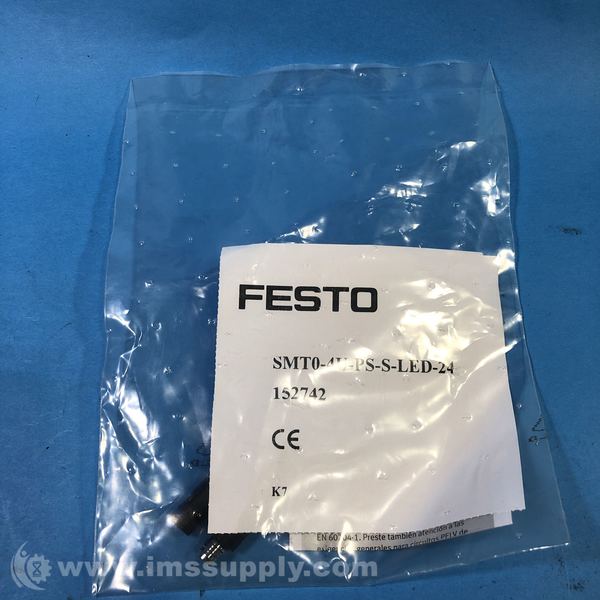

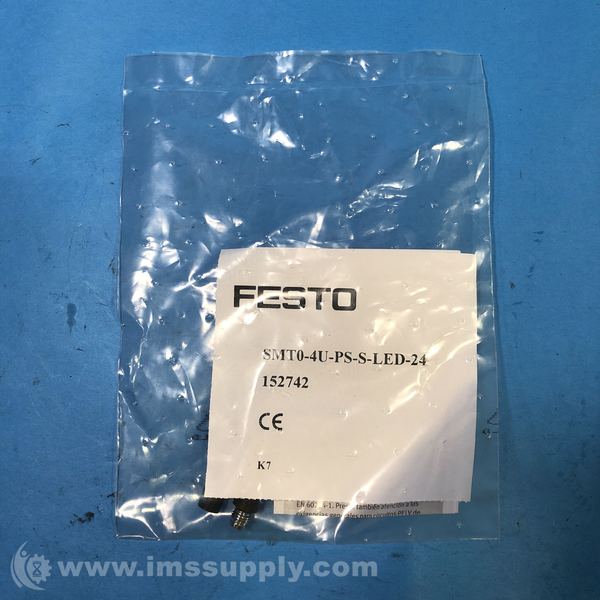

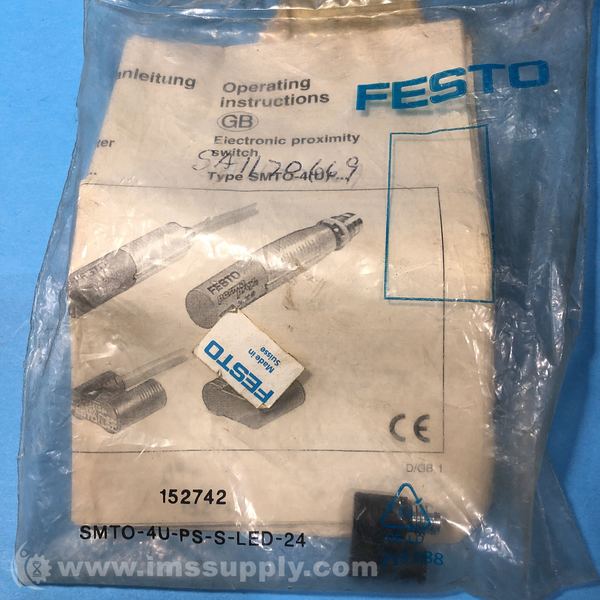

FESTO SMTO-4U-PS-S-LED-24 PROXIMITY SENSOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: SMTO-4U-PS-S-LED-24
IMS Product Code: 1913595
Packaging: Sold Individually
Description:
Festo SMTO-4U-PS-S-LED-24 Proximity Sensor
Festo proximity sensor with LED and integrated protective circuit, magneto-inductive sensing method, PNP output, normally open contact configuration, 24 VDC, 200 mA, 3-pin M8 x 1 plug connection.
Specifications
- Series: SMTO-4U
- Sensing Method: Magneto Inductive
- Number of Wires: 3
- Output Type: PNP
- Contact Configuration: NO
- Voltage Rating: 24 VDC
- Amperage Rating: 200 mA
- Connection Type: 3-Pin M8 x 1 Plug
- Size: 34 mm L x 23 mm H
- Enclosure Type: IP67
- Temperature Rating: -25 to 70 degrees C
- Material: Polyamide/PET/PUR
- Weight: 6g
- Switching Status Indication: Yellow LED
- Housing Colour: Black
- Mounting Type: With accessories
- Connection Outlet Orientation: In-line
- Electrical Connection: M8x1, A-coded
- Reverse Polarity Protection: For all electrical connections
- Operational Voltage Range DC: 10 V ... 30 V
- Short Circuit Current Rating: Pulsed
- Min. Load Current: 0.1 mA
- Voltage Drop: = 2 V
- Max. Output Current: 200 mA
- Switch-on Time: 0.5 ms
- Switching Output: PNP
- Ambient Temperature: -25 °C ... 70 °C
- Measured Variable: Position
- CE Marking: To UK instructions for EMC To UK RoHS instructions
- Approval: RCM trademark
- Based on Standard: EN 60947-5-2
- Degree of Protection: IP67
- Material Housing: PA PET PUR
- Product Weight: 6 g
- Max. Tightening Torque: 0.8 Nm
- Material Electrical Contact: Gold-plated brass
- Residual Ripple: 10 %
- Overload Protection: Available
- Off-state Current: = 0.01 mA
- Inductive Protective Circuit: Integrated
- Max. Switching Capacity DC: 6 W
- Switch-off Time: 0.5 ms
- Switching Element Function: N/O contact
- Repetition Accuracy: 0.2 mm
- Measuring Principle: Magneto-inductive
- RoHS Compliant: Yes
