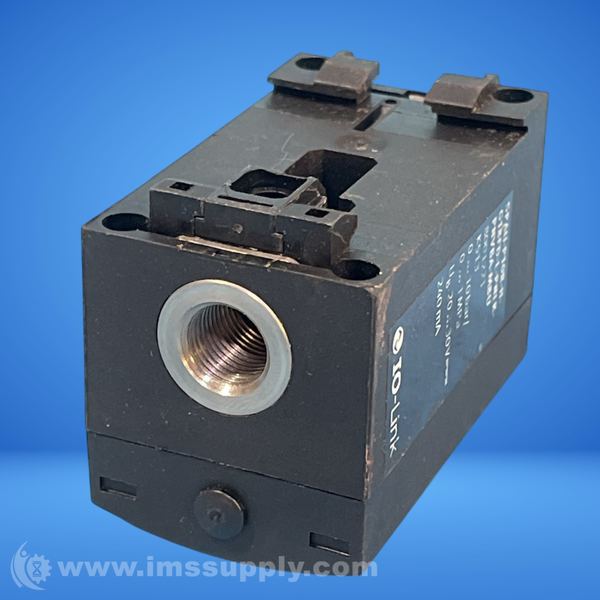

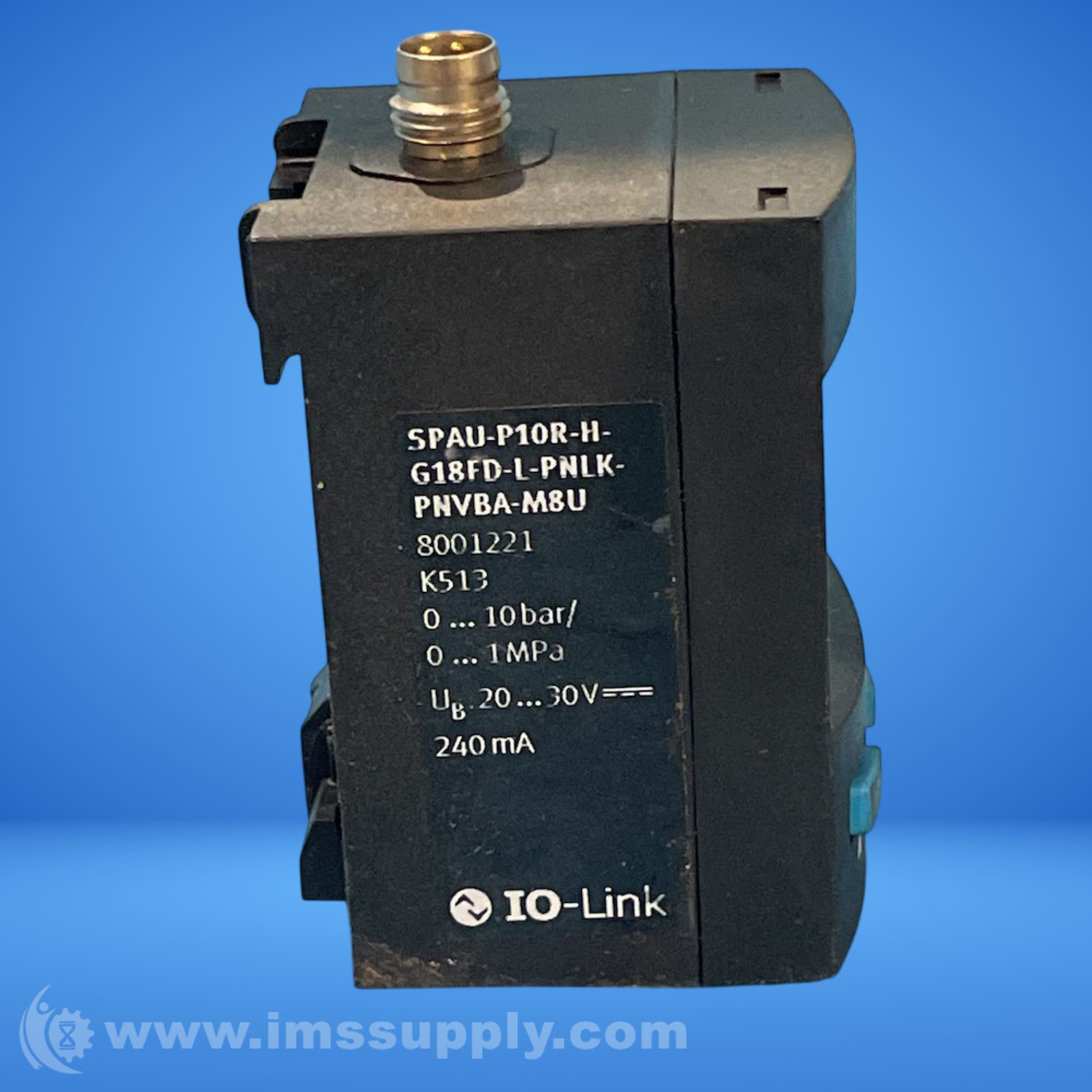

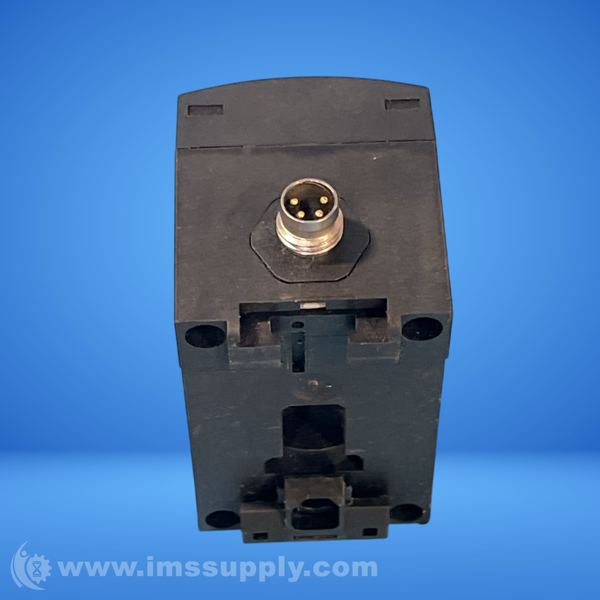

FESTO SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U PRESSURE SENSOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U
IMS Product Code: 2153797
Packaging: Sold Individually
Description:
Festo SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U Pressure Sensor
Relative pressure sensor for 0 to 10bar pressure range with G1/8 connection.
Specifications
- Type: Pressure Sensor
- Series: SPAU
- Sensing Range: 0 to 10 Bars
- Output: PNP or NPN
- Voltage Rating: 20 to 30 VDC
- Amperage Rating: 100 Ma
- Connection Size: M8x1
- Temperature Rating: 0 to 50 deg C
- Material: PA-Reinforced
- Dimensions: 70.2 mm L x 32 mm W x 29.8 mm H
- Measured Variable: Relative pressure
- Measurement Method: Piezoresistive pressure sensor
- Pressure Measuring Range Start: 0 MPA, 0 BAR, 0 PSI
- Pressure Measuring Range End: 1 MPA, 10 BAR, 145 PSI
- Overload Pressure: 15 BAR, 1.5 MPA, 217.5 PSI
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
- Media Temperature: 0°C to 50°C
- Resolution: 12 BIT
- Accuracy: ±1.5% FS
- Repetition Accuracy: ±0.3% FS
- Temperature Coefficient: ±0.05% FS/K
- Switching Output: 2 x PNP or 2 x NPN, switchable
- Switching Function: Freely programmable
- Switching Element Function: N/C or N/O contact, switchable
- Max Output Current: 100 MA
- Analogue Output: 0 - 10 V, 4 - 20 mA, 1 - 5 V
- Rise Time: 3 MS
- Max Load Resistance Current Output: 500 OHM
- Min Load Resistance Voltage Output: 10 KOHM
- Short Circuit Protection: Yes
- IO-Link Protocol: Device V 1.1
- IO-Link Profile: Smart sensor profile
- IO-Link Function Classes: Binary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel
- IO-Link Communication Mode: COM2 (38.4 kBaud)
- IO-Link sIO-Mode Support: Yes
- IO-Link Port Class: A
- IO-Link Process Data Length OUT: 0 bytes
- IO-Link Process Data Length IN: 2 bytes
- IO-Link Process Data Content IN: 14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring)
- IO-Link Min Cycle Time: 3 ms
- IO-Link Data Storage Required: 500 KB
- Operational Voltage Range DC: 20V to 30V
- Reverse Polarity Protection: Yes
- Electrical Connection 1: Plugs, M8x1, A-coded, 4 pins
- Connection Pattern: 991171
- Mounting Type: H-rail, Optional mounting position
- Product Weight: 70 g
- Display Type: Illuminated LCD
- Displayable Units: MPa, Bar, InH2O, InHg, KPa, Kgf/cm², MmHg, Psi
- Setting Options: IO-Link, Teach-in, Via display and keys
- Protection Against Tampering: IO-Link, PIN code
- Setting Range Threshold Value: 0% to 100%
- Setting Range Hysteresis: 0% to 90%
- Degree of Protection: IP65, IP67
- Corrosion Resistance Class CRC: 2 - Moderate corrosion stress
- Conformity: VDMA24364-B1/B2-L lABS (PWIS)
- Ambient Temperature: 0°C to 50°C
- Pneumatic Connection: G1/8
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
